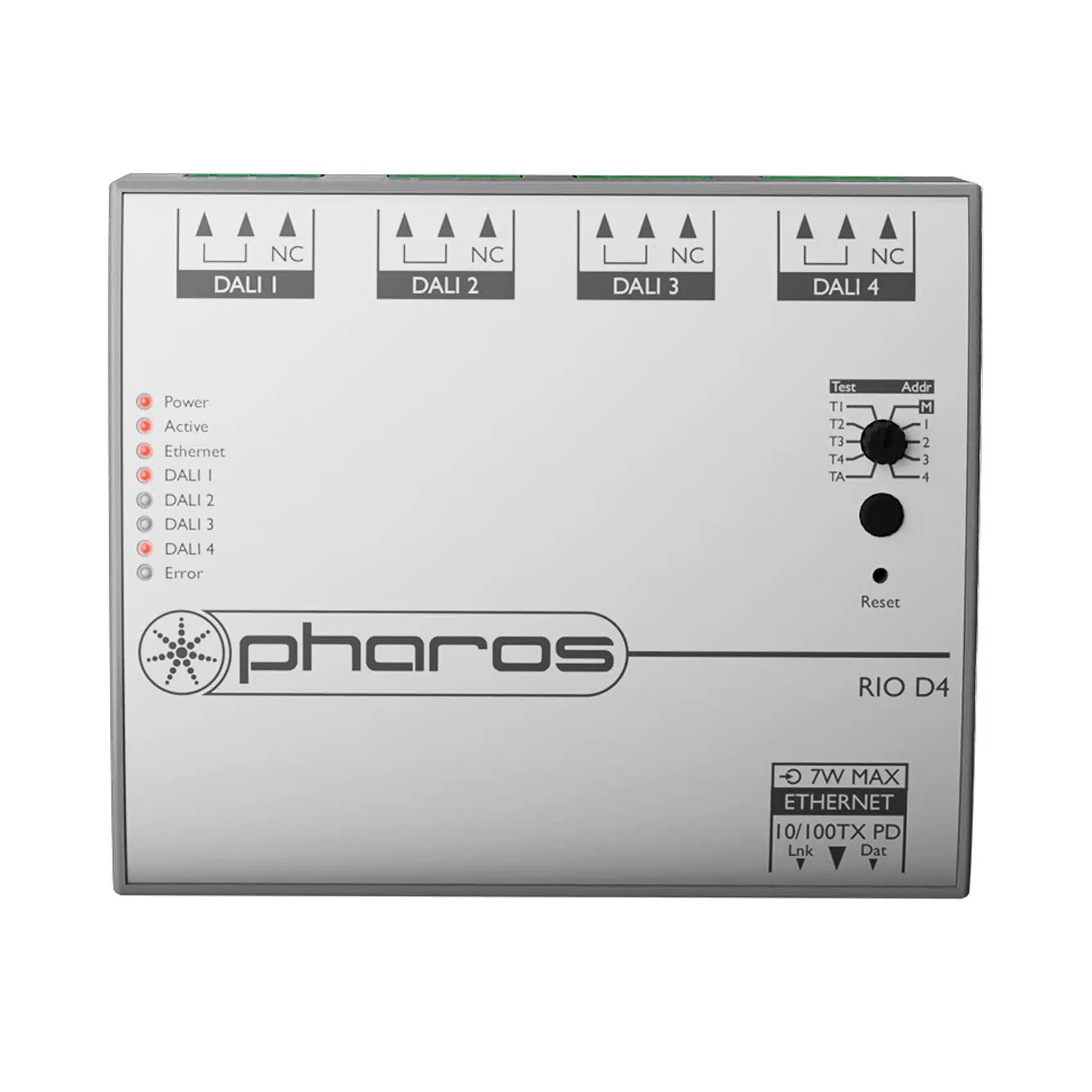

Pharos RIO D4 – Remote DALI 4-Port
The Pharos RIO D4 (Remote DALI 4-Port) is a remote input/output device that offers a convenient and scalable solution for controlling DALI fixtures and ballasts from Pharos controllers while simultaneously receiving DALI commands.
The Pharos RIO D4 is compatible with Pharos Designer controllers operating at version 2.15.1 or later.
Downloadable Documentation:
Datasheet
Features
DALI Control: Each port on the RIO D4 can control up to 64 DALI devices, with support for commissioning with DALI discovery and configuration commands. Designer includes a convenient drag-and-drop interface for DALI patching and timeline programming. Multiple RIO D4 units can be used together as part of a single Pharos Designer system to provide distributed DALI control over an Ethernet network.
Emergency Lighting: DALI Ballasts for emergency lighting have special requirements for regular testing, error detection and fault reporting. Pharos Designer supports this with the ability to schedule automatic Function and Duration tests, automatic querying for battery level and lamp hours, and a full test result and error reporting web page.
Scalable: Multiple Remote Devices can be combined on the same network to build the ideal system for your installation. System totals, maximum devices and maximum DALI interfaces assigned to a controller depends on controller type. Whether one controller or many, it’s all easily programmed using Designer 2 software.
Built-In Flexibility

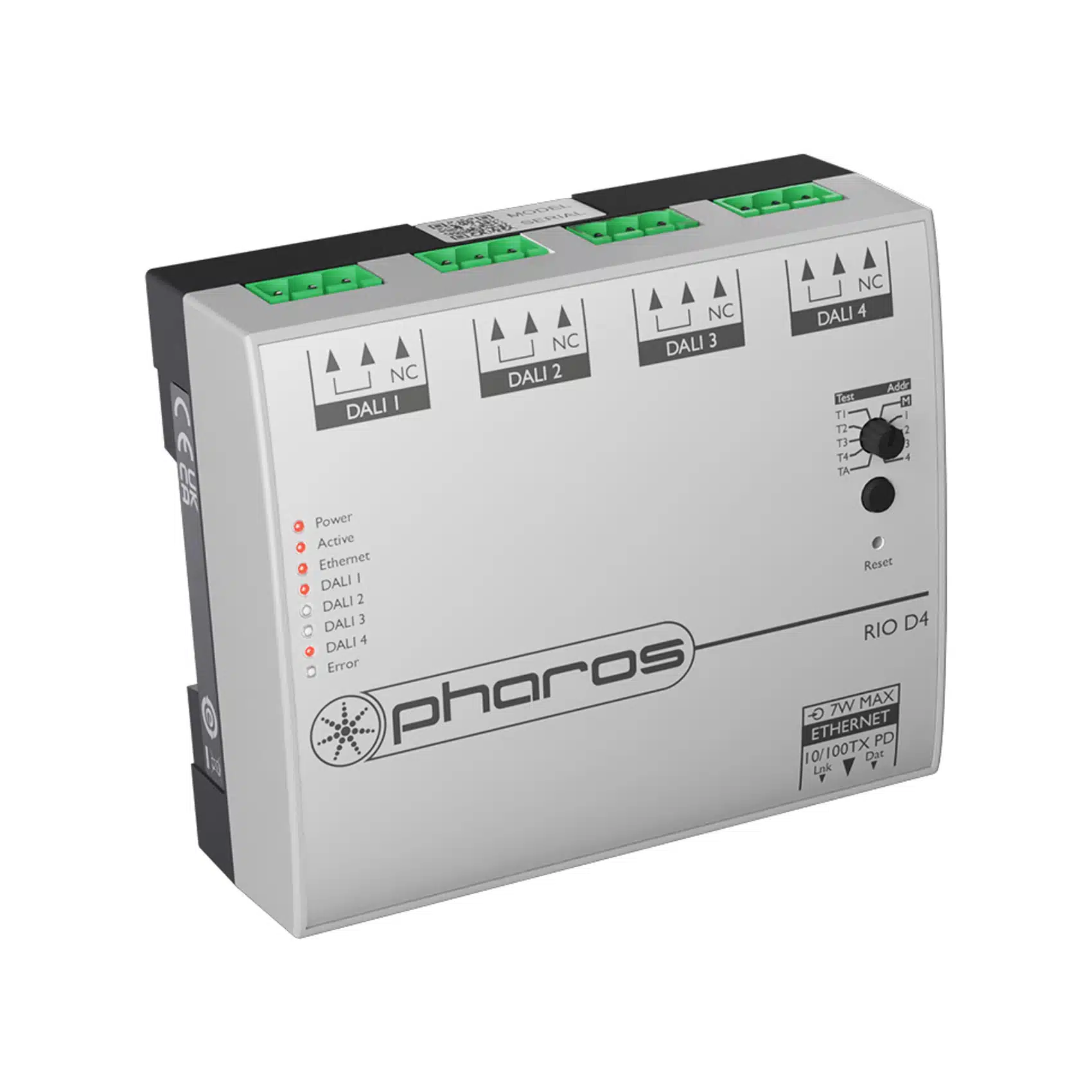

Each RIO D4 supports four DALI buses, which can be used as outputs for control and for receiving DALI commands as triggers. Each device can be placed where it is needed and connected to a Pharos controller over an Ethernet network.
Technical Information
Capabilities |
|
|---|---|
| DALI Control: | Control for up to 64 DALI devices per port including device discovery and configuration |
| DALI Receive: | Receive DALI messages from other controllers such as wall panels or occupancy sensors |
| Emergency Lighting: | (Designer only) Schedule automatic Function and Duration tests; automatic querying for battery level and lamp hours; test result and error reporting web page |
| Bus Power Detection: | Detect bus power status, with reporting also available in Pharos Designer |
Interfaces* Install-friendly 0.200″ (5.08mm) plug in rising clamp connectors (included) |
|

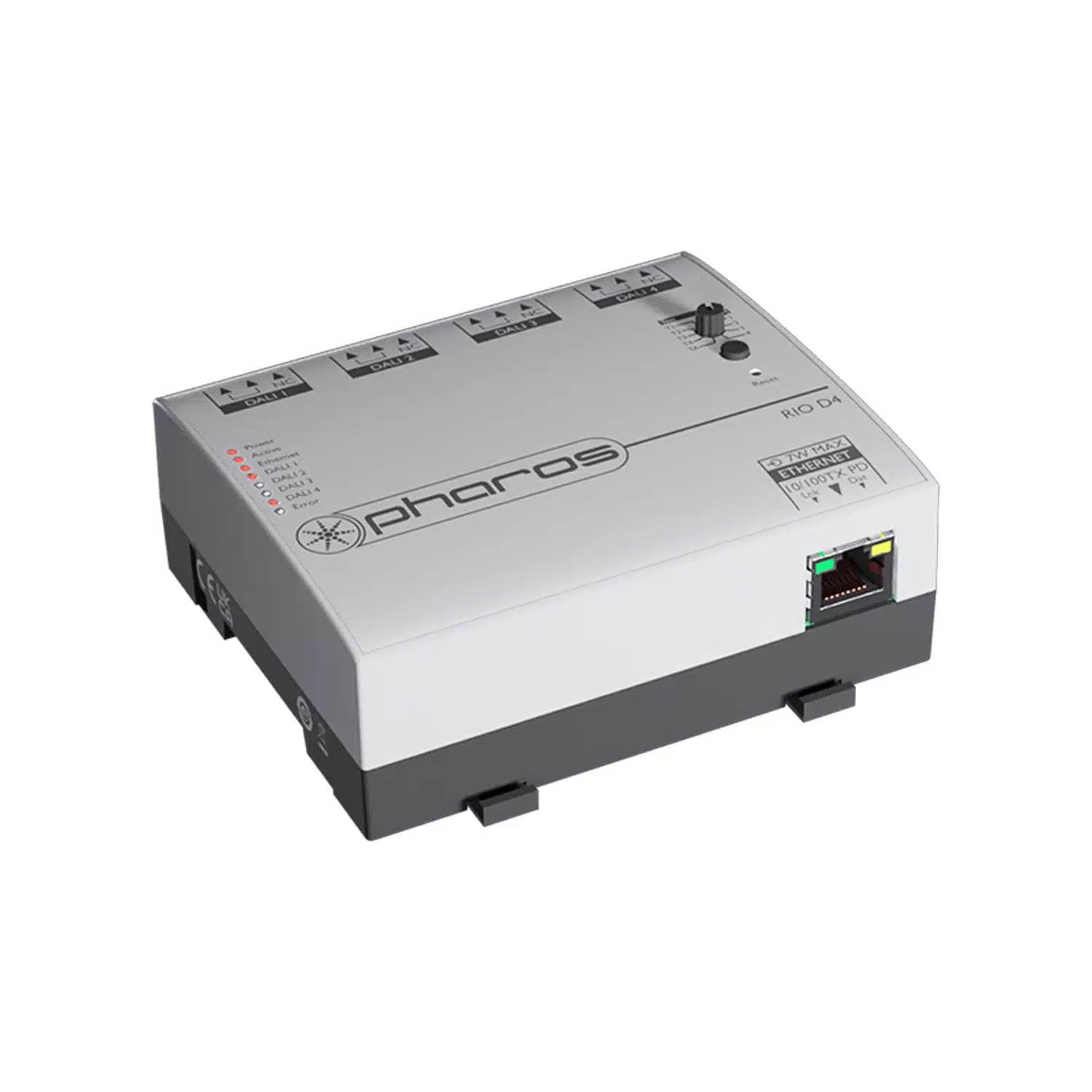

|---|---|
| Ethernet: | RJ45 socket for 10/100Base-TX Ethernet with Link/Data LEDs; Static IP or DHCP; Power-over-Ethernet (PoE) |
| DALI: | Port can transmit and receive DALI commands * Supports DALI standards: EN 62386-101:2009, EN 62386-102:2009, EN 62386-202:2009, EN 62386-209:2011 |
System LimitsRemote Device system limit count includes all RIO, EDN, TPS and BPS in project. |
|
|---|---|
| In Project: | Maximum 200 remote devices across multiple controllers in a single Pharos Designer project. |
| Per Controller: | Maximum remote device limits assigned to controllers depend on controller type: 64 for each LPC, TPC 100 for each LPC X, VLC, VLC+ |
| DALI Interface per Controller: | Maximum total configured DALI ports assigned to controllers depend on controller type: 16 for each LPC 1, TPC 32 for each LPC 2 64 for each LPC 4 100 for each LPC X 100 for each VLC (for triggering only) |
Specifications |
|
|---|---|
| Certifications: | CE compliant, UKCA compliant, UL/cUL listed |
| Power: | PoE (IEEE802.3af, Class 2), 7W max |
| Required: | Any Pharos Designer Controller DALI power supply per port |
| Configuration: | Pharos Designer 2.15.1 or later |
| Addressing: | By rotary selector switch |
| Temperature: | 0°C to 50°C (32°F to 122°F) |
| Humidity: | 10-90% relative, non-condensing |
| Ingress: | IP40 |

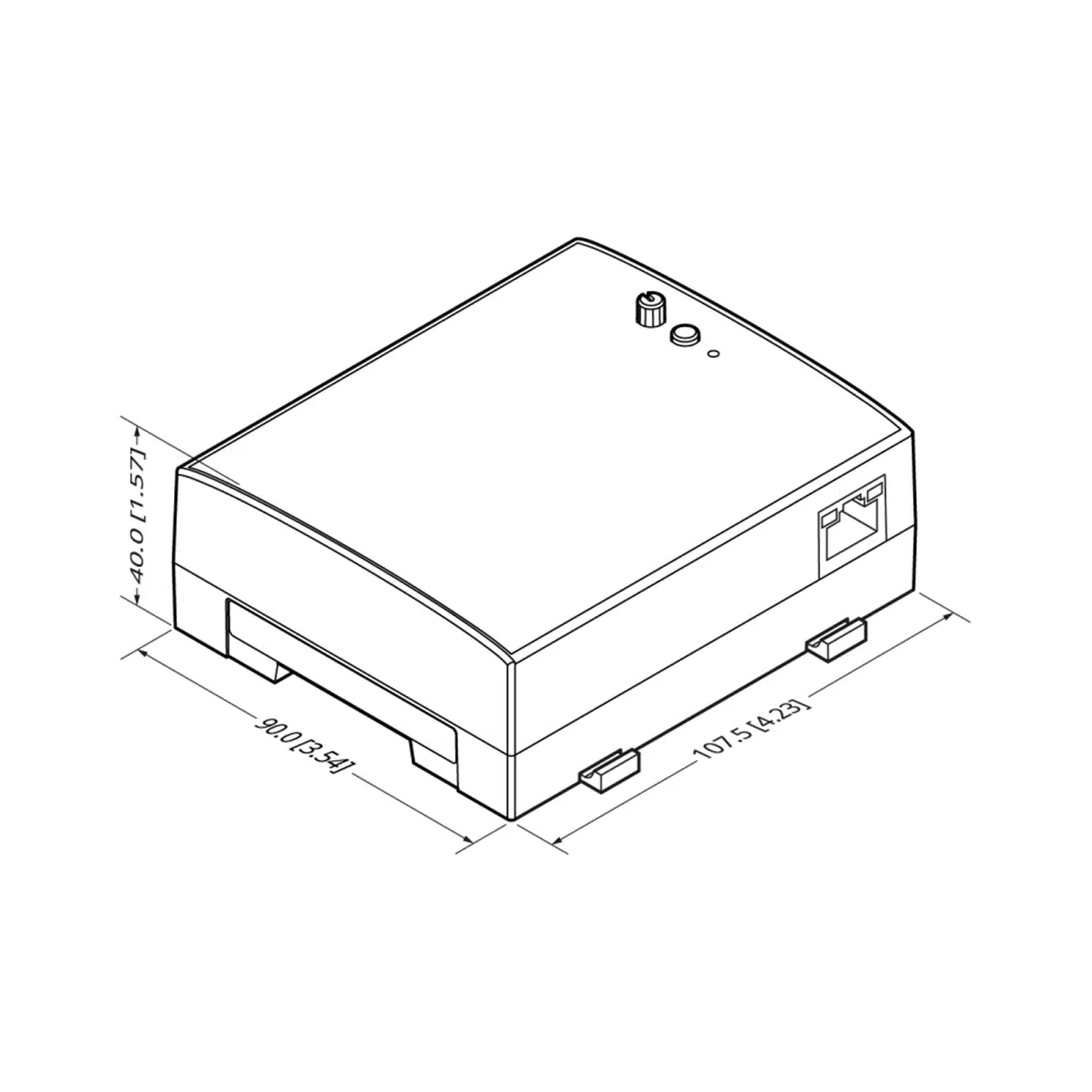

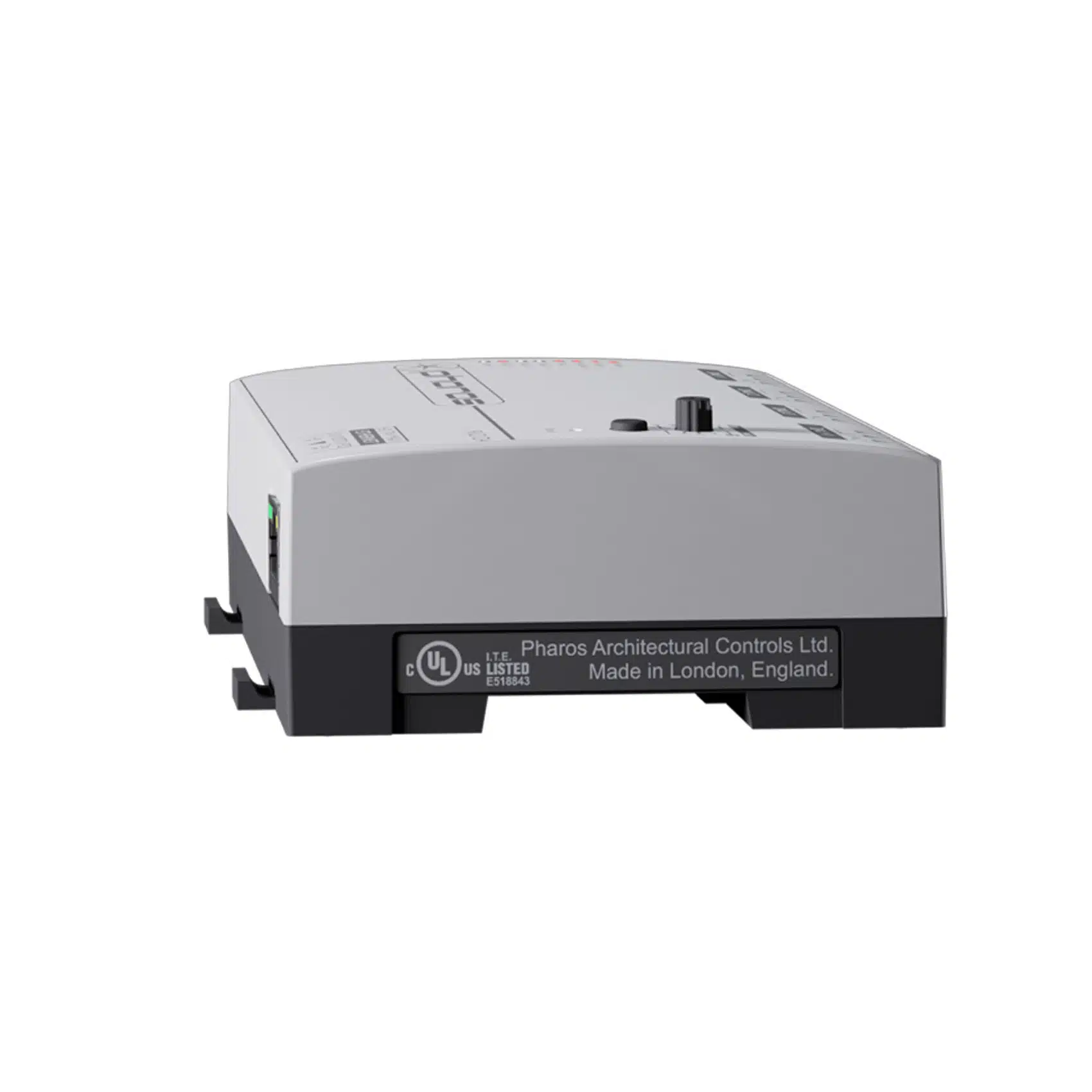

| Physical: | 6 unit wide DIN rail mounting enclosure (35/7.5 rail) 10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in) 0.2 kg (0.5 lbs) |
| Shipping: | 19.5 x 15 x 7.5 cm (8 x 6 x 3 in) 0.4 kg (0.9 lbs) |
| Recovery: | Hardware watchdog and recessed reset button |
| Warranty: | 5 Year |
Order Code & Variants |
|
|---|---|
| RIO D4: | Pharos Remote DALI 4-Port Device (DALI x4) Pharos Designer Controller required DALI power supply per port required |
