Made in USA AlphaSpec™ CV Series 120 LEDs per meter White LED Tape

AlphaSpec™ raises the bar for specification-grade lighting and is proudly crafted in the USA. When used with the right channel and lens, it delivers complete diffusion and a spotless appearance, making it an excellent choice for premium architectural and commercial settings. Despite measuring only 8 mm wide, AlphaSpec™ maintains a uniform density of 120 LEDs per meter, ensuring even, consistent illumination.

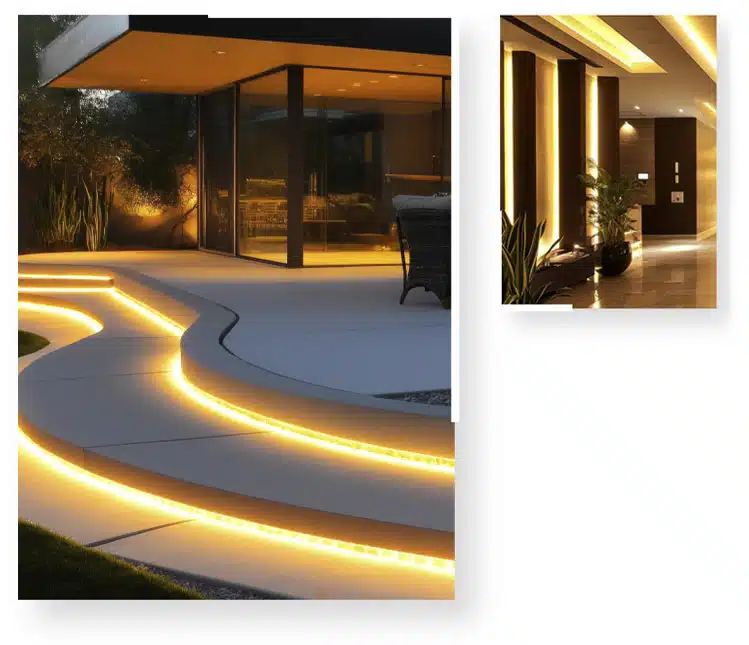

White LED Tape Application

To accommodate a variety of design requirements, AlphaSpec™ provides 6 proprietary 2835 LED options (ChromaSure™), each with distinct performance attributes (e.g., chromaticity, efficacy) and multiple segment configuration possibilities. It also allows for different luminous output levels, letting you balance brightness and power consumption. A broad range of CCT choices makes it possible to fine-tune the exact ambiance you want.

Supported by a 7-year limited warranty, AlphaSpec™ is engineered and manufactured in America specifically to serve the American market, guaranteeing top-tier quality, local support, and alignment with all relevant standards.

USA Flag and UL Listed image

Documentations

AlphaSpec™ 120 Full Info Pack – Brochure and Datasheet
AlphaSpec™ 120 Brochure
AlphaSpec™ 120 Datasheet

Made in USA AlphaSpec™ Product Link

AlphaSpec™ 120 CV Series

SKU LED/Seg SDCM LED Efficacy CCT lm/ft IP Rating Length Input Voltage Info Pack Action
S120-83U22-xxx-xxxx 8 3 Ultra 2200K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF
S120-83U27-xxx-xxxx 8 3 Ultra 2700K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF
S120-83U30-xxx-xxxx 8 3 Ultra 3000K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF
S120-83U35-xxx-xxxx 8 3 Ultra 3500K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF
S120-83U40-xxx-xxxx 8 3 Ultra 4000K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF
S120-83U50-xxx-xxxx 8 3 Ultra 5000K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF
S120-83U65-xxx-xxxx 8 3 Ultra 6500K 100-500 IP40, IP67 16.4 ft (5m), 100 ft (30m) 24V DC PDF

For Mobile display legend – Above table title – SKU, LED/Segment, SDCM, LED Efficacy, CCT, lm/ft, IP Rating, Length, Voltage, Info Pack, Button

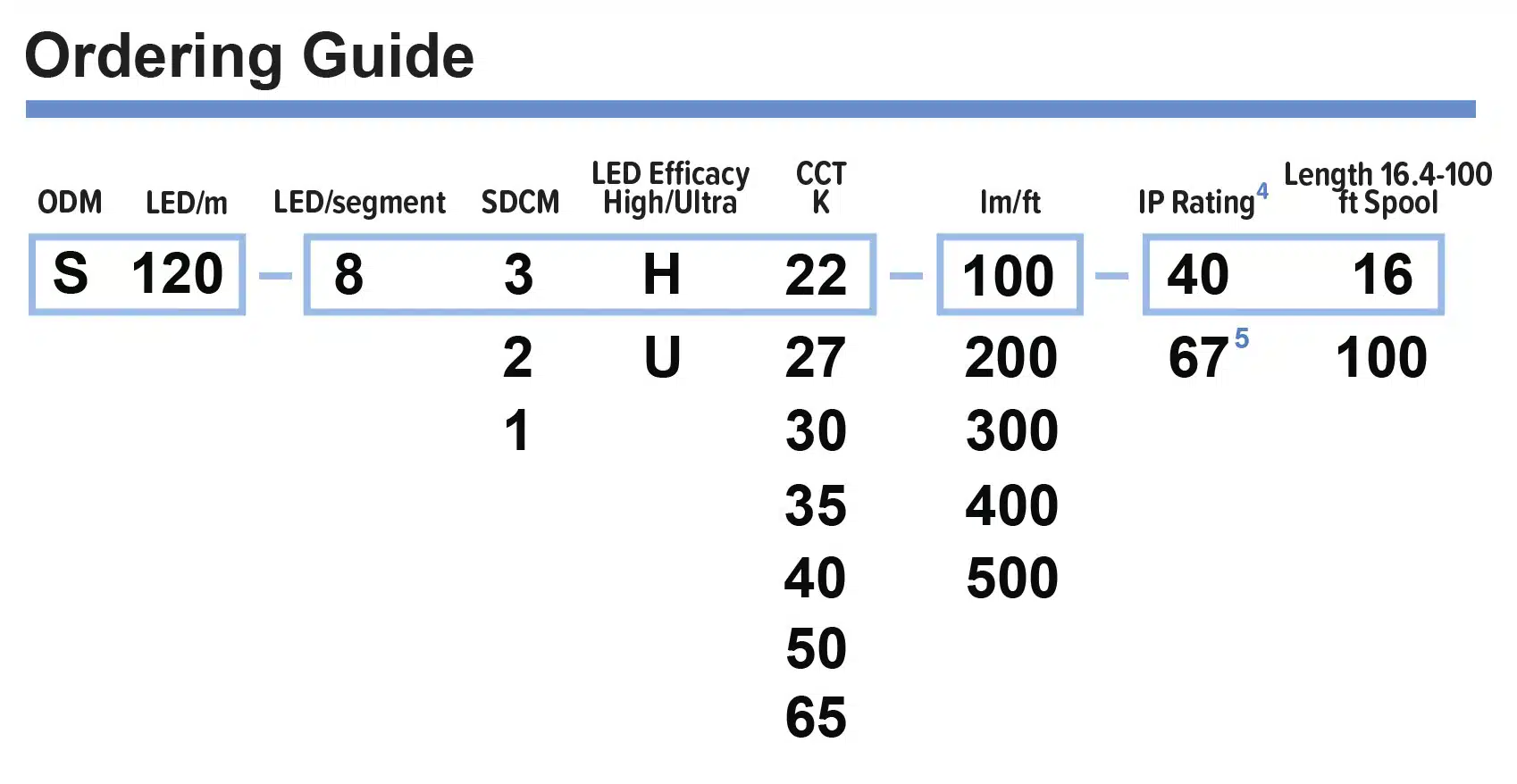

Ordering Guide AlphaSpec 120 LED Tape 8 LEDs
Notes: 4IP – Varies on environment application, indoor or outdoor. 5IP67 only on 16.4’ (5m).

Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.
