SIRS-E® Architectural LED Aluminum Extrusions & Channels

SIRS-E® Architectural LED Extrusions offer a sleek, professional mounting solution for flexible linear tape lights. First, select a channel profile that matches your strip width. Next, pick the mounting shape that fits your space requirements and aesthetic goals. Consequently, you achieve a clean finish that protects your LEDs from dust and contact.

Each 2-meter (78.7-inch) channel comes standard in a silver finish, with custom white or black options available upon special order. Additionally, standard bundles include an opal diffuser with 40% optical loss for dot-free diffusion. For maximum brightness, an optional clear diffuser is also available with only 2% optical loss. Rated IP40 and backed by a 3-year warranty, these extruded channels perform exceptionally well across custom fixture creations, under-cabinet setups, and recessed drywall installations.

Elevate your linear lighting with SIRS-E® architectural LED aluminum extrusions. These channels deliver a smooth, dot-free output while protecting your LED tape lights. As a result, you get a clean, professional finish tailored to any residential or commercial installation.

• Standard Length: 78.7 inches (2 meters) per segment
• Standard Finish: Silver Anodized
• Custom Finishes: White or Black (available upon special order)
• Default Diffuser: Opal Lens (40% optical loss, dot-free diffusion, full beam angle)
• Optional Diffuser: Clear Lens (2% optical loss, maximum light transmission)
• Environment Rating: IP40 (Indoor / Dry Locations)
• Warranty: 3-Year Manufacturer Warranty
• Available Mounting Types: Surface Mount, Recessed Mount, Corner Mount, Suspended Mount, Plaster-In Drywall Mount

• Complete Profile Variety: Choose from surface, recessed, corner, suspended, and plaster-in drywall styles for any architectural surface.
• Dot-Free Illumination: Standard opal diffusers eliminate diode spots to create a continuous, uniform line of light.
• Durable LED Protection: High-grade aluminum profiles shield flexible tape lights from dust, physical contact, and heat buildup.
• Flexible Lens Options: Select the default opal diffuser for smooth distribution or the optional clear diffuser for maximum output.
• Versatile Applications: Ideal for cove lighting, cabinet illumination, ceiling recesses, grooved floor channels, and custom pendant fixtures.

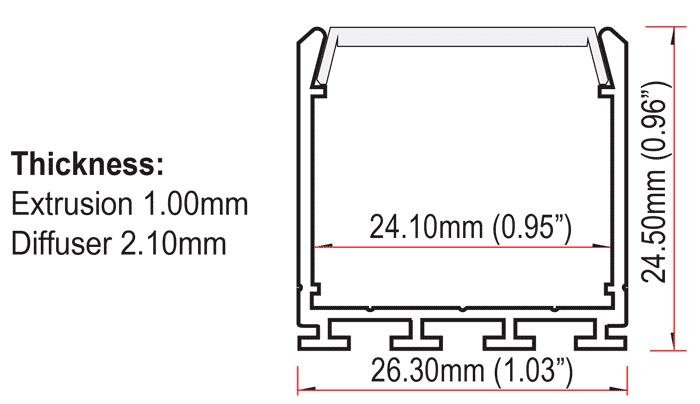

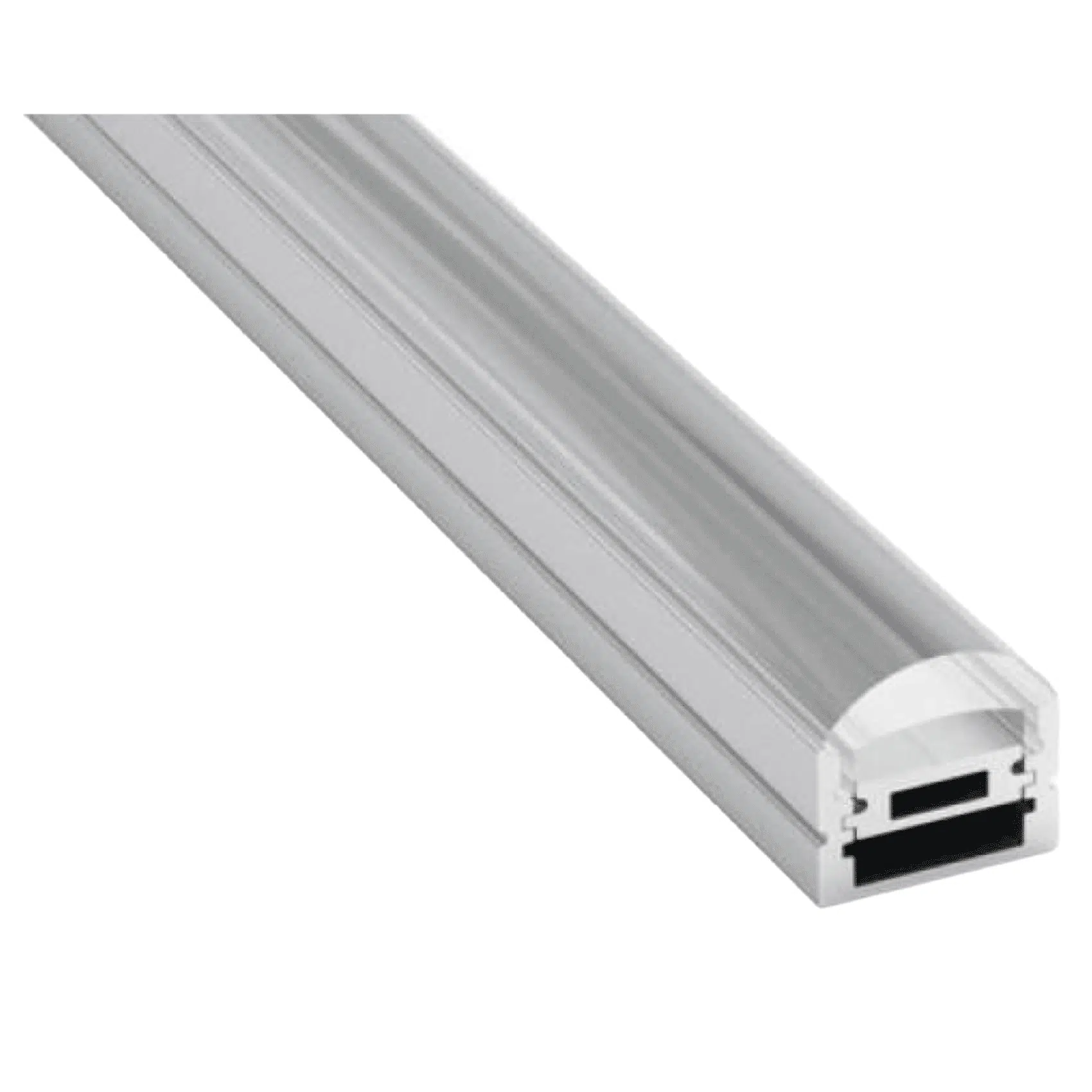

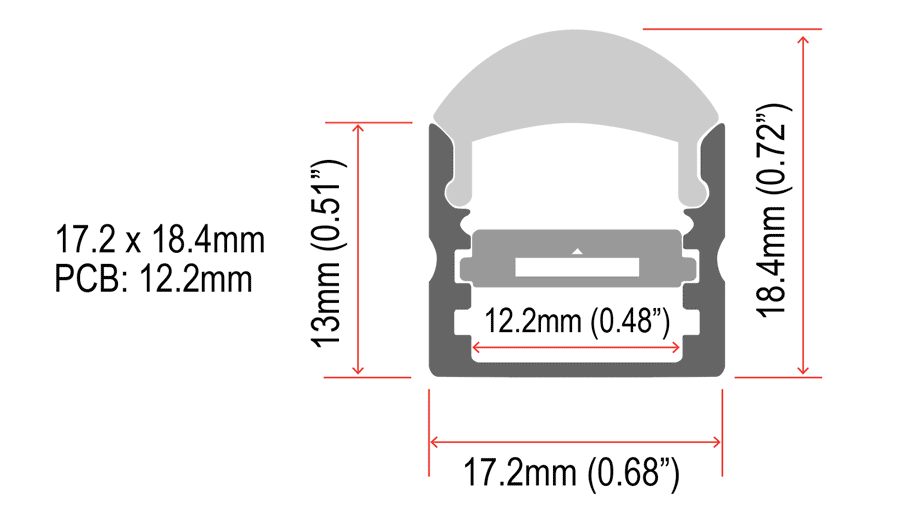

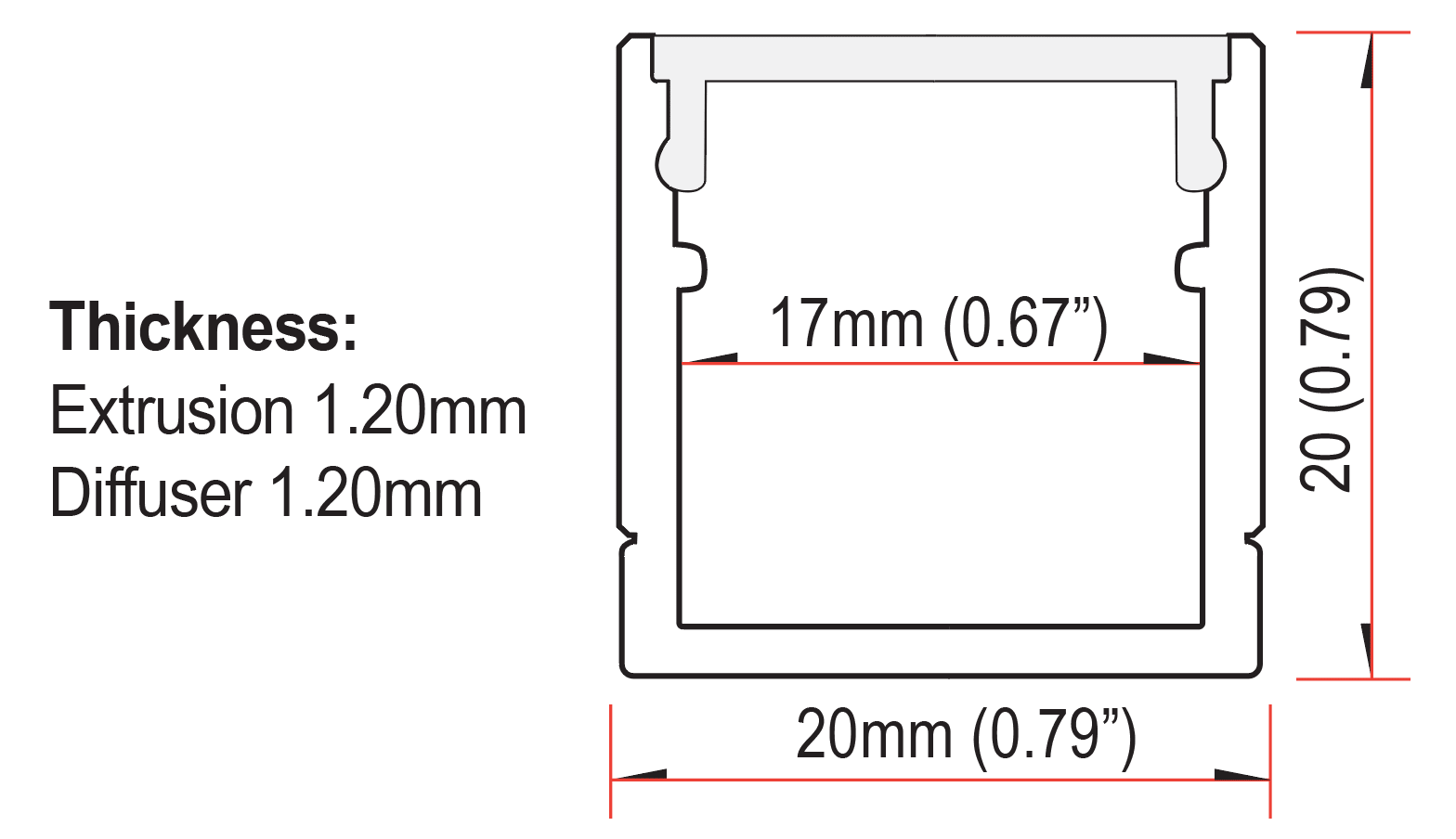

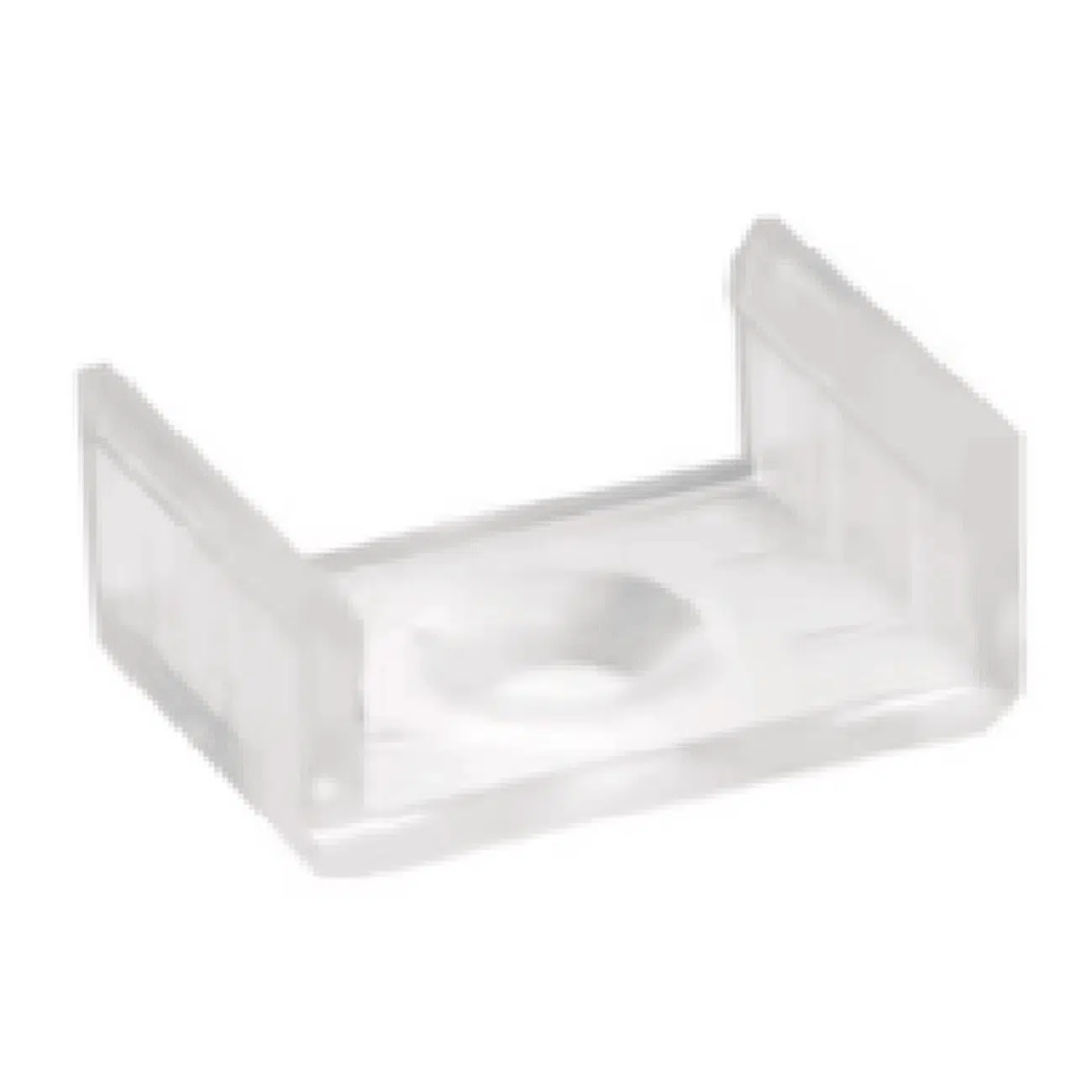

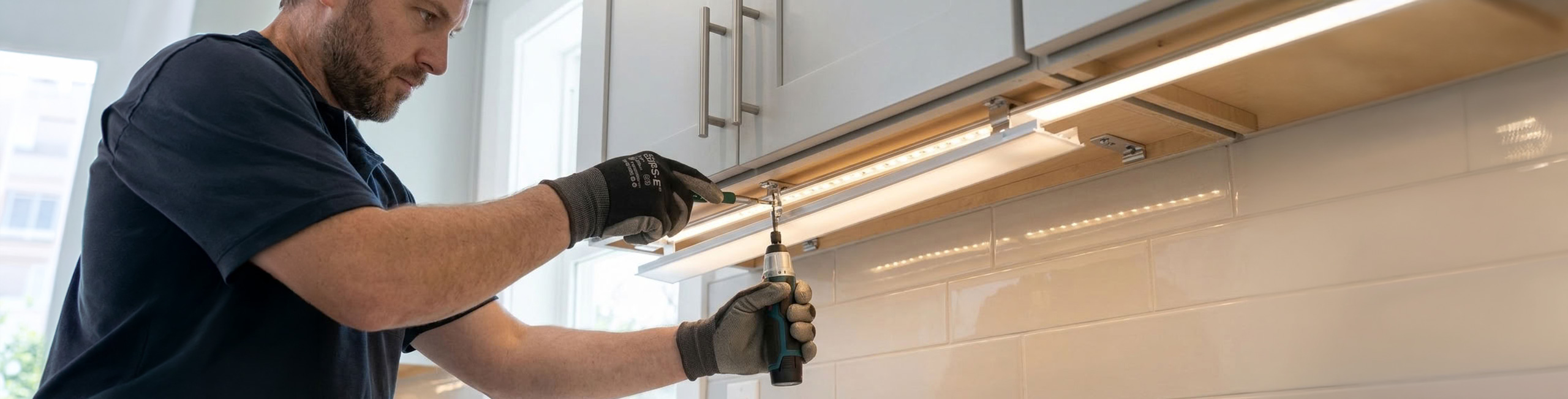

Channels designed to be attached directly onto flat surfaces—such as walls, ceilings, under cabinets, or shelving—using mounting clips, screws, or adhesive tape. They are the easiest option to install because they don’t require cutting into drywall or panels.

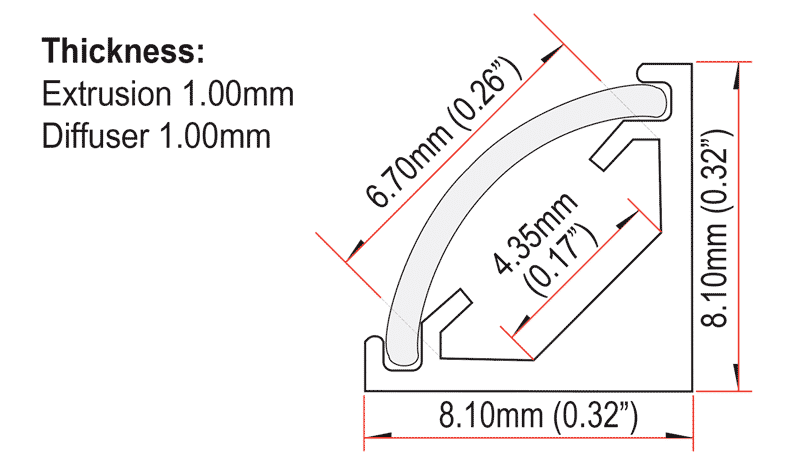

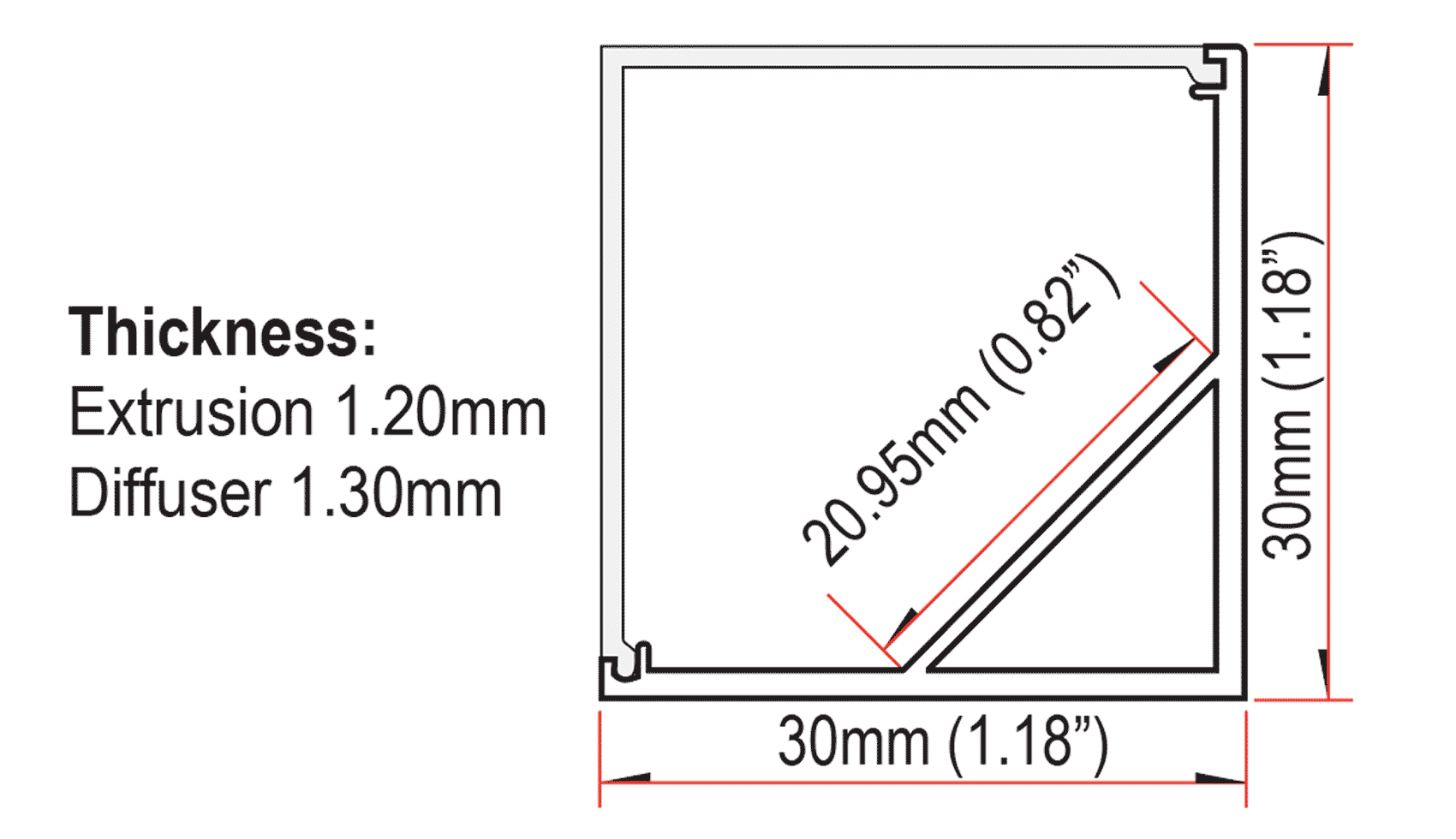

45-degree angled channels designed to fit tightly into 90-degree corners, casting light evenly across two adjacent surfaces.

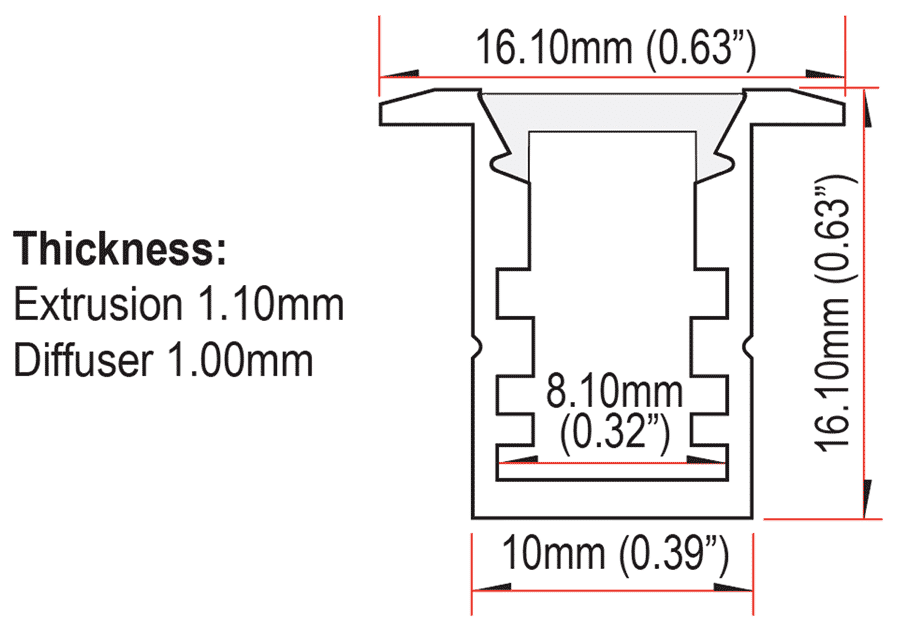

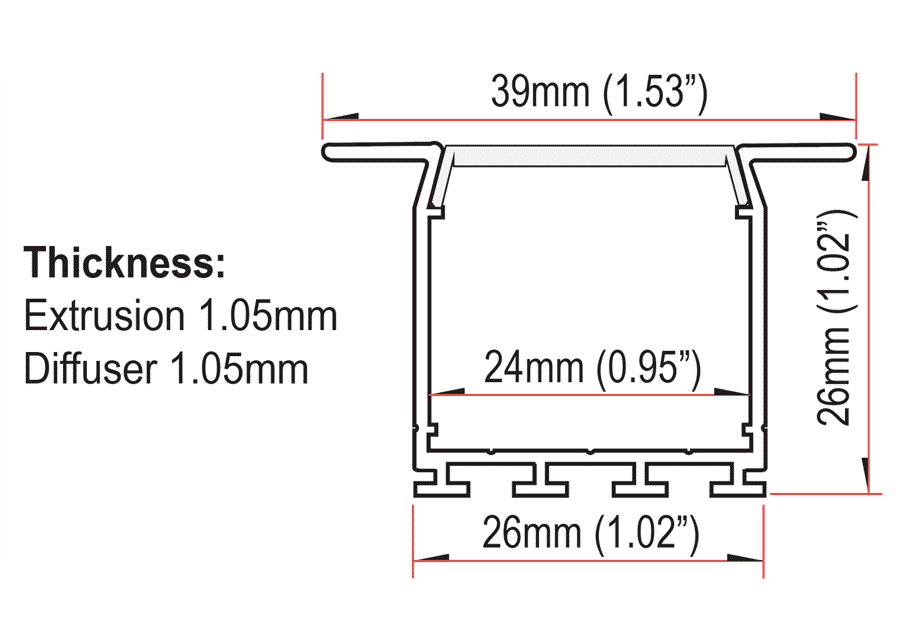

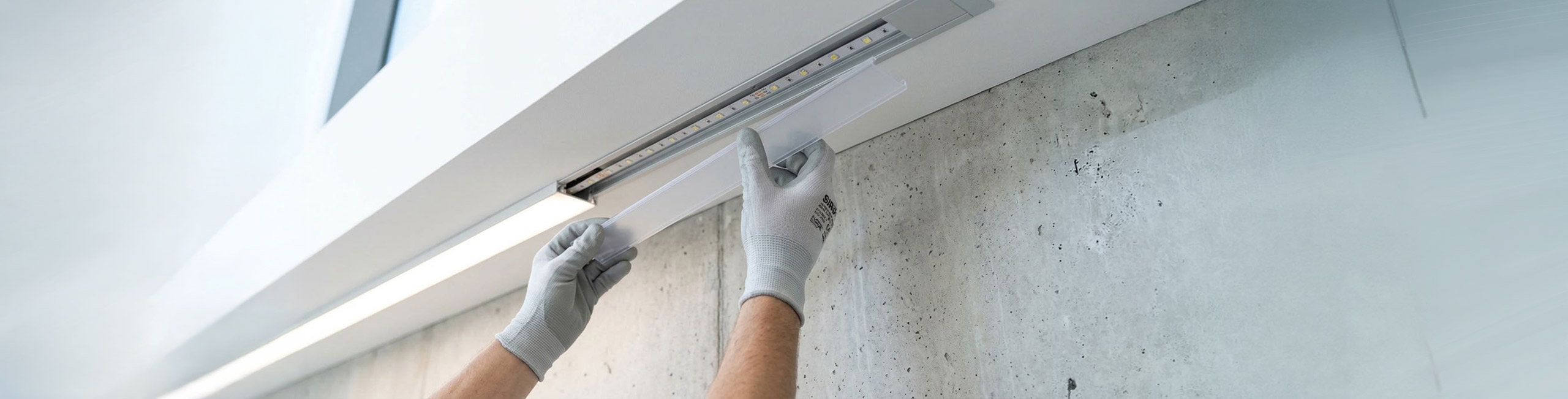

Channels that sit inside a pre-cut groove, leaving only the lip and diffuser visible for a flat, flush finish.

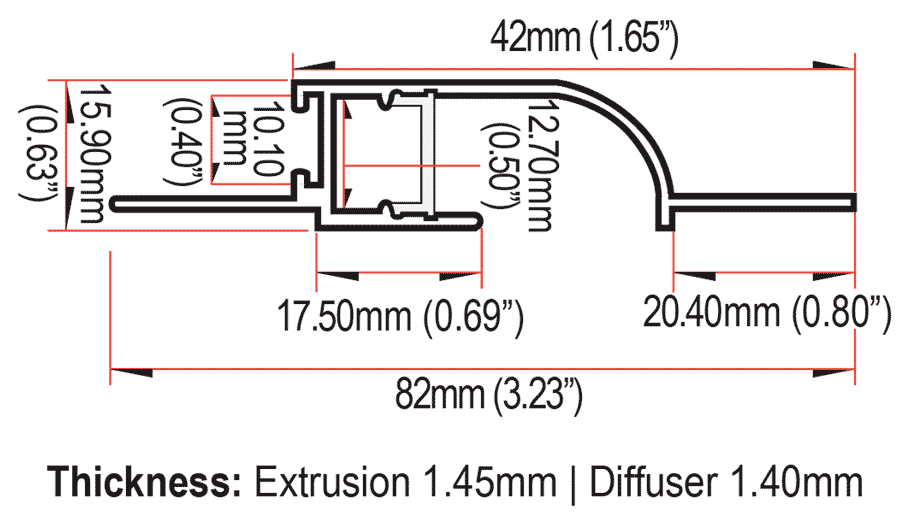

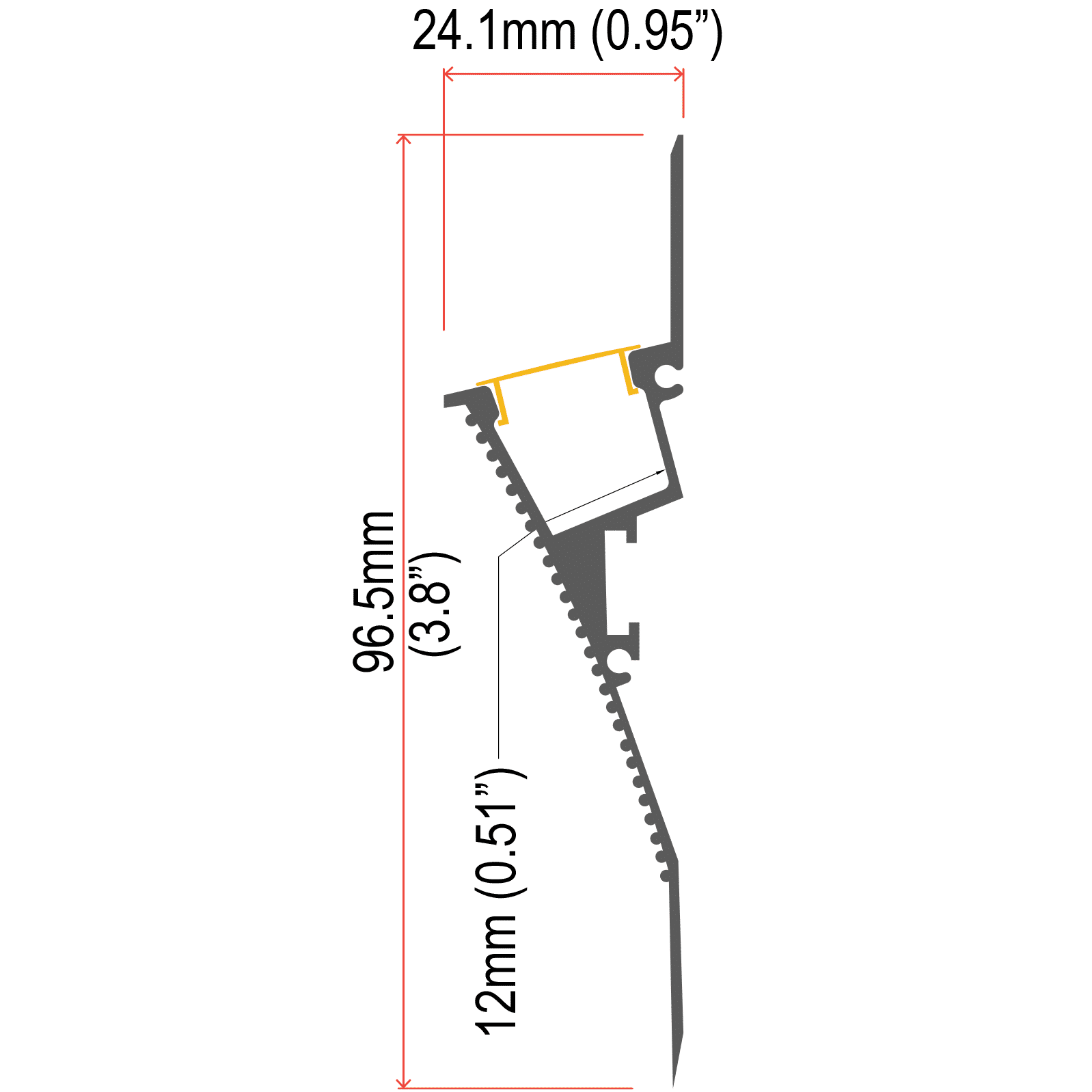

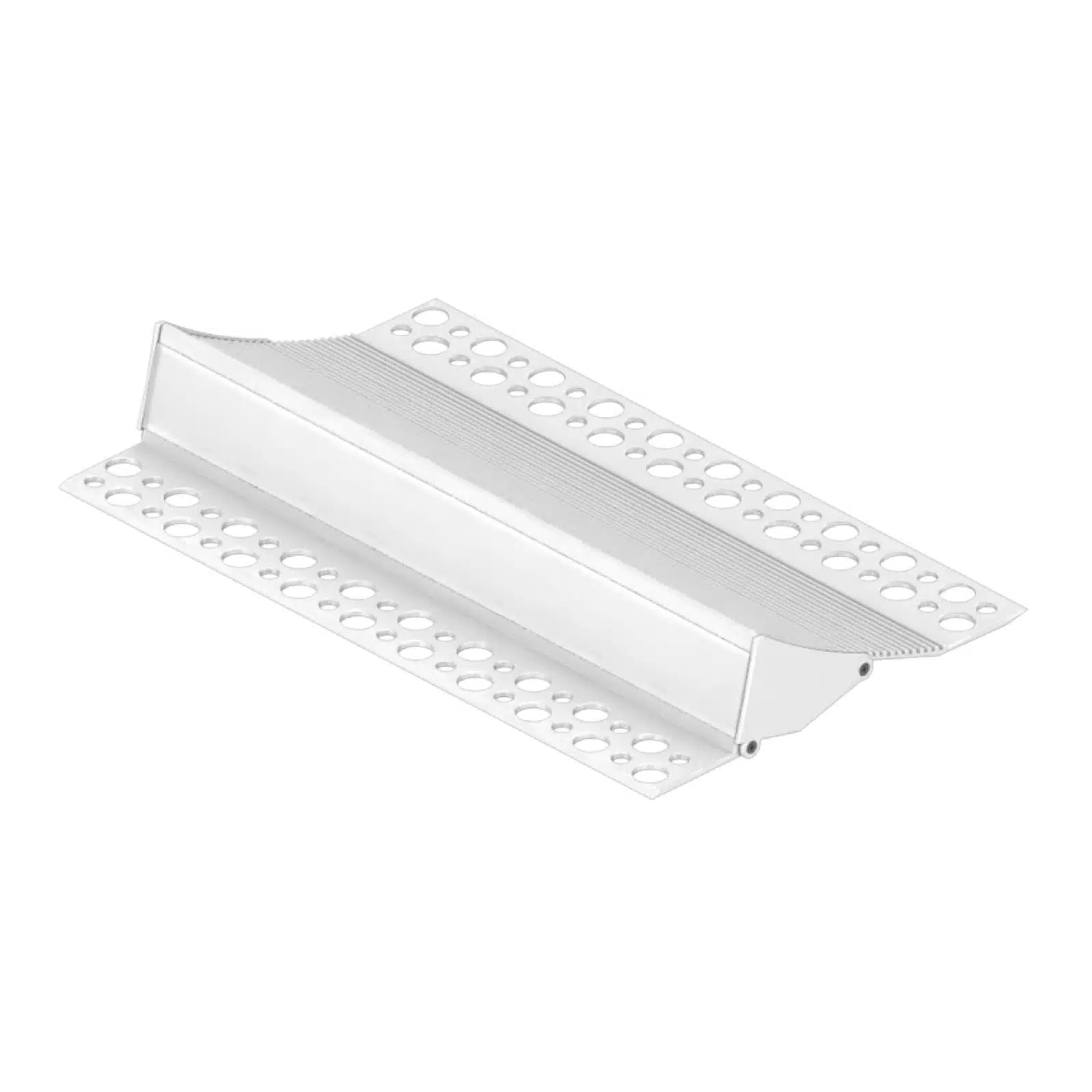

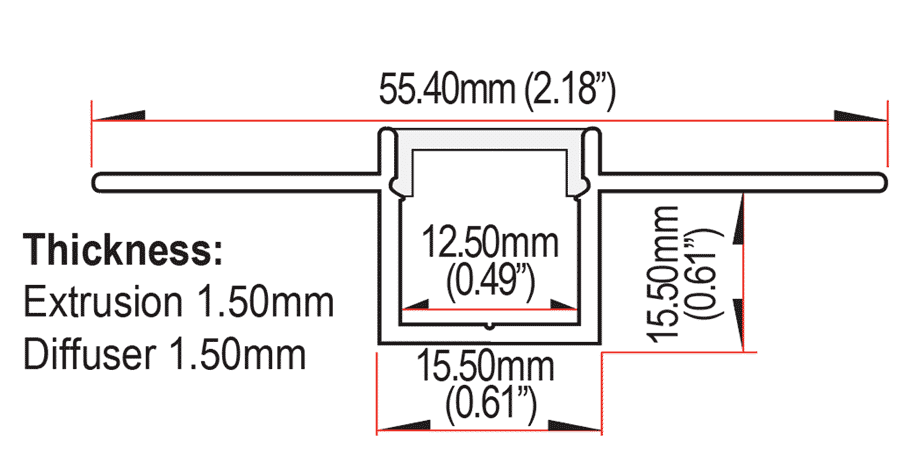

Flanged channels installed into drywall before mudding and painting, creating a seamless, trimless “light-blade” effect.

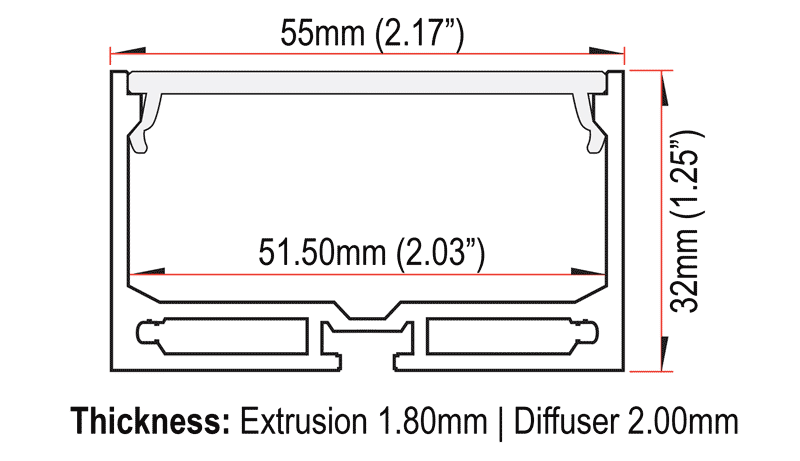

Hanging channels suspended from ceilings via aircraft cable, turning LED strips into modern pendant fixtures.

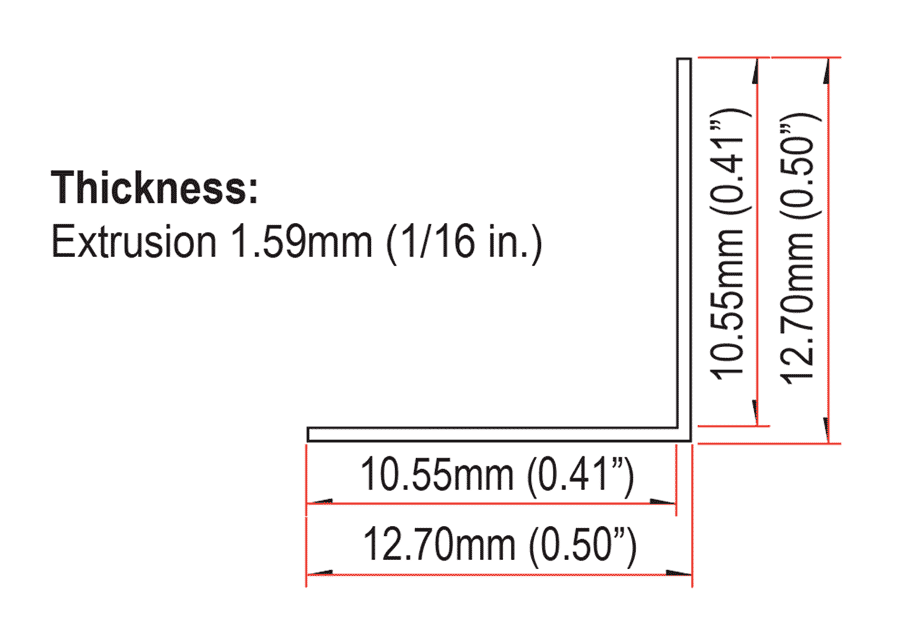

Simple, solid aluminum stock used for low-profile heat dissipation and direct strip mounting where visual concealment isn’t required.

To ensure a precise fit for any architectural surface, our aluminum extrusions come in multiple shapes and installation styles. Furthermore, each profile is engineered to simplify mounting while maintaining a seamless visual flow.

Call (281) 324-0908 or email store@sirs-e.com.

Because these architectural extrusions are highly adaptable, they perform exceptionally well across a wide variety of commercial and residential installations. For instance, you can use them to create sleek accent lines or powerful task lighting. Additionally, they protect your LED strips from dust and physical contact.

• Custom Fixture Creations
• Grooved Floor and Step Lighting
• Cove and Accent Lighting
• Facade and Exterior Effects Lighting
• Direct Downlighting and Task Lighting
• Shelving and Display Lighting
• Suspended Architectural Lighting
• Ceiling and Cove Recesses

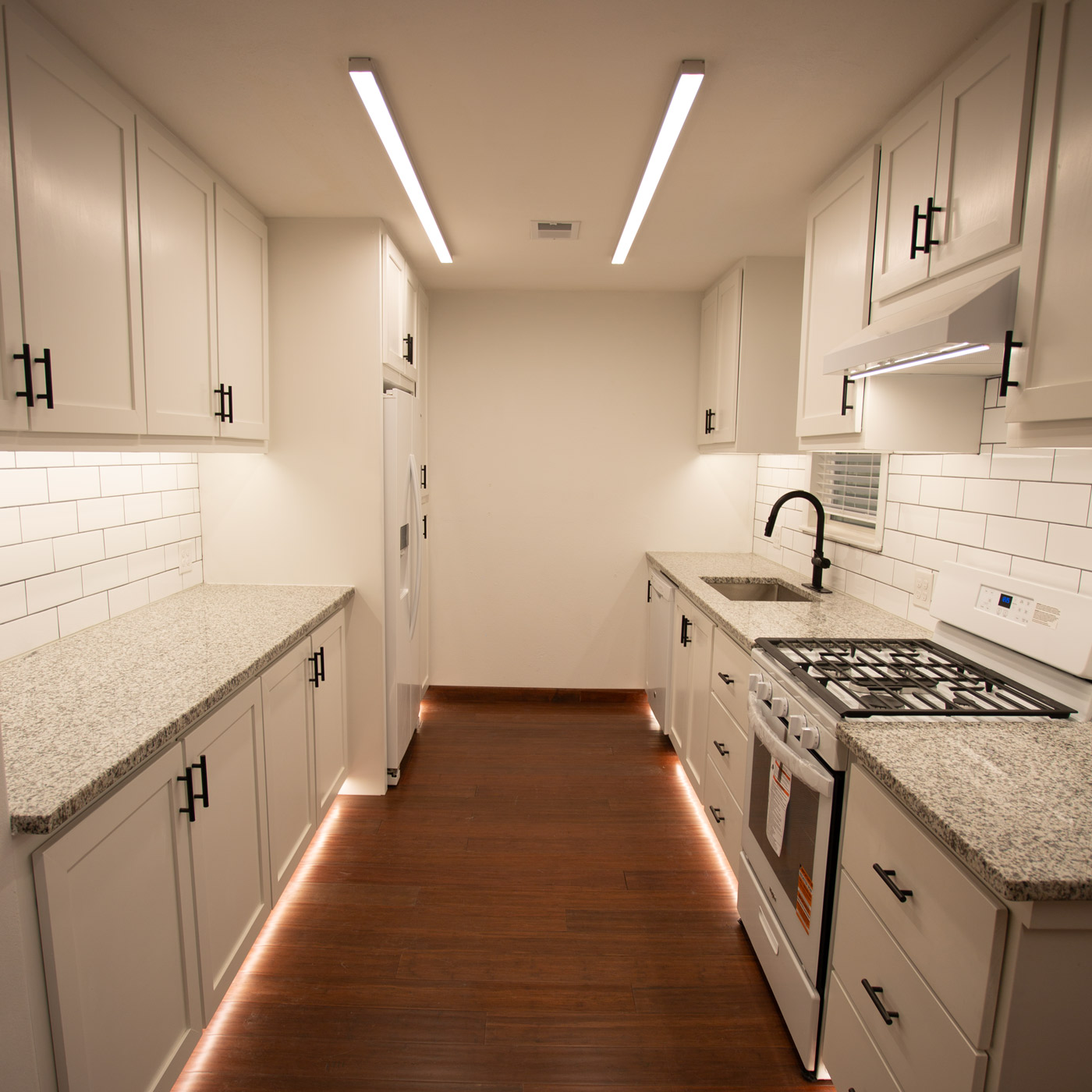

• Under-Cabinet and Above-Cabinet Lighting
• Wall Wash and Wall Effects Lighting
• Under-Baseboard Accent Lighting

Do you need technical documentation for your next project layout? Contact the SIRS-E® engineering team today to request complete specification sheets, IES files, or a comprehensive commercial quote tailored to your project scope.
