StripFlexLED™ RGB

SIRS-E

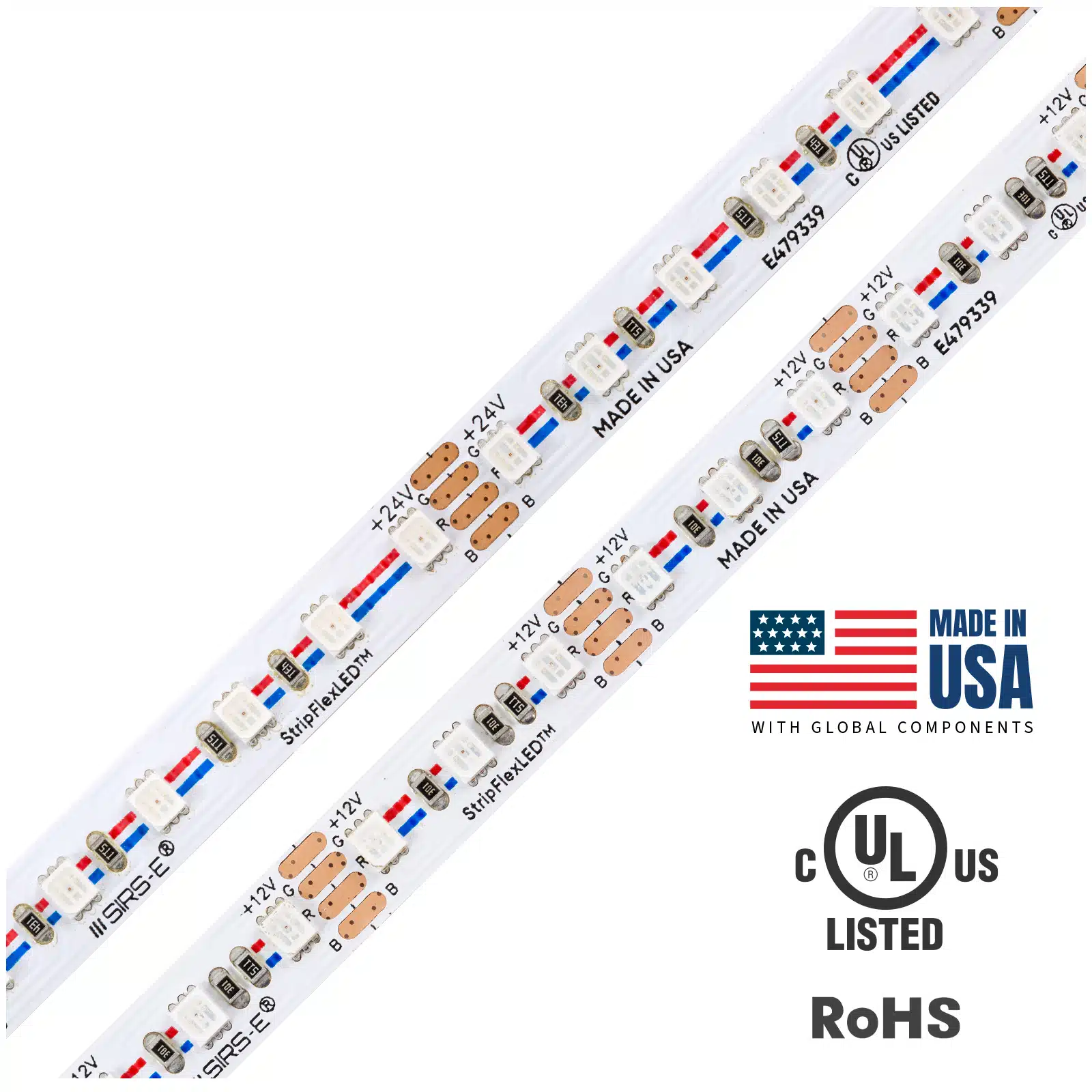

StripFlexLED RGB 12V and 24V Photo
StripFlexLED RG Dimensions

SFL-RGB

StripFlexLED™ RGB

SIRS-E

The SIRS-E® StripFlexLED™ RGB LED Strip is manufactured in Texas, USA and equipped with high-intensity LEDs that deliver consistent, uniformly bright illumination for a wide range of general-purpose and accent lighting applications. Its flexible design allows the strip to adapt easily to different surfaces, layouts, and room configurations, making it a versatile lighting solution for both residential and commercial projects.

With adjustable brightness and full RGB color control, StripFlexLED™ enables precise tuning of light output and ambiance, making it ideal for dynamic accent lighting, subtle color washes, or functional color illumination where reliability and visual quality matter.

For project-specific requirements, this LED strip is also available as a special-order/customized product with applicable MOQ requirements. Customizable length options and waterproof versions are available upon request, allowing the product to be tailored for indoor, outdoor, or moisture-prone applications.

Downloadable Documentation:

All photometric and electrical data for SIRS-E® and our ODM LED Tape are measured in compliance with IES LM–79–24 and ANSI C82.77:2002. Our colorimetric data follow IES TM–30–24, CIE 013.3–1995, CIE 15:2018, and the chromaticity specifications of ANSI C78.377–2024. Lifetime and lumen maintenance data are tested in accordance with ANSI/IES LM–80–21. Where applicable, SDCM (Small Deviation of Color Matching), also referred to as the MacAdam ellipse, is used to define color consistency, referencing Specification of Small Chromaticity Differences by David L. MacAdam.

Categories: , Tags: , ,

StripFlexLED™ RGBW Related Products

USA Global Components UL RoHS

*BAA/BABA Compliance: Made in the USA through domestic assembly using globally sourced PCB boards and LED chips. Final qualification for BAA/BABA is subject to an approved nonavailability exemption for these imported components (as of March 2025, no domestically produced equivalents are available).

Product Features

    • Simplify your installation process with our easy-to-apply LED strip lights featuring ultra-strong 3M peel & stick mounting adhesive.
    • Our tape light is remarkably flexible, allowing you to cut it to your desired size or cut and reconnect it for personalized installations.
    • Experience energy efficiency at its best with these LED lights, which operate on low-voltage power. Proudly Made in USA.



StripFlexLED™ RGB LED Strip Product Specifications
Input Voltage: 12 – 24V DC1 Cuttable Segments: 0.98″ (25mm) | 1.96″ (50mm)
Limiting Control Method: CV – Constant Voltage LED Strip Length: 16.4 ft (5m) – 100 ft (30m)1
Power Consumption: 5.5 W/ft.1 Segment Width: 0.32 in (8mm)
LED Type: 2835 TM21 (LM80): 50,000 hrs
LED Density: 120 LEDs/m 36 LED/ft. Environmental: IP 40 (Indoor – Dry) / IP 67 (Water Resistant)
Board Type / Color: White Connection Type: Hardwire
Beam Angle (Degree): 120° Pre-Soldered Lead Wire: 12″ RGB
Operation Temperature: -20°F to 120°F Country of Origin: USA Global Components
Mounting Method: Non-Phorous 3M 5952 VHB Warranty: 5 Year Limited
Color Rendering Index (CRI): N/A Certifications: RoHS UL E479339


1 – Special order w/ MOQ
For additional details, please refer to the StripFlexLED™ RGB Datasheet.

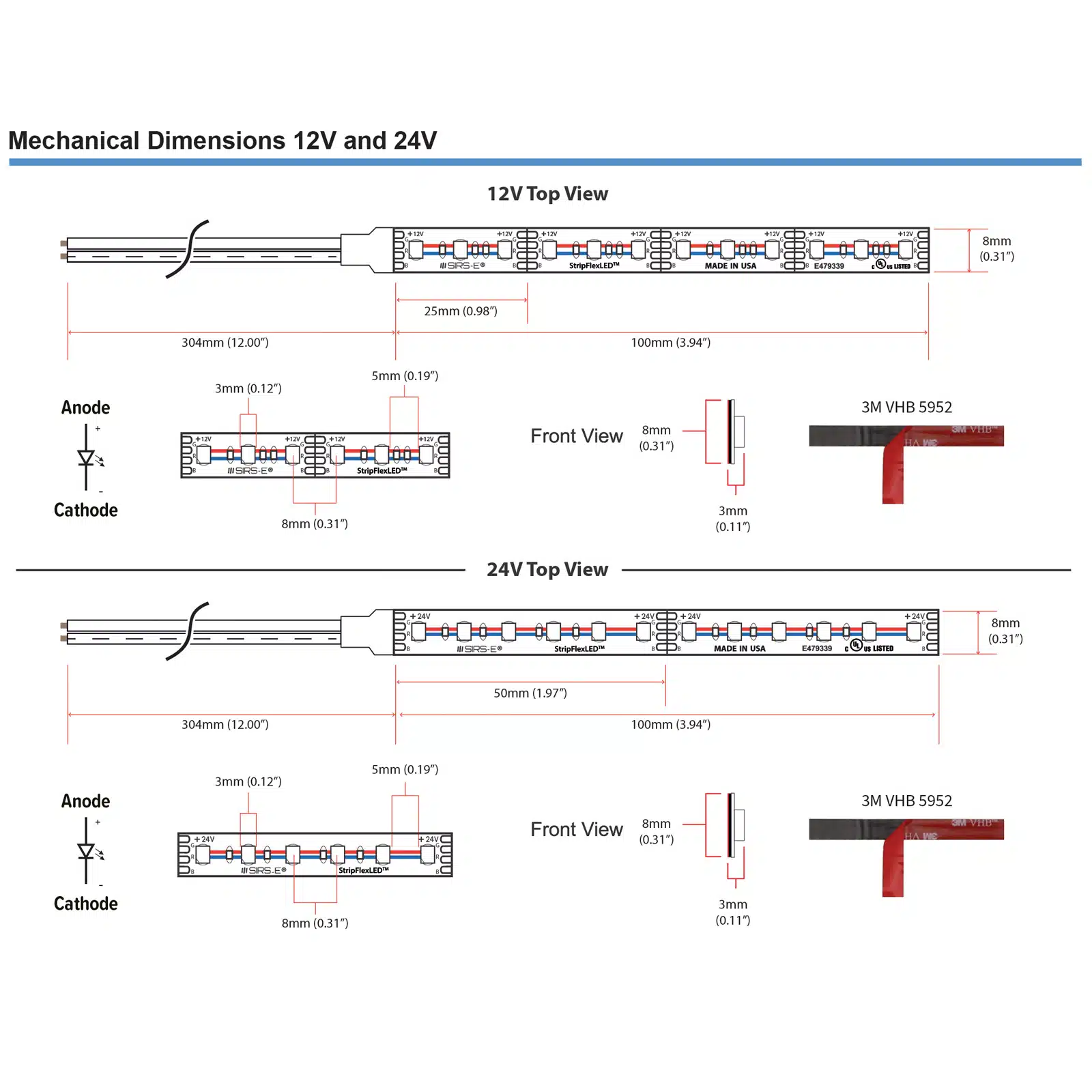

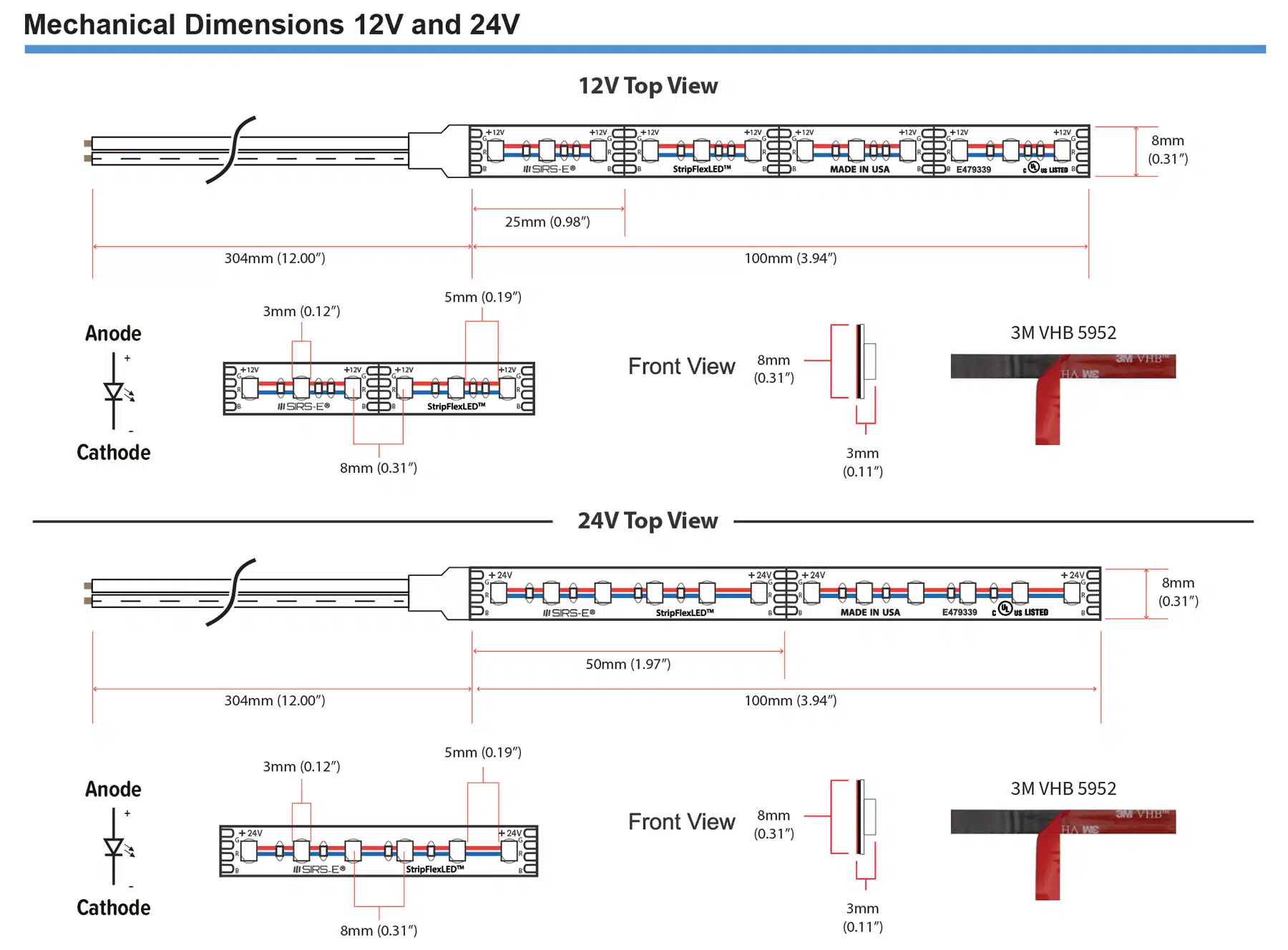

StripFlexLED RGB Mechanical Dimensions 12V and 24V

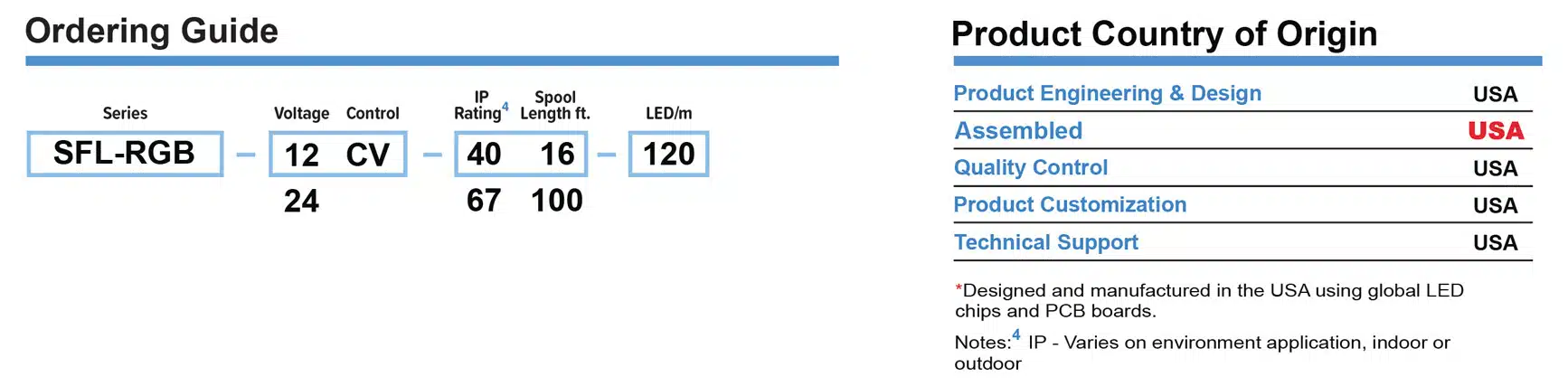

StripFlexLED RGB Ordering Guide

Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.
