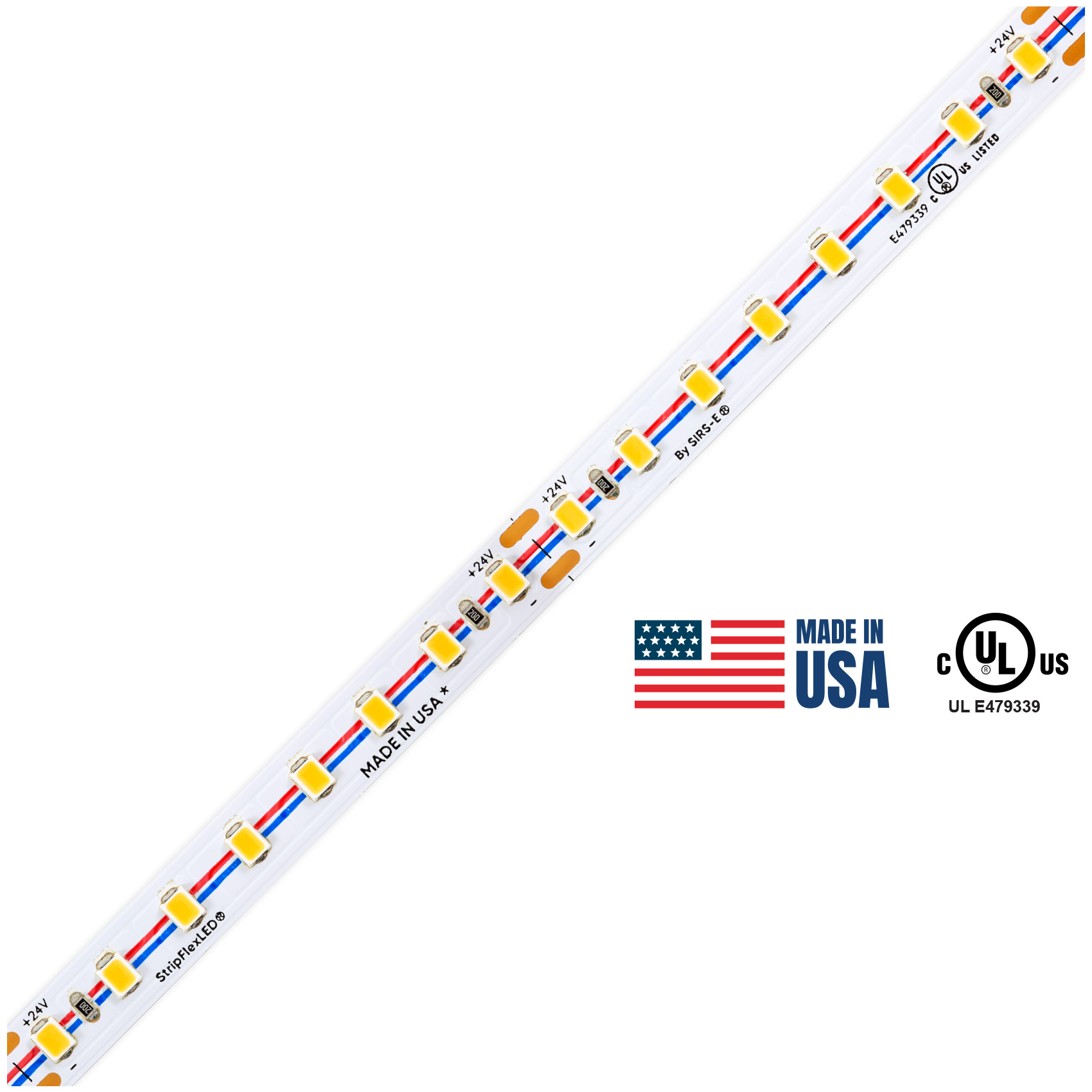

StripFlexLED™ White LED Strip Lights Pro V2 CV Series
The StripFlexLED™ 24 Volt White LED Strip Light Tape, UL Listed and proudly Made in the USA by SIRS-E®, is engineered for custom installations demanding high quality. This LED strip offers remarkable illumination with approximately 400 lumens per foot and a high Color Rendering Index (CRI) of about 95, ensuring accurate color representation in various applications. Ready for immediate use, it can also be cut to specific sizes for tailored lighting solutions. The set includes tape connectors for rejoining cut segments, ideal for extending the strip or navigating around obstacles. Suitable for a range of accent lighting needs such as cabinet, tray ceiling, or shelving lighting, it requires a SIRS-E®, or compatible 24V power supply and can be enhanced with an optional dimmer or switch.
All photometric and electrical data for SIRS-E® and our ODM LED Tape are measured in compliance with IES LM–79–24 and ANSI C82.77:2002. Our colorimetric data follow IES TM–30–24, CIE 013.3–1995, CIE 15:2018, and the chromaticity specifications of ANSI C78.377–2024. Lifetime and lumen maintenance data are tested in accordance with ANSI/IES LM–80–21. Where applicable, SDCM (Small Deviation of Color Matching), also referred to as the MacAdam ellipse, is used to define color consistency, referencing Specification of Small Chromaticity Differences by David L. MacAdam.
Achieve precise brightness control from 0% to 100% using compatible LED light dimmer switches and controllers (available separately).
Simplify your installation process with our easy-to-apply LED strip lights featuring ultra-strong 3M peel & stick mounting adhesive.
Our tape light is remarkably flexible, allowing you to cut it to your desired size or cut and reconnect it for personalized installations.
Experience energy efficiency at its best with these LED lights, which operate on low-voltage power. Proudly Made in USA.
StripFlexLED™ White LED Strip Product Specifications
Input Voltage: 24V DC
Cuttable Segments: 2.62 in (66.66mm)
Limiting Control Method: CV – Constant Voltage
LED Strip Length: 16.4 ft (5m) – 100 ft (30m)
Power Consumption: 4.7 W/ft / 15.3 W/m
Maximum Recommended Length: 32.8 ft (10m)
LED Type: SMD 2835
Segment Width: 0.32 in (8mm)
LED Density: 36 LEDs/ft / 120 LEDs/m
Luminous Flux Maintenance: 75,000 hrs
Board Type / Color: 3 oz Density Copper, White PCB
Dimming: DMX PWM, RF PWM, 0-10V, Triac, MLV, ELV
Beam Angle (Degree): 120°
Enviromental: IP 40 (Indoor – Dry) / IP 67 (Damp – Wet)
Operation Temperature: -20°F to 120°F
Connection Type: Hardwire
Mounting Method: Non-Phorous 3M 5952 VHB
Pre-Soldered Lead Wire: 1 ft. (0.3m)
Color Rendering Index (CRI): ±95
Country of Origin: USA
Light Output: ~400 per ft. (~1,312+ (lumens) per meter)*
Warranty: 5 Year Limited
Certifications: UL E479339
Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.
*BAA/BABA Compliance: Made in the USA through domestic assembly using globally sourced PCB boards and LED chips. Final qualification for BAA/BABA is subject to an approved nonavailability exemption for these imported components (as of March 2025, no domestically produced equivalents are available).
Reviews
There are no reviews yet.
Be the first to review “StripFlexLED™ White LED Strip Lights Pro V2 CV Series” Cancel reply
The SIRS-E StripFlexLED™ White LED strip V2 exists as a flexible system that allows users to create their own installation designs. Users can cut the strip to their desired length and use compatible connectors to create new connections while they use the strip to design their lighting layout.
SIRS-E StripFlexLED™ White LED strip provides continuous dimming capabilities that range from complete darkness to full brightness when used with its supported controllers and dimmers. The following dimming methods work with the system:
DMX PWM
RF PWM
0–10V dimmers
Triac dimmers
MLV and ELV systems
The system enables users to create ideal lighting conditions that suit their specific environments.
