Direct DMX RGB UL LED Strip Pixel-by-Pixel Control 2.0

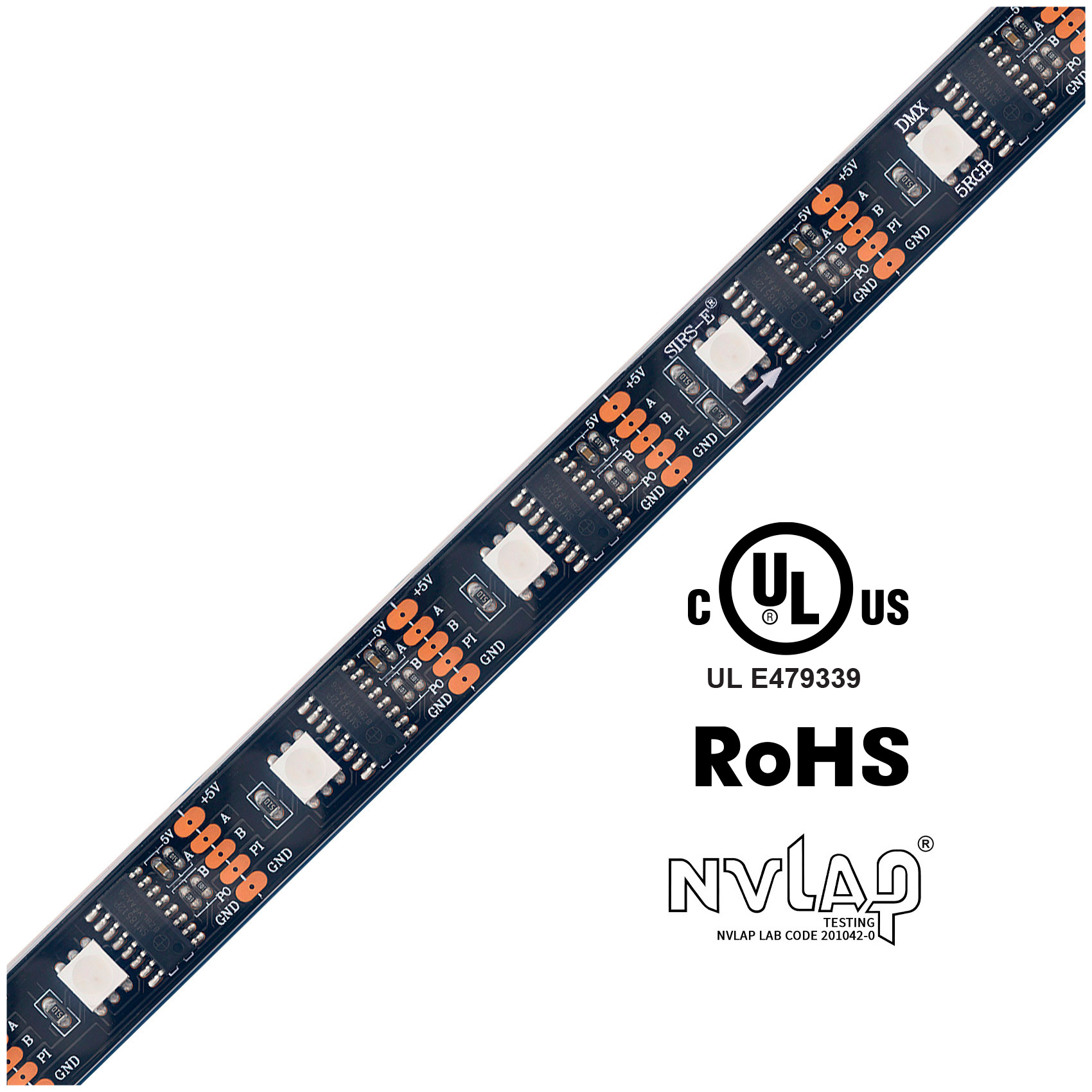

SIRS-E® Direct DMX RGB LED strip utilizes direct DMX512A signal to control a pixel by pixel programmable flexible tape light via the software of your choosing. The red, green, and blue diodes can be mixed to potentially produce over a million color rendering options. This model requires 5V power from both ends, is cuttable every LED, and mountable using 3M adhesive tape.

NVLAP: National Voluntary Laboratory Accreditation Program is a National Institute of Standards and Technology program in the USA which provides an unbiased third-party test and evaluation program to accredit laboratories in their respective fields to the ISO 17025 standard. NVLAP is in compliance with ISO 17011. Wikipedia


Downloadable Documentation:

This information complies with the following standards and reports: IES LM-79-2008, ANSI C82.77-10-2014, CIE 13.3-1995, CIE 15-2004, ANSI C78.377-2017, IES TM-30-2018, ANSI/IES LM-80-2021, Specification of Small Chromaticity Differences by David L. MacAdam.

Accessories: DMX Address Writer – DMX-STRIP-PROG2 Quick Guide

Input Voltage: 5V DC Cut / Readdress: Cuttable and Readdressable at every pixel1
Control Method: DMX 512 Control – Pixel by Pixel Reel Length: 16.4 ft | 5 m
Power Consumption: 2.00 W/ft Max Run Length: 16.4 ft | 5 m, powered from both sides
LED Chip Type: High Quality SMD 3-Diode RGB Segment Width: 0.56 in (14.3 mm)
LED Density: 10 LEDs/ft | 34 LEDs/m Luminous Flux Maintenance: 75,000 hrs2
Channels / Pixels: 3 Channels per Pixel (510 Channels Total)4 Dimming: DMX512 Control – Pixel by Pixel
Board Type / Color: 3 oz Density Copper, Black PCB Environmental: IP 67/68 – Dry and Damp Locations
Operating Temperature: -20°F to 120°F Warranty: 5 Year Limited

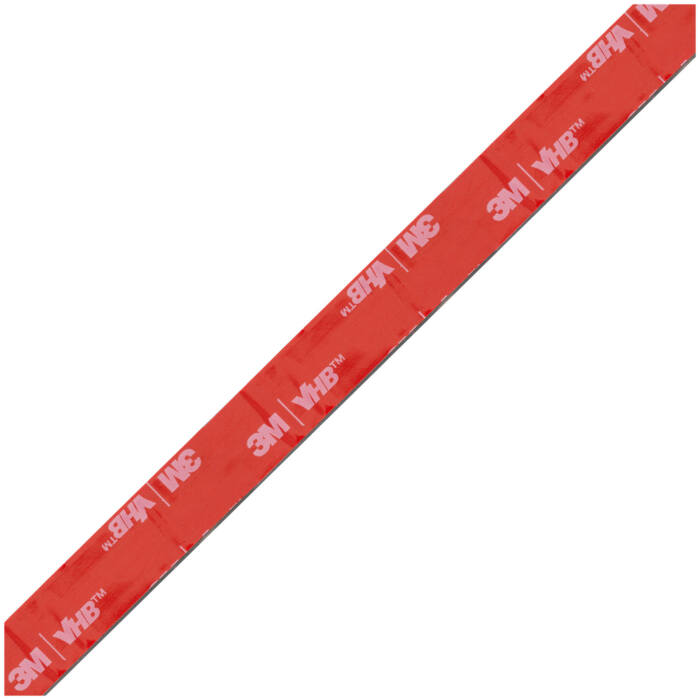

Mounting: Non-porous; 3M Adhesive Mounting Tape Certifications: UL Listed E479339
For more information, please see the pdf DMX RGB Datasheet here.


Product Photometrics – Red, Green, and Blue Diodes3

Color Diode Peak Wavelength (nm) Dominant Wavelength (nm) CIE (x, y) Luminous Flux (lm/ft) Luminous Efficacy (lm/W)
RED 632 nm 622 nm (0.6929, 0.3054) 24 lm/ft 16.31 lm/W
GREEN 516 nm 519 nm (0.1360, 0.7072) 54 lm/ft 36.8 lm/W
BLUE 463 nm 468 nm (0.1362, 0.0564) 13 lm/ft 9.1 lm/W

For Mobile display only – Above table title – Color Diode, Peak Wavelent (nm), Dominant Wavelength (nm), CIE (x, y), Luminous Flux (lm/ft), Luminous Efficacy (lm/W)

Product Photometrics – All Four Colors at Full Intensity3

Nominal CCT (K) Luminous Flux (lm/ft) Luminous Efficacy (lm/W) CIE (x, y) Duv CRI Fidelity (Rf) Gamut (Rg)
22000 K 87 lm/ft 22.9 lm/W (0.2396, 0.2344) +0.0004 35.0 48 104

For Mobile display only – Above table title – Nominal CCT (K), Luminous Flux (lm/ft), Luminous Efficacy (lm/W), CIE (x, y), Duv, CRI, Fidelity (Rf), Gamut (Rg)


Legacy Product

DMX RGB LED Strip Direct DMX512A Pixel-by-Pixel Control
5050-5RGB-34XX Data Sheet
DMX Filter
Legacy SKU #5050-5RGB-34XX


IP67 – Waterproof, IP68 – Waterproof
