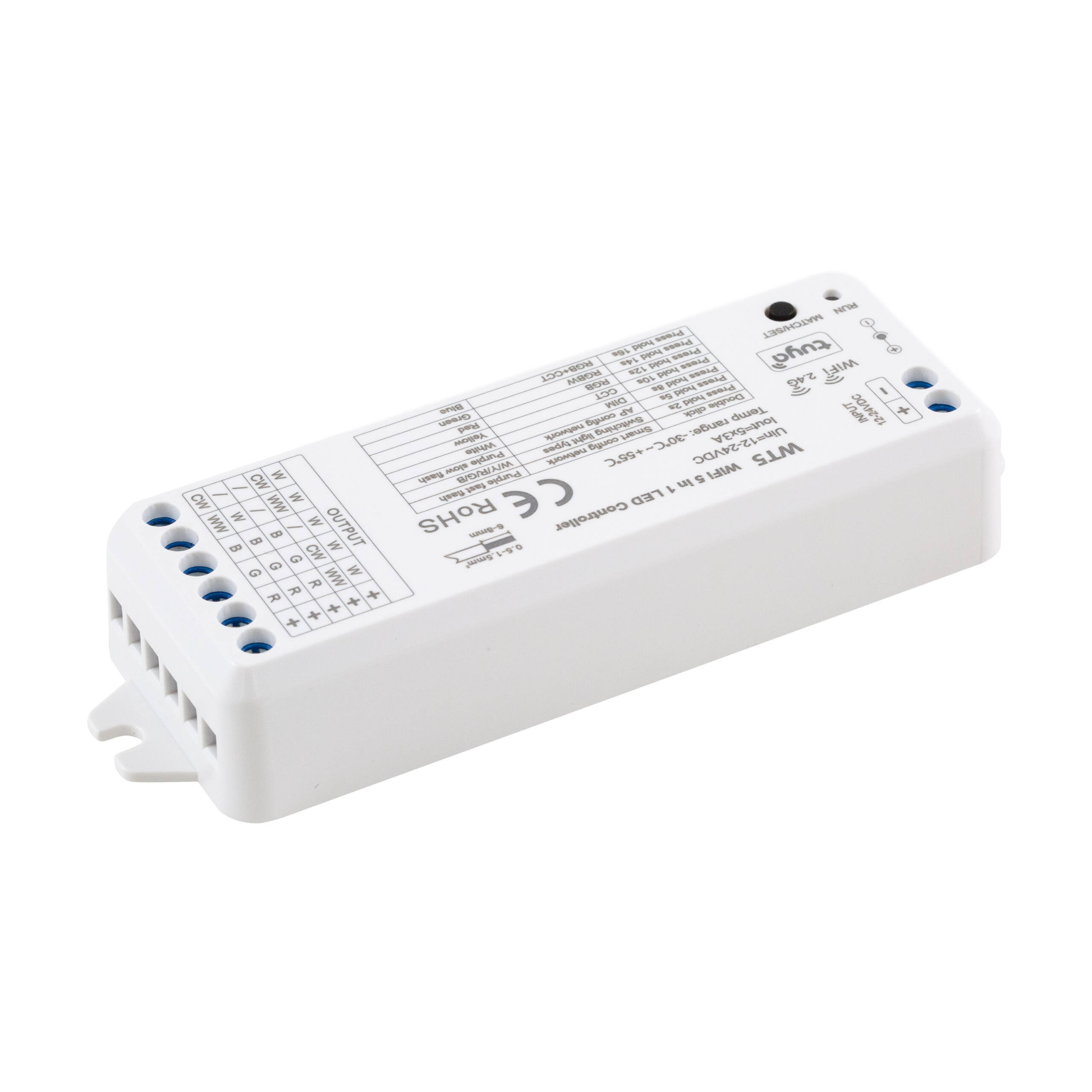

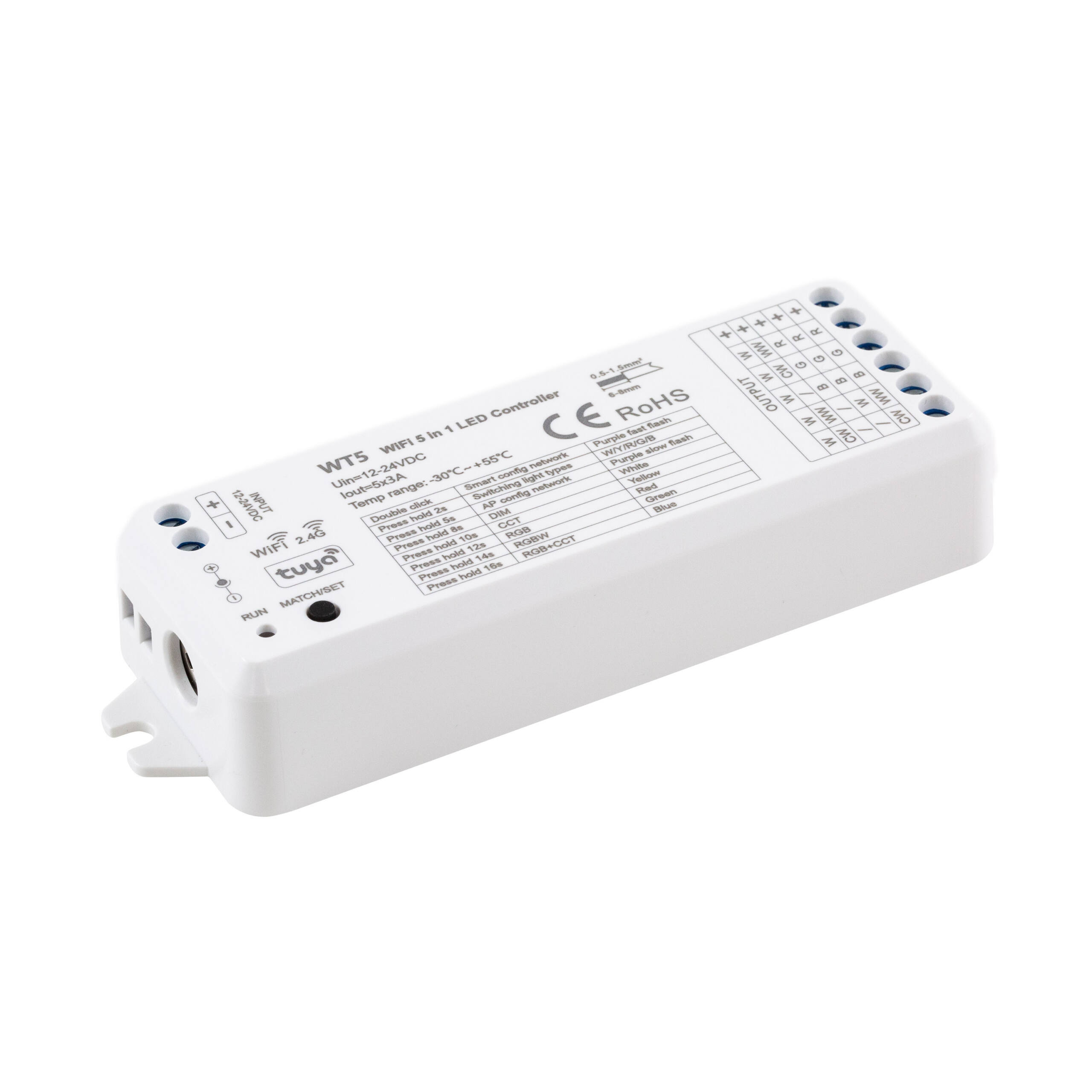

WT5 WiFi & RF 5-in-1 LED Controller: Universal Smart Lighting Management
The WT5 WiFi and RF 5-in-1 LED Controller delivers ultimate flexibility for low-voltage LED strip installations. Engineered with a versatile 5-in-1 control module, this single unit can manage RGB, RGBW, RGB+CCT (Tunable White), dual-color temperature (CCT), or single-color LED strips. Equipped with a standard DC power socket input and five channels of constant voltage output, it adapts easily to complex multi-color setups as well as straightforward architectural accent lighting.
Smart automation is simple with native Tuya Smart App cloud control. Once connected to your 2.4GHz network, you can control power states, adjust RGB hues, fine-tune white color temperatures, and dim brightness levels from anywhere. The app unlocks advanced scheduling options, including delayed on/off timers, customized scene creation, and rhythm-synced music modes that transform your space into an interactive lighting experience. For hands-free convenience, the WT5 integrates seamlessly with major voice assistants, including Amazon Alexa, Google Assistant, Tmall Genie, and Xiaodu.
For reliable localized operation, the controller pairs seamlessly with optional RF 2.4G remote controls. Users configure the light output type via an onboard button prior to app pairing, ensuring exact signal mapping for both cloud-based and RF commands.
Beyond standard control, the WT5 functions as an integrated WiFi-to-RF converter bridge. Using the Tuya Smart App, a single WT5 unit can wirelessly transmit signals to synchronize one or multiple RF LED controllers or dimming drivers across your space. Additionally, selectable 3-second fade transitions provide smooth, eye-pleasing dimming curves when switching lights on or off.
Whether you are designing commercial interior accents, residential kitchen illumination, or custom smart home lighting, the WT5 5-in-1 LED Controller offers the comprehensive connectivity, smart automation, and precise performance required for modern lighting projects.
Technical Parameters
|
| Input Voltage: 12-24V DC |
Input Current: 15.5A |
| Output voltage: 5 x (12-24)VDC |
Output current: 5CH,3A/CH |
| Output power: 5 x (36-72)W |
Output type: Constant voltage |
| Operation temperature: Ta: -30 °C ~ +55°C |
Case temperature (Max.): Tc: +85°C |
| Input signal: WiFi + RF 2.4GHz |
Control distance: 30m(Barrier-free space) |
| Dimming gray scale: 4096 (2^12) levels |
Dimming range: 0 -100% |
| Dimming Curve: Logarithmic |
PWM frequency: 1000Hz (default) |
| Size: L120 x W43 x H27mm |
Gross weight: 0.073kg |
| EMC standard: EN IEC 55015/EN IEC 61547, ETSI EN 301 489-1/-3/-17 |
Safety standard: EN 61347-1/-2 |
| Radio Equipment: ETSI EN 300 440, ETSI EN 300 328 |
Certification: CE RoHS |
| Warranty: 5 years |
Protection: Reverse polarity, Over-heat, Short circuit |
