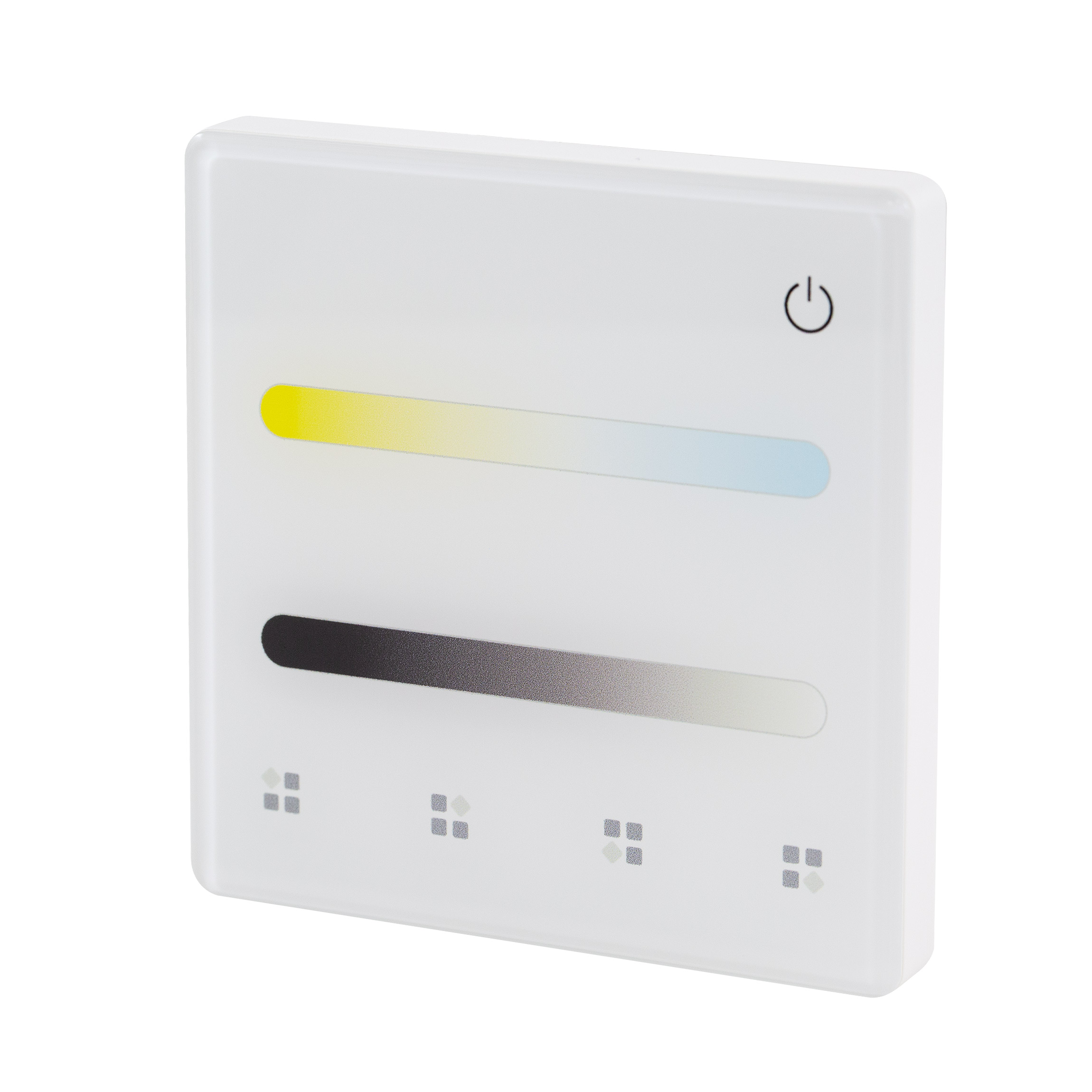

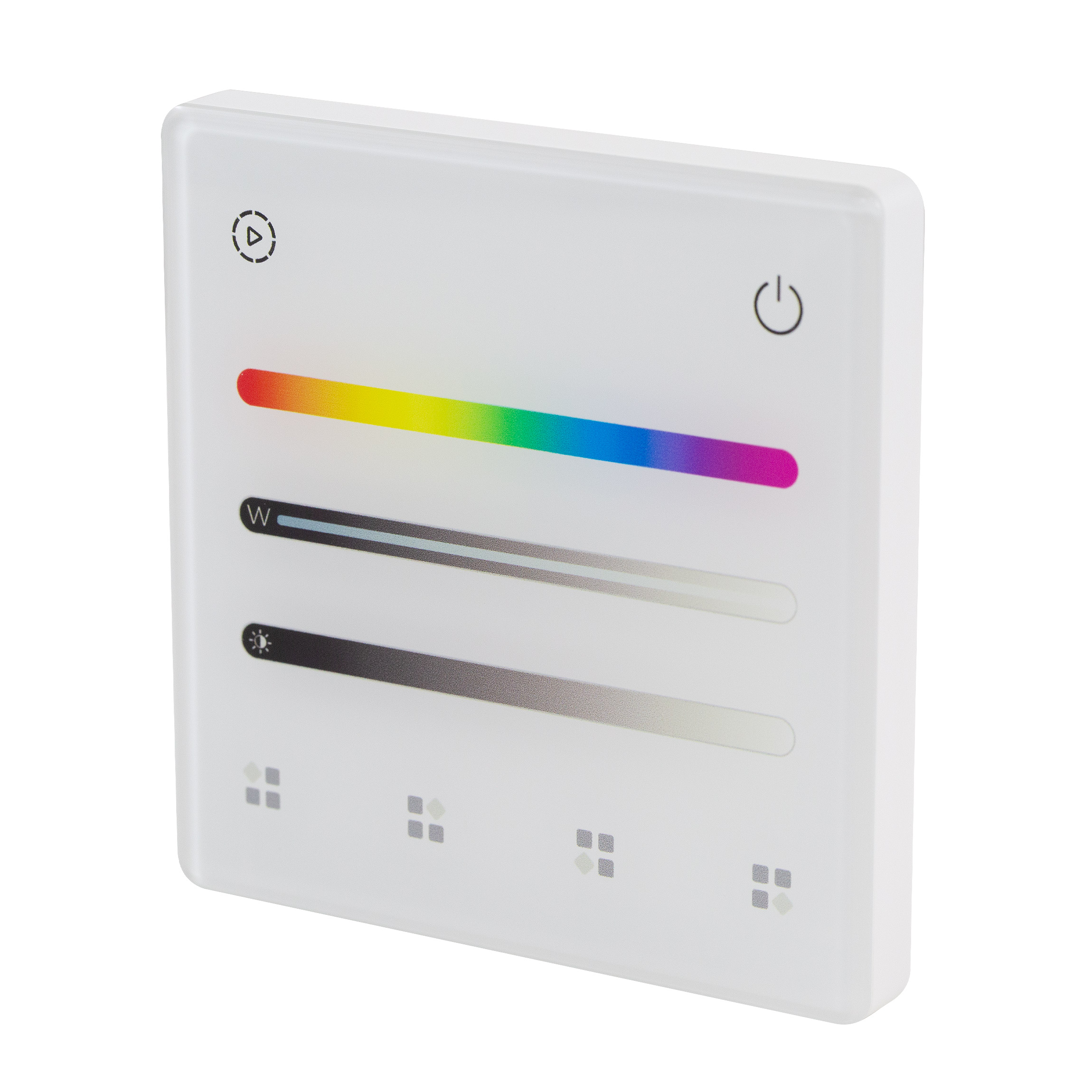

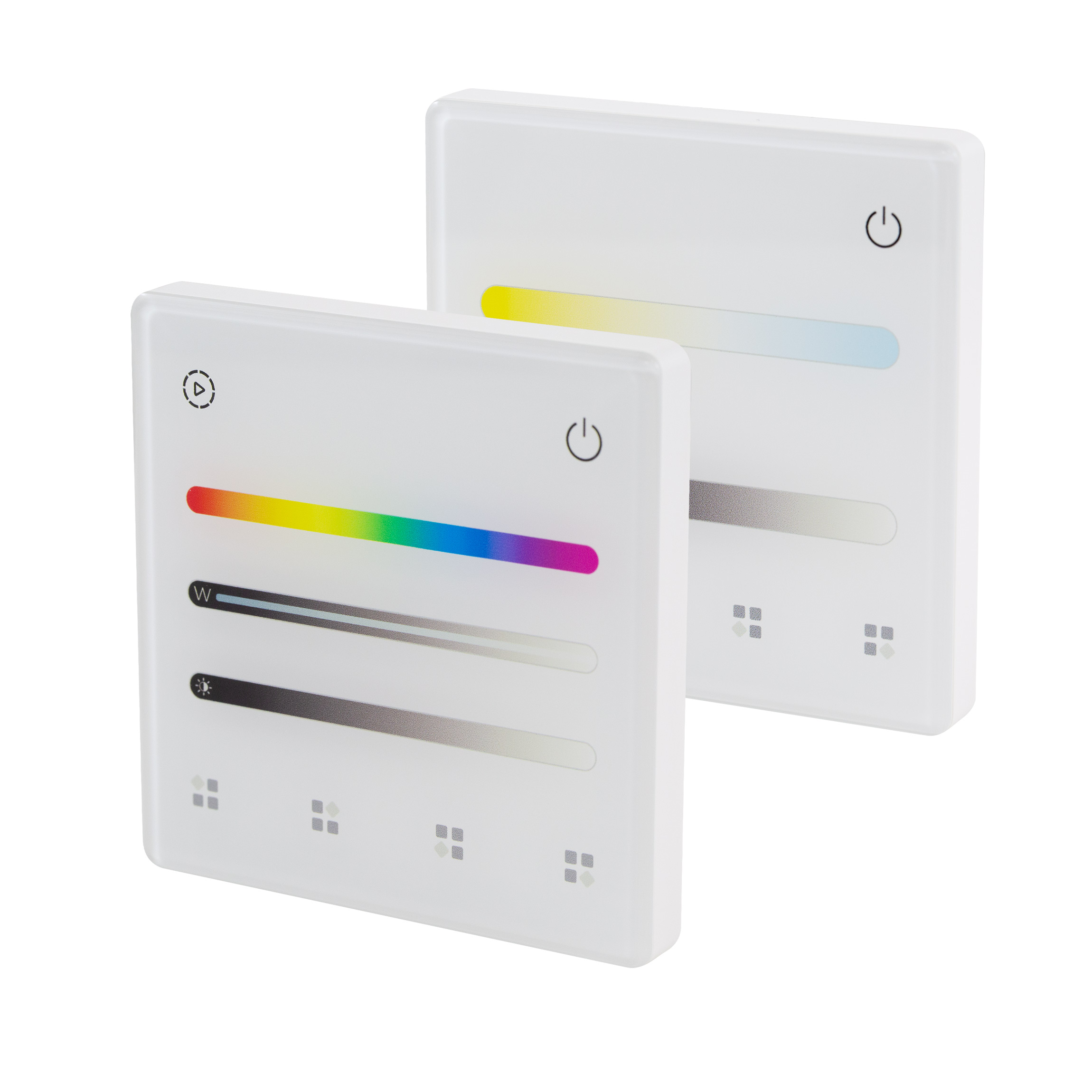

RF Wall Mount Touch Panel Remote Control: Wireless Precision Lighting Management
The RF Wall Mount Touch Panel Remote Control offers a sleek, modern solution for controlling low-voltage LED strip lighting setups. Built with an ultra-sensitive, high-strength glass surface, this wall-mounted remote provides smooth, tactile control across 1 to 5 color channels. As a result, it works seamlessly with single-color, dual-color CCT, RGB, RGBW, and RGB+CCT installations. Available in white and black glass finishes, it fits beautifully into modern residential interiors, commercial spaces, and architectural environments.
Engineered for maximum versatility, each touch panel can wirelessly pair with one or multiple RF 2.4G LED controllers. The high-precision multi-touch slider allows for intuitive, real-time adjustments of brightness levels and color palettes. Therefore, you can make changes instantly with a simple swipe. In addition, you can program the panel for 4-zone or 4-scene control depending on your system configuration. This gives you the power to independently manage multiple lighting areas or save custom lighting presets for instant recall.
Installation is completely hassle-free. Because the touch panel operates entirely on long-lasting CR2032 battery power, it requires no complex electrical wiring, wall cutting, or gang box preparation. Furthermore, you can easily surface-mount the unit to any wall using double-sided adhesive or screws. Alternatively, you can simply keep it as a portable controller that moves anywhere in the room.
Every touch key features an integrated LED indicator that provides immediate visual feedback during operation. Consequently, you get precise command execution even in dark environments. By combining durable glass craftsmanship, flexible wireless range, and effortless surface installation, this RF Wall Mount Touch Panel Remote Control delivers the high-end design and dependable performance required for modern smart lighting systems.
Technical Parameters
|
| Output signal: RF(2.4GHz) |
Work voltage: 3VDC(CR2032) |
| Work current: <4mA |
Standby current: <15μA |
| Standby time: 1 year |
Remote distance: 30m (Barrier-free space) |
| Operation temperature: Ta: -30°C ~ +55 °C |
Case temperature (Max.): Tc: +65°C |
| IP rating: IP20 |
Size: L100 x W92 x H16.5mm |
| Gross weight: 0.142kg |
EMC standard: EN IEC 55015/, EN IEC 61547, ETSI EN 301 489-1/-3 |
| Safety standard: EN 61347-1/-2, EN 62493 |
Radio equipment: ETSI EN 300 440 |
| Certification: CE RoHS |
Warranty: 5 years |
