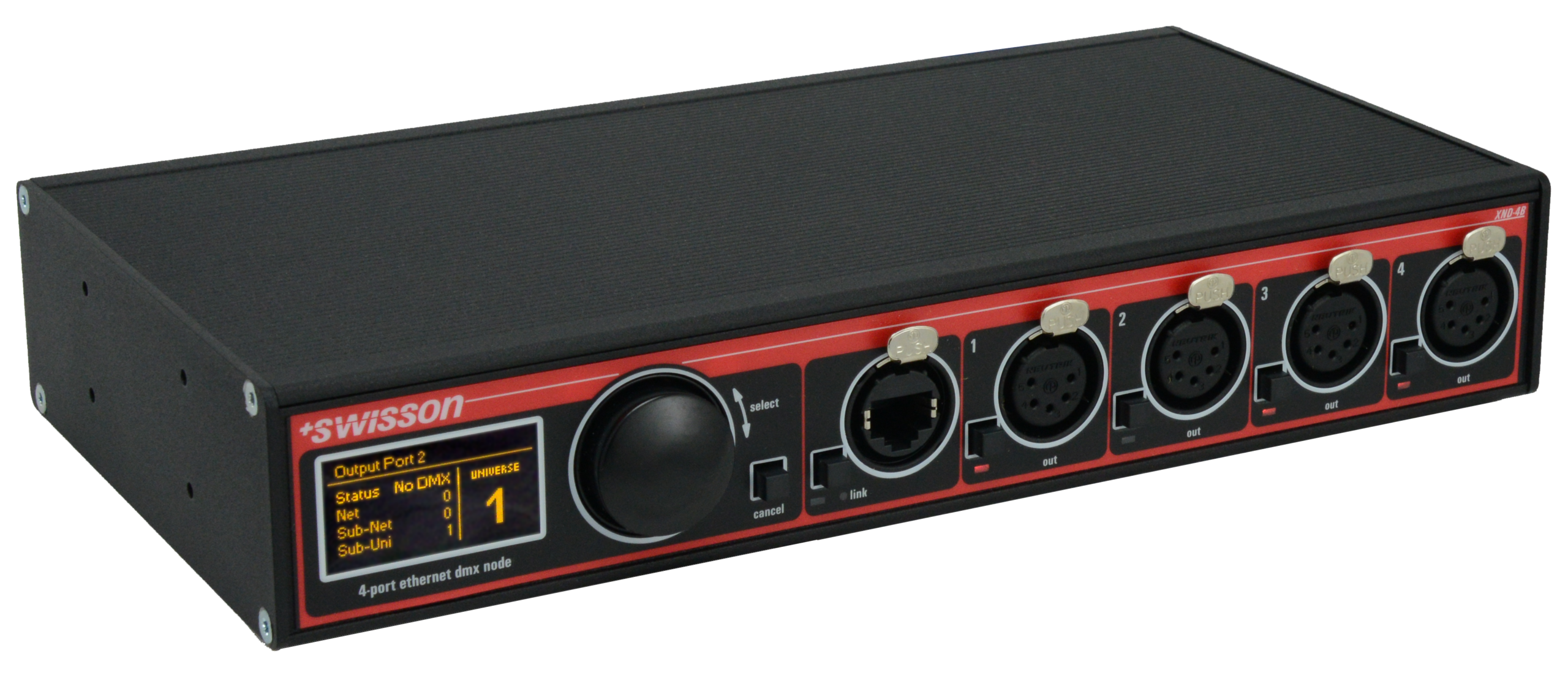

Swisson XND 4-Port Ethernet DMX Node


Swisson XND 4-Port Ethernet DMX Node

The XND-4 is an Art-Net to DMX converter that supports four universes of DMX via its four individually optically isolated DMX outputs. The XND-4 is all you need in order to take advantage of your console’s networking capability since most major lighting consoles are capable of transmitting Art-Net data. The best part is that you will be able to transmit a vast number of universes over one single network cable.


  • Art-Net to DMX converter for 4 independent universes
  • Supports Art-Net I, II and 3
  • 4 individually optically isolated DMX outputs
  • Graphic display and encoder knob for easy configuration and precise status information
  • Quick access button for each DMX output port for quick selection of ArtNet universe
  • Neutrik powerCON input and output
  • Universal power supply


  • Control light shows from an Art-Net capable lighting desk
  • Control lighting fixtures using an Art-Net enabled PC software or a mobile device
  • Merge the light controlling data sent from two Art-Net controllers

Quick Links:



XND-4B3, XND-4B5, XND-4B8, XND-4R3, XND-4R5, XND-4R8
