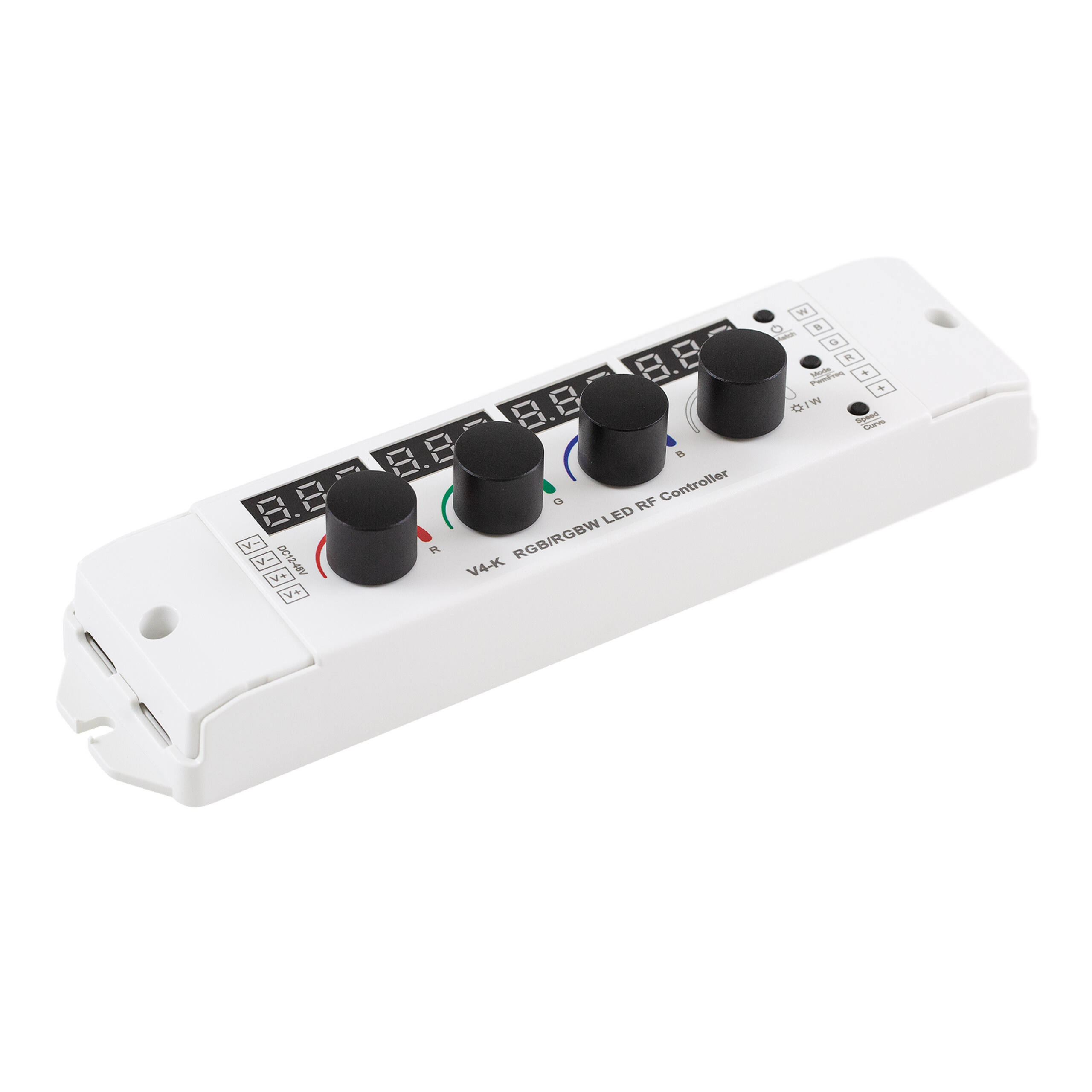

V4-K 4 Knob RGB/RGBW LED RF Controller Features and Interface
At the core of the user interface are four precision rotary control knobs. These physical knobs allow you to adjust individual Red, Green, Blue, and White channels directly on the panel. Additionally, a clear digital numeric display and responsive push keys make navigation and parameter adjustments straightforward.
For wireless expansion, the unit pairs seamlessly with optional 2.4GHz single-zone or multi-zone RF remote controls. Consequently, you can operate your lighting system locally via the physical knobs or wirelessly from across the room.
Advanced Output Settings and Smooth Dimming
The controller delivers superior lighting quality through high-resolution PWM technology:
- Flicker-Free Performance: Offers 256 levels of smooth 0–100% dimming without any visual flashing or flicker.
- Selectable PWM Frequencies: Adjust PWM output between 1000Hz, 2000Hz, 4000Hz, or 8000Hz. Higher frequencies eliminate camera flicker in video studios and broadcast spaces.
- Custom Dimming Curves: Switch easily between logarithmic and linear dimming curves to match human eye perception or specific driver requirements.
- Built-in Dynamic Modes: Choose from 10 pre-programmed dynamic modes, including smooth gradual transitions and fast color jump patterns.
Complete System Integration
Pair the V4-K with our high-performance [LED Strip Lights] for vibrant color output, or connect it with our [24V LED Power Supplies] to complete your system installation.
Overall, the V4-K controller provides physical knob control, rich dynamic features, and flexible wireless pairing. It delivers the ultimate hands-on lighting management solution for modern RGBW installations.
Compatible
RGB / RGBW Touch Wheel RF Remote Controller
The RT4 and RT9 RGB/RGBW RF Remote Controllers offer dynamic color control for low-voltage LED lighting systems. Manufacturers build these handheld remotes for seamless integration with RGB and four-channel RGBW LED receivers.
