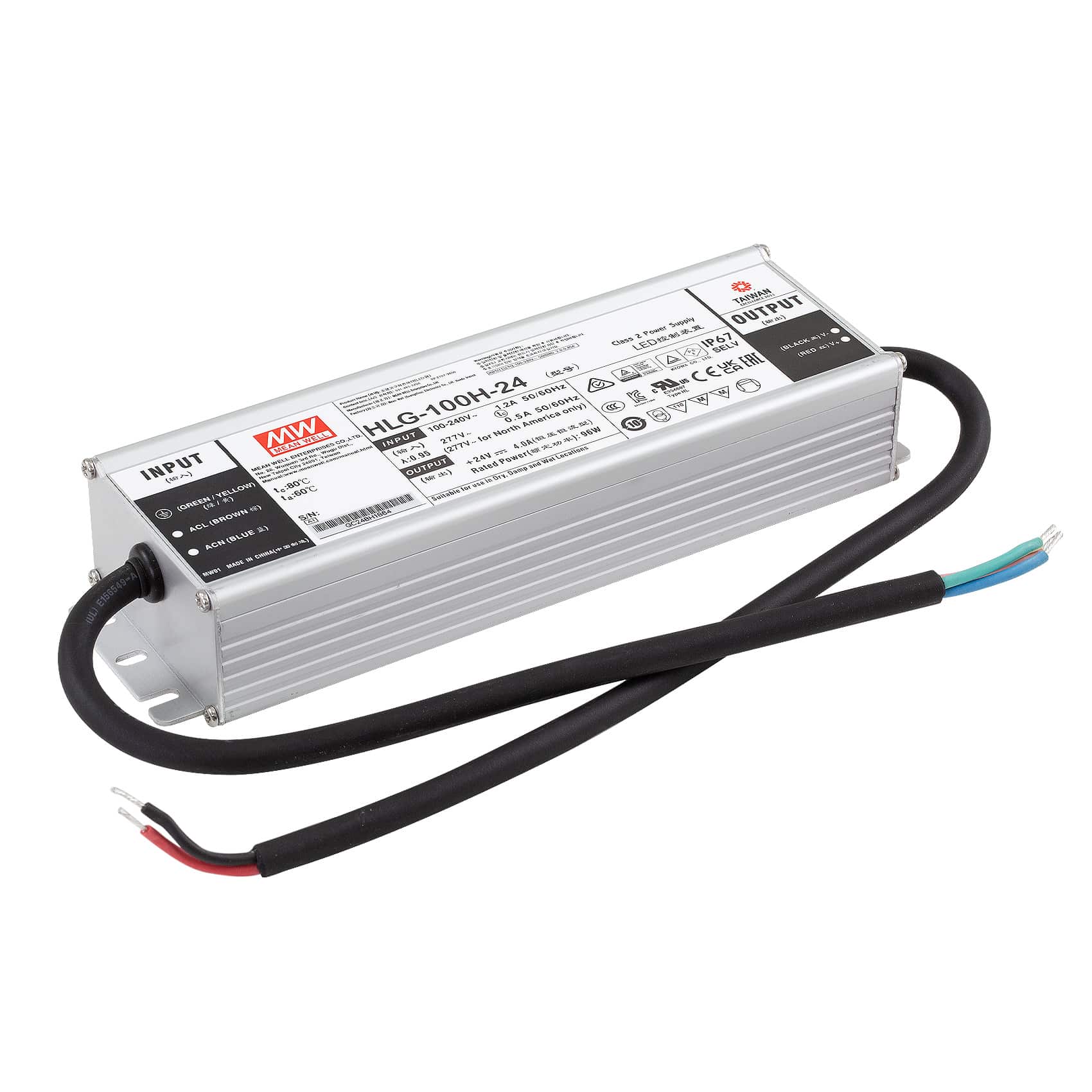

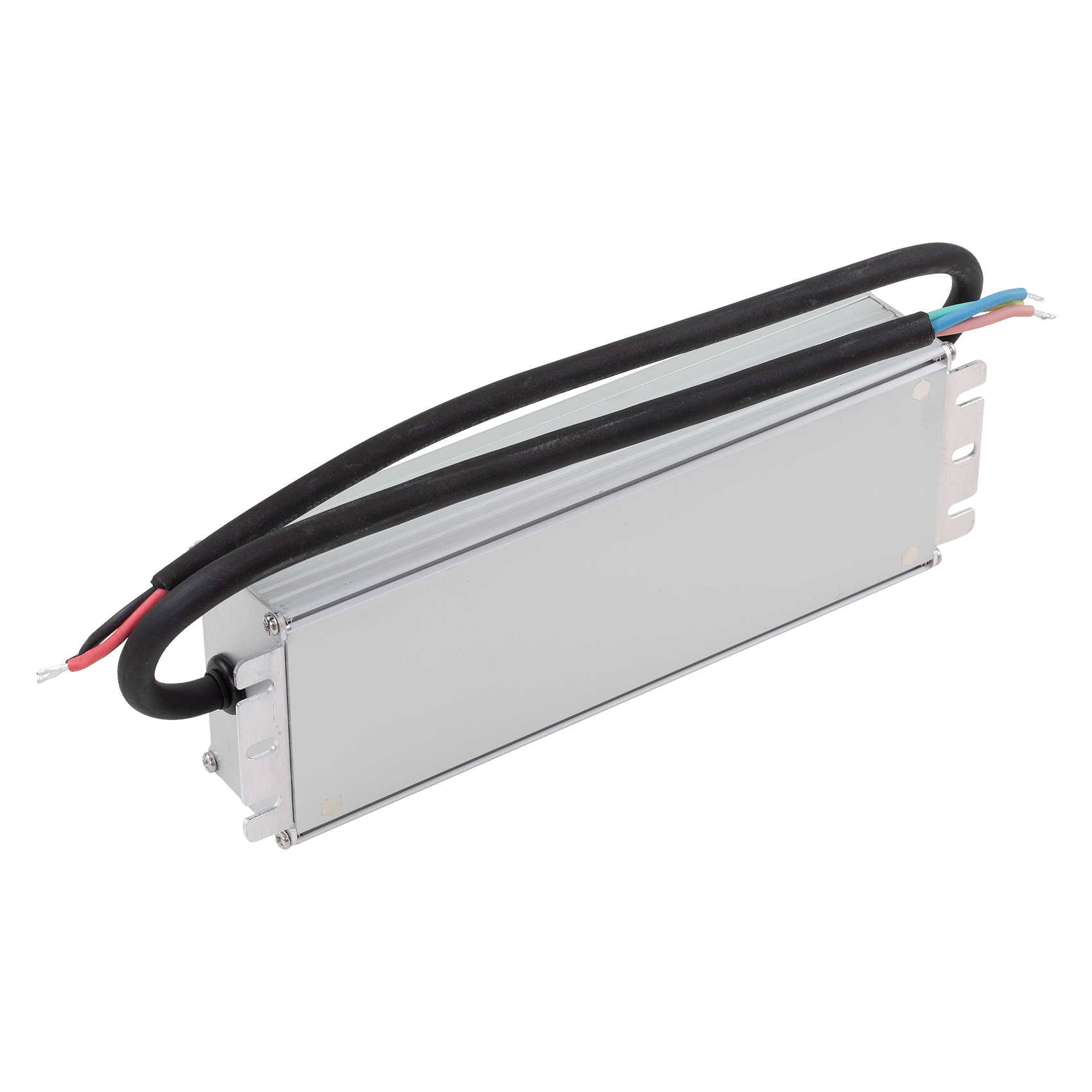

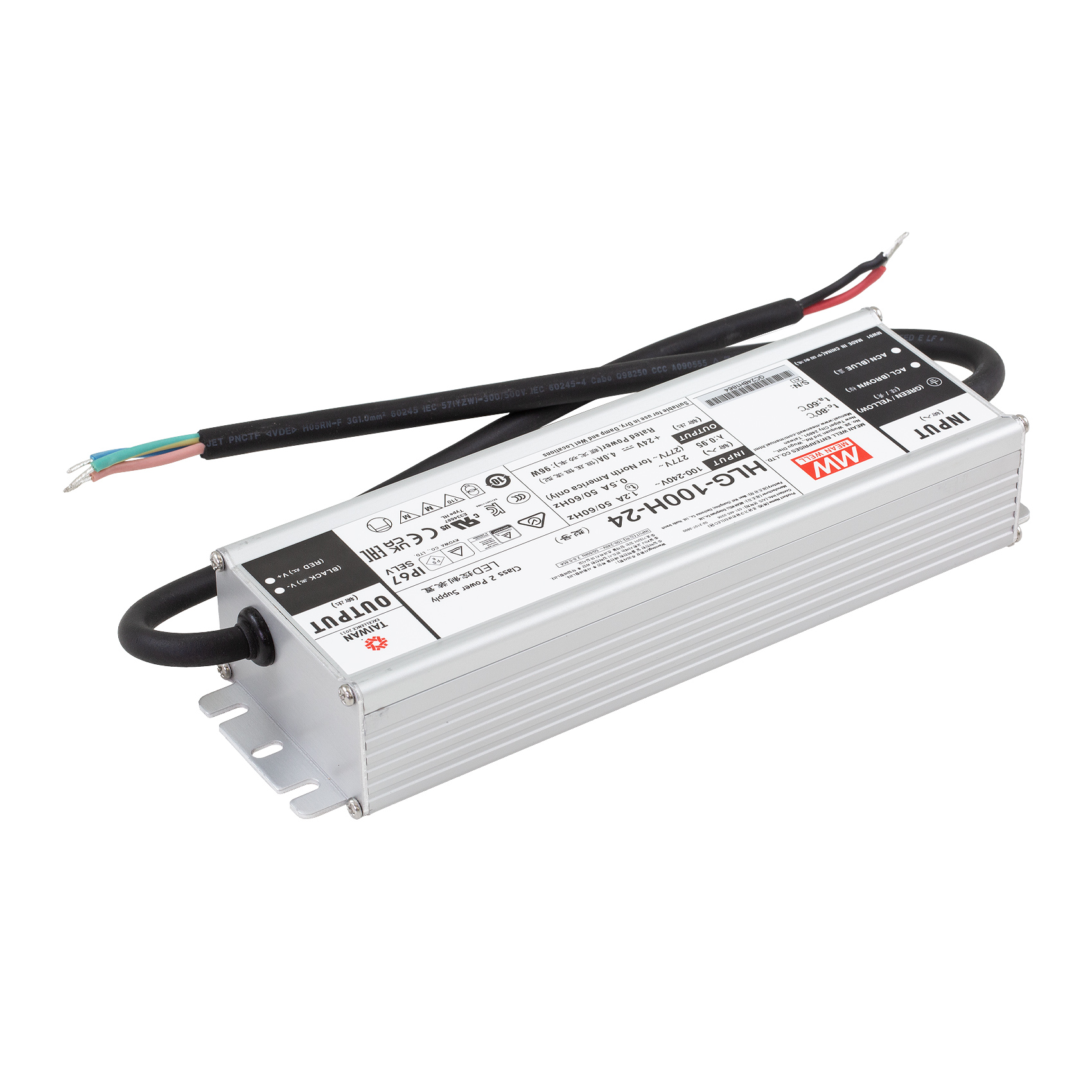

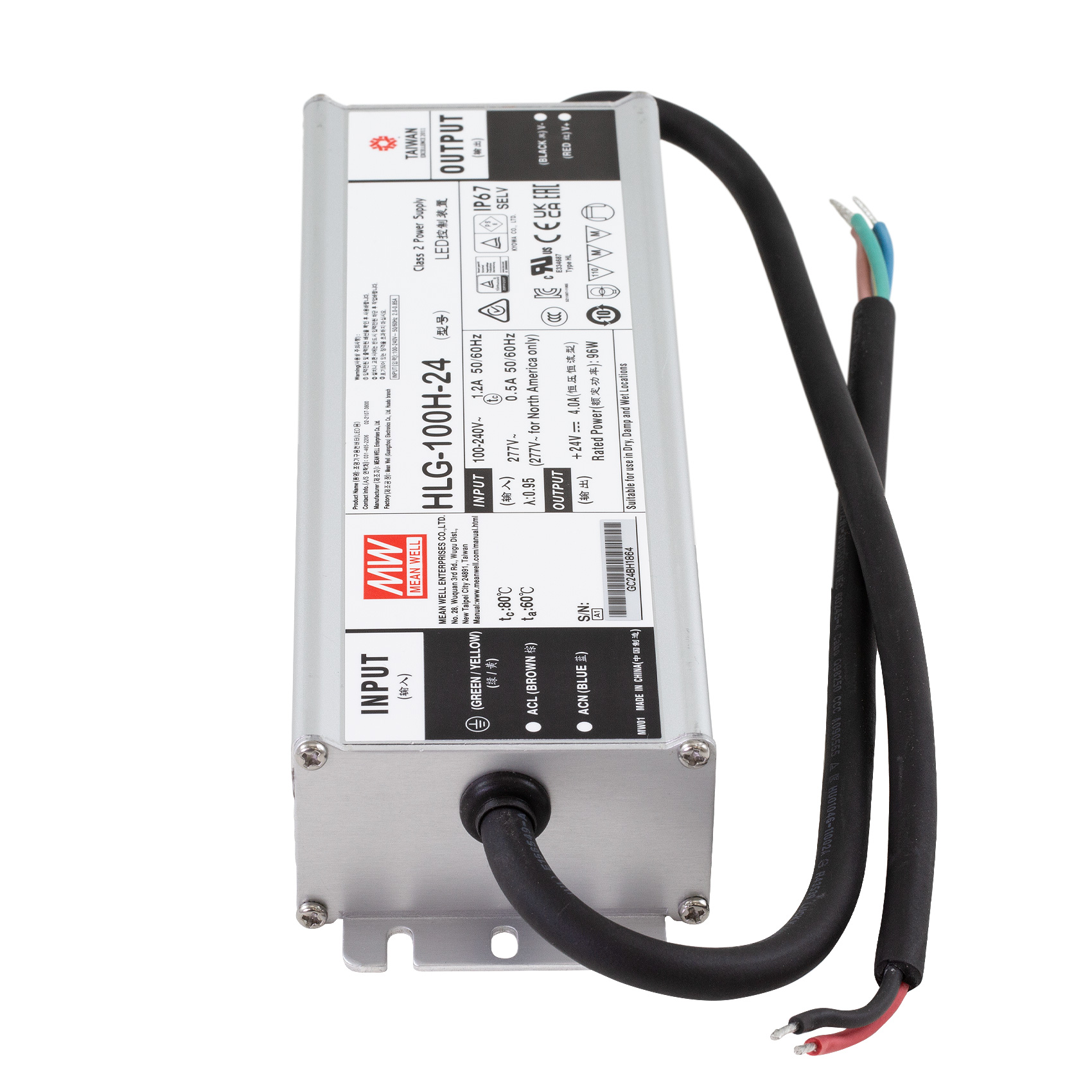

The HLG-100H Series is a premium 100W AC/DC LED driver designed to deliver reliable, high-efficiency power for demanding lighting applications. Featuring dual-mode Constant Voltage and Constant Current output, this versatile driver supports rated output voltages from 20V to 54V, making it adaptable to a wide range of LED systems.
Engineered for durability and performance, the HLG-100H operates across a wide 90–305VAC input range and achieves efficiency up to 93%. Its fanless design and robust metal housing allow stable operation in extreme environments, with a working case temperature range of -40°C to +80°C. With IP65/IP67 protection, it is ideal for both indoor and outdoor installations.
The series includes built-in active PFC, comprehensive protection features (over-current, over-voltage, over-temperature, and short circuit), and optional 3-in-1 dimming (1–10V, PWM, or resistance) for maximum design flexibility. Adjustable models include built-in potentiometers for fine-tuning output voltage and current.
With a typical lifetime exceeding 62,000 hours, the HLG-100H is a dependable solution for LED street lighting, high-bay lighting, parking lot lighting, greenhouse systems, fishing lamps, and other industrial or commercial lighting applications.
Built for performance. Designed for longevity. Trusted for professional lighting systems.
Mean Well HLG-100H Specifications
- Input Voltage: 90~305Vac
- Output Voltage (CV mode): 24Vdc
- Output Max Current (CV mode): 4 Amps
- Output Current (CC mode): 4 Amps
- Constant Current Operating Range: 12~24Vdc
- Max Power: 96 Watts
Key Features
- 96W AC/DC LED driver
- Constant Voltage + Constant Current dual-mode output
- Wide input range: 90–305VAC
- Available output voltages: 20V, 24V, 30V, 36V, 42V, 48V, 54V
- High efficiency up to 93%
- Built-in active PFC (Power Factor Correction)
- IP65 / IP67 rated for indoor and outdoor use
- Durable metal housing with Class I design
- Fanless design for silent operation
- 3-in-1 dimming (1–10VDC, 10V PWM, or resistance) on select models
- Adjustable output (via built-in potentiometer on A/AB models)
- Protection: Short circuit, over-current, over-voltage, over-temperature
- Operating temperature range: -40°C to +80°C
- Typical lifetime > 62,000 hours
