Isolation

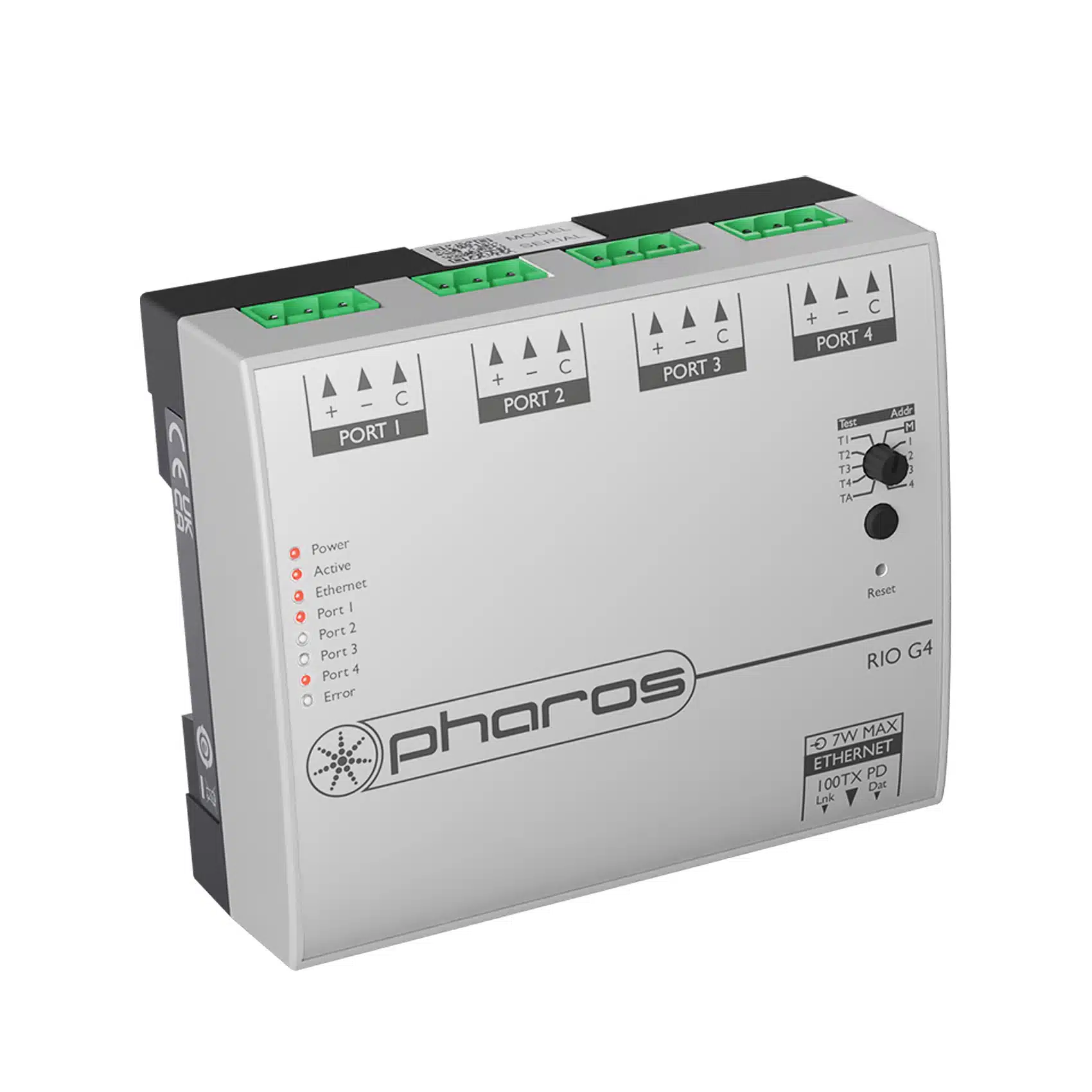

Featuring four DMX512 output ports for direct fixture control, the RIO G4 provides independent 2 kV galvanic isolation per port. This shields the main control circuitry and individual output lines from electrical faults, earth potential rise, and ground loop interference.
Power-over-Ethernet

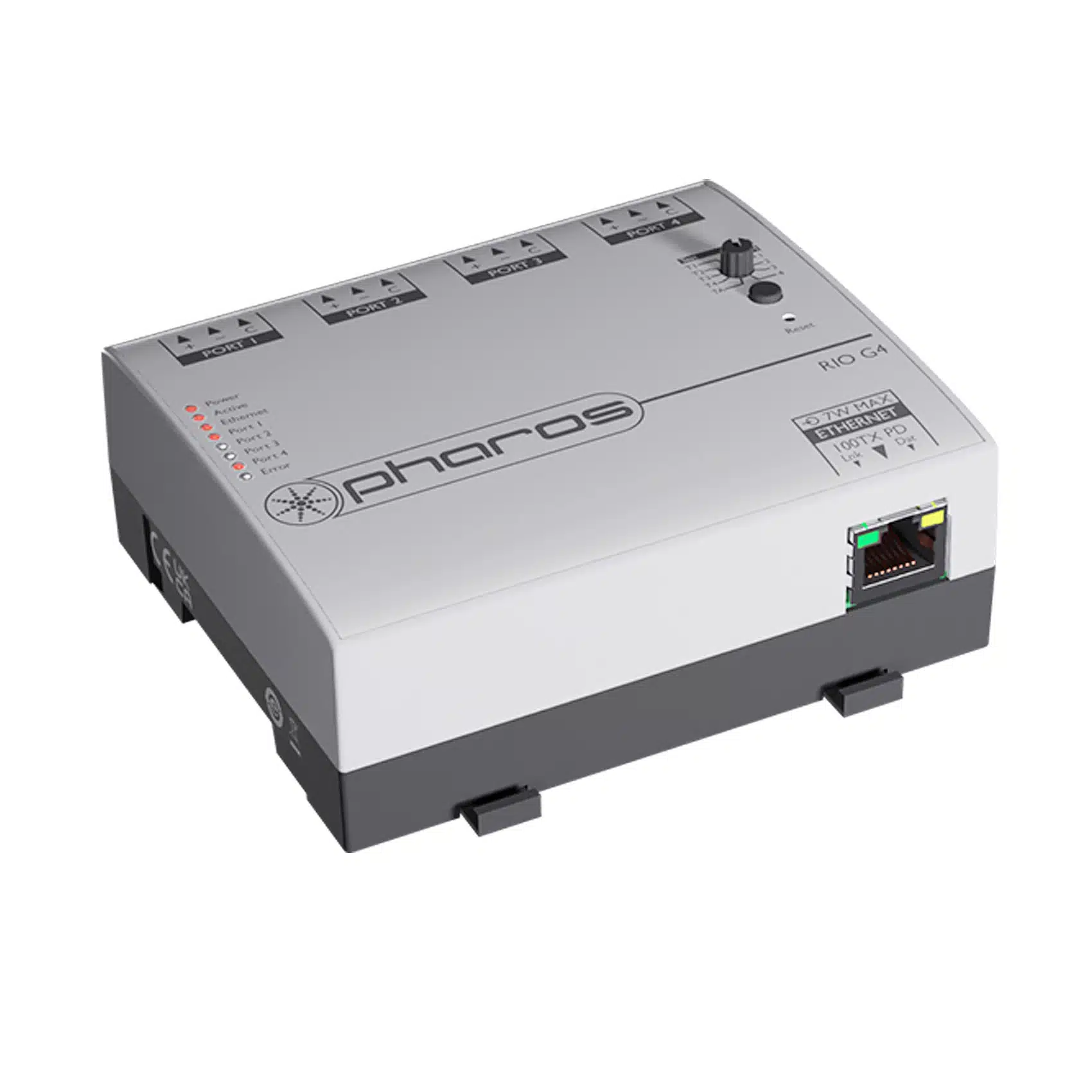

Designed as a Power-over-Ethernet (PoE) endpoint, the RIO G4 can be installed anywhere in your layout using a single network drop to handle both data transmission and system power.
Installer Friendly

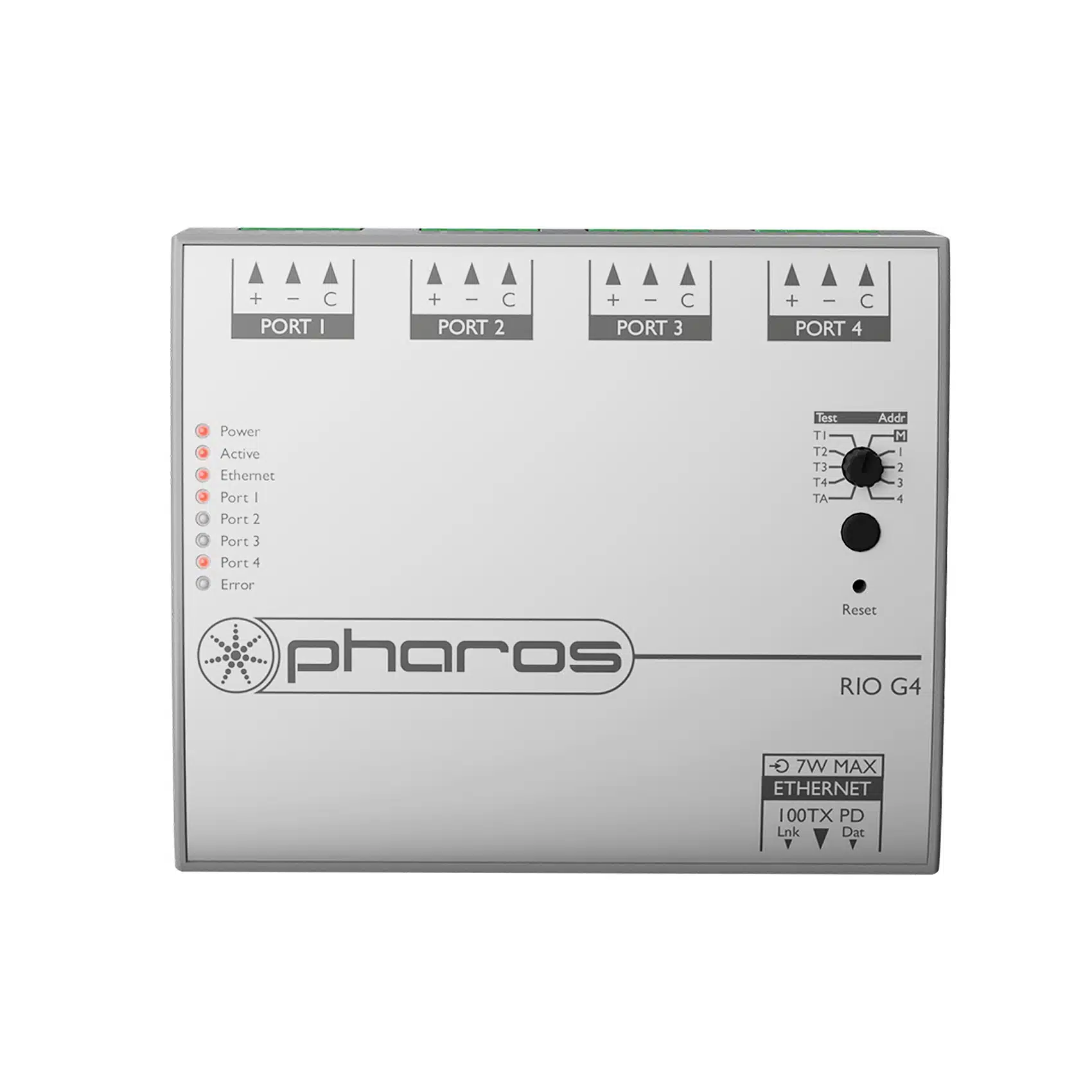

Built for permanent hardware setups, it includes 5.08 mm (0.200″) plug-in rising-clamp terminals, a space-saving plastic housing, and seamless DIN-rail mounting. An integrated thumbwheel allows for quick unit addressing and simple activation of onboard DMX test routines.
Protection
equipped with self-healing DMX outputs, the RIO G4 protects connected hardware against wiring mistakes, short circuits, and voltage surges. Once the external error is resolved, the ports automatically reset and resume normal DMX output.
Network Connectivity
Integrates smoothly with any Pharos controller, communicating over standard Ethernet protocols.
Reliable
Solid-state engineering delivers dependable continuous 24/7 operation. Includes a configurable “hold last look” feature that maintains output at a 5 Hz refresh rate if network data transmission is interrupted.
Scalable
Easily scale your setup by pairing multiple remote modules on a single network, tailoring port availability to project needs (overall capacity governed by the host controller).
Interfaces
|
| Ethernet: RJ45 socket for 100Base-TX Ethernet with Link/Data LEDs; Static IP or DHCP; Power-over-Ethernet (PoE) |
DMX: Four DMX512 ports (USITT E1.11-2008), RDM Compatible* |
| *Install-friendly 0.200″ (5.08mm) plug in rising clamp connectors (included) |
Protocols
|
| DMX: DMX512 supports 512 channels output per port |
RDM: Supports discovery and addressing via Pharos software |
System Limits
|
| An Express system comprises one Express Control and optional devices. |
In Project: Maximum four RIO G4 assigned to an Express Control |
Specifications
|
| Power: PoE (IEEE802.3af, Class 2), 7 W max |
Required: Any Pharos Controller |
| Configuration: Pharos Express 2.0 or later |
Addressing: Rotary selector switch |
| Temperature: 0°C to 50°C (32°F to 122°F) |
Humidity: 10–90% relative, non-condensing |
| Ingress: IP40 |
Physical: 6-unit wide DIN-rail mounting enclosure (35/7.5 rail)
10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in)
0.2 kg (0.5 lbs) |
Shipping: 6-unit wide DIN-rail mounting enclosure (35/7.5 rail)
10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in)
0.2 kg (0.5 lbs) |
Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in), 0.4 kg (0.9 lbs) |
| Recovery: Hardware watchdog and recessed reset button |
|
Warranty and Certifications
|
| Warranty: 5 year |
Certifications: CE compliant, UKCA compliant, UL/cUL listed. |
