DALI Control
Every port on the RIO D4 manages up to 64 DALI devices, complete with support for commissioning via native DALI discovery and configuration tools. Combine multiple RIO D4 units across a single Ethernet network to deliver flexible, distributed DALI management for larger installations.
Power-over-Ethernet

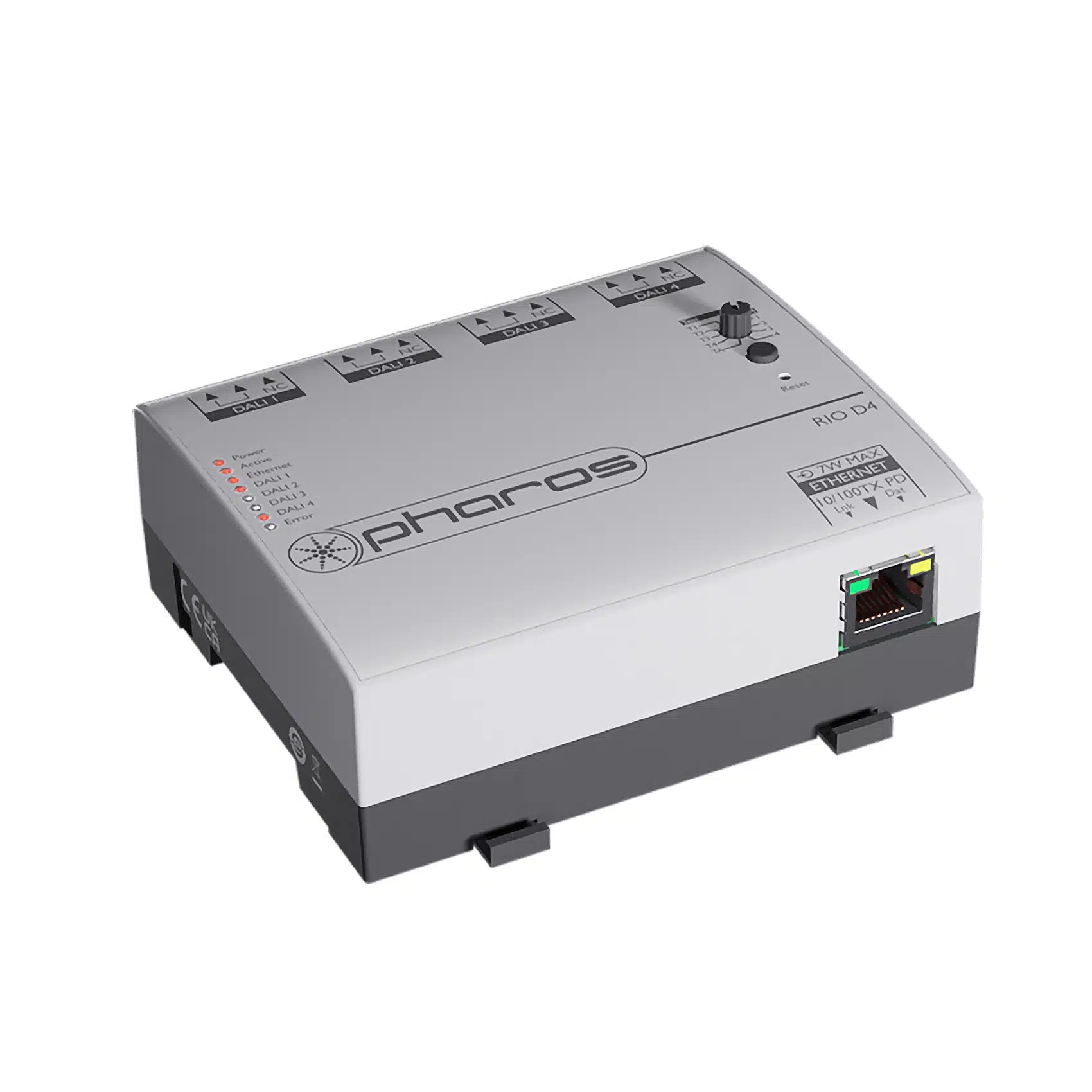

Operating as a Power-over-Ethernet (PoE) unit, the RIO D4 can be positioned wherever needed using a single cable to supply both operational power and network data.
Installer Friendly

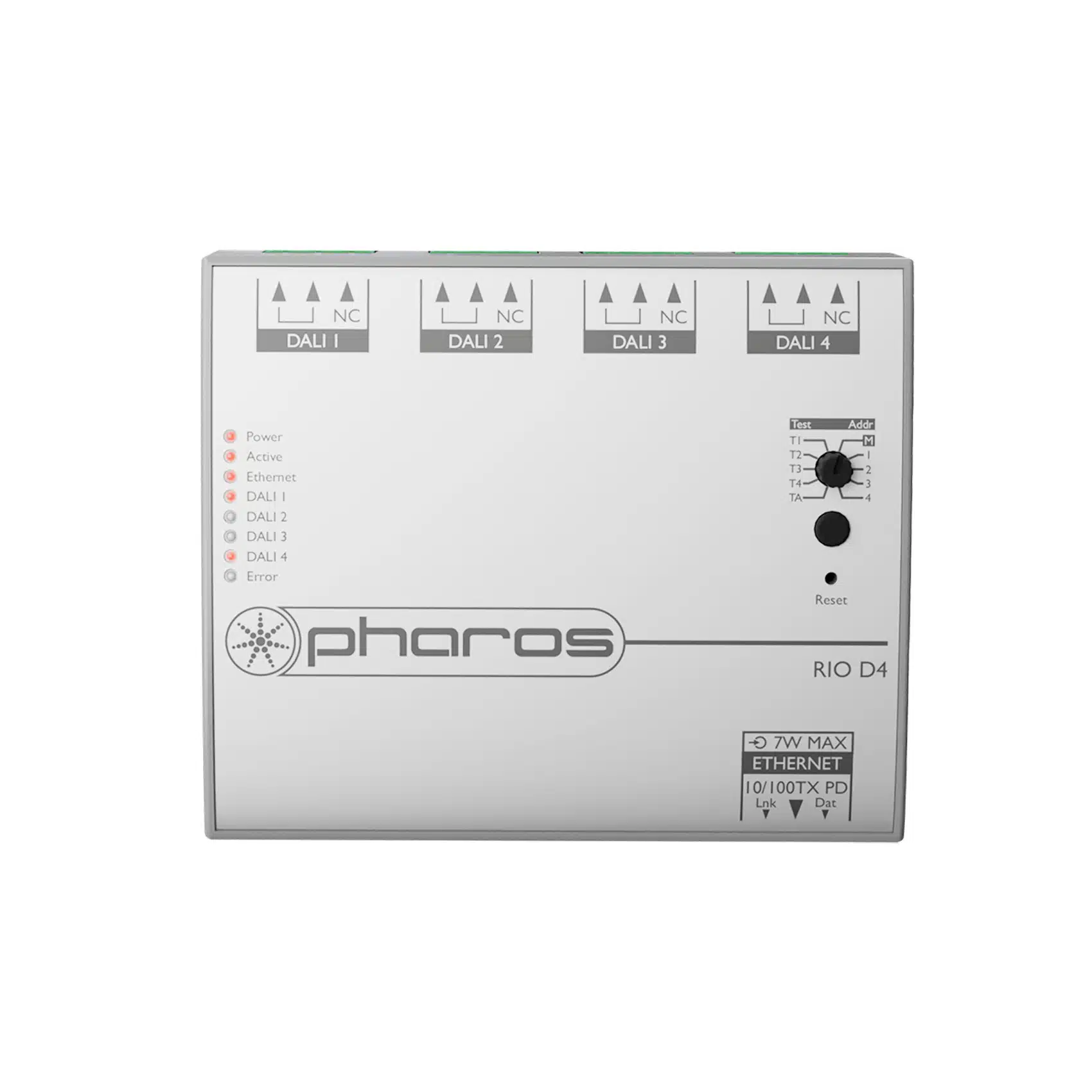

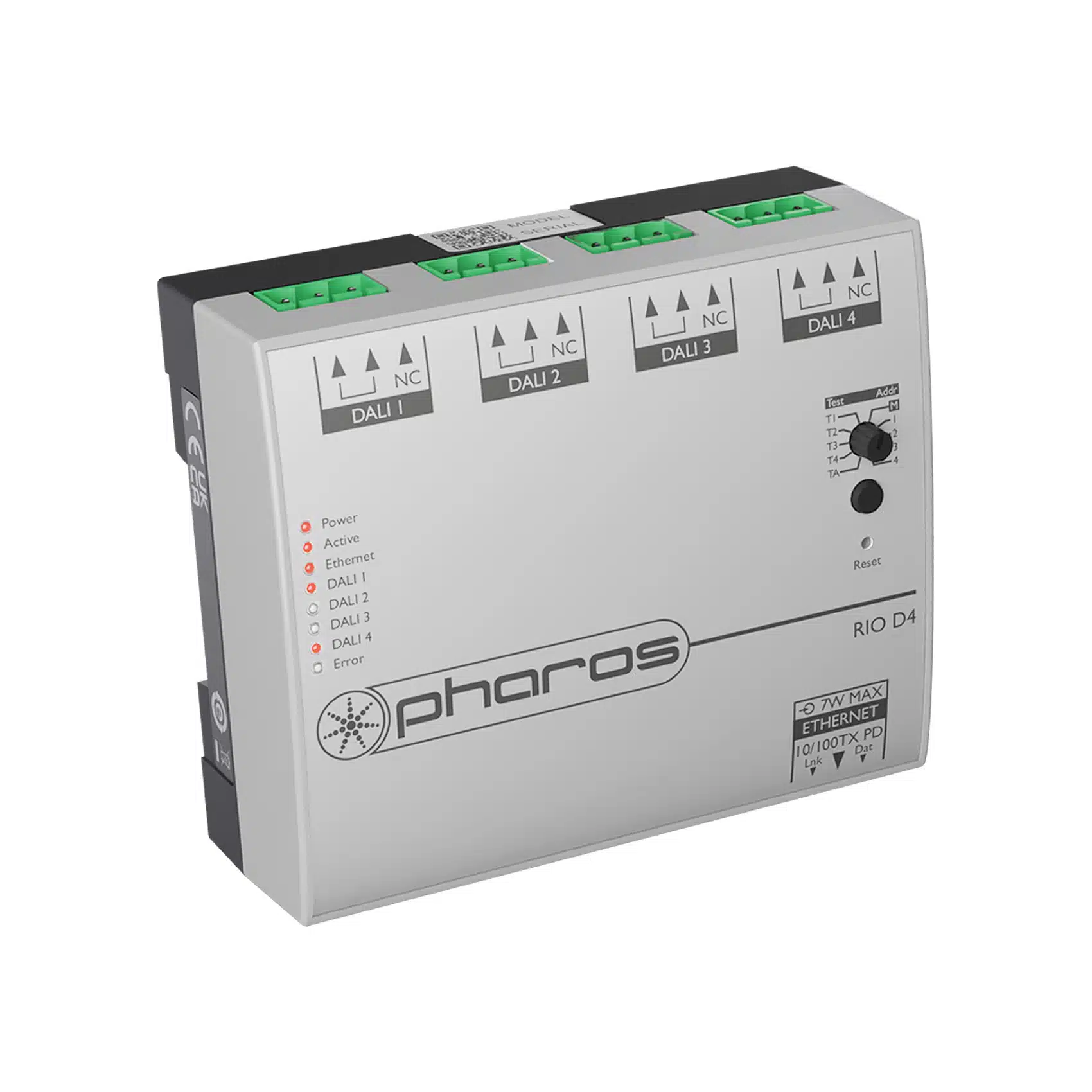

Built for fixed setups, it features user-friendly 5.08 mm (0.200″) plug-in rising-clamp terminal blocks, a space-saving plastic housing, and quick DIN-rail mounting. A built-in rotary wheel allows for easy hardware addressing and quick activation of test modes.
DALI Commands
The RIO D4 seamlessly integrates with third-party DALI setups by monitoring incoming DALI traffic from external controllers or wall panels to trigger lighting actions on your Pharos system.
Network Connectivity
Communicates smoothly with Pharos controllers across a standard Ethernet network using industry-standard protocols.
Reliable
Durable, solid-state construction ensures continuous, hassle-free 24/7 performance without moving parts.
Scalable
Effortlessly link multiple remote units on the same network infrastructure to tailor the system size to your exact project needs (maximum capacity determined by the primary controller).
Capabilities
|
| DALI Control: Control for up to 64 DALI devices per port including device discovery and configuration |
DALI Receive: Receive DALI messages from other controllers such as wall panels or occupancy sensors |
Interfaces
|
| Ethernet: RJ45 socket for 10/100Base-TX Ethernet with Link/Data LEDs; Static IP or DHCP; Power-over-Ethernet (PoE) |
DALI: Ports can transmit and receive DALI commands*
Supports DALI standards: EN 62386-101:2009, EN 62386-102:2009, EN 62386-202:2009, EN 62386-209:2011 |
| *Install-friendly 0.200″ (5.08mm) plug in rising clamp connectors (included) |
System Limits
|
| An Express system comprises one Express Control and optional devices. |
In Project: Maximum four RIO D4 assigned to an Express Control. |
Specifications
|
| Power: PoE (IEEE802.3af, Class 2), 7 W max |
Required: Any Pharos Controller; DALI power supply per port |
| Configuration: Pharos Express 2.0 or later |
Addressing: Rotary selector switch |
| Recovery: Hardware watchdog and recessed reset button |
Temperature: 0 °C to 50 °C (32 °F to 122 °F) |
| Humidity: 10–90 % relative, non-condensing |
Ingress: IP40 |
Physical: 6-unit wide DIN-rail mounting enclosure (35/7.5 rail)
10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in)
0.2 kg (0.5 lbs) |
Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in), 0.4 kg (0.9 lbs) |
| Recovery: Hardware watchdog and recessed reset button |
|
Pharos controller required
DALI power supply per port required |
Warranty and Certifications
|
| Designed and manufactured in the UK, with a 5-year warranty, where quality and reliability are our top priority. |
| Warranty: 5 year |
Certifications: CE compliant, UKCA compliant, UL/cUL listed. |
