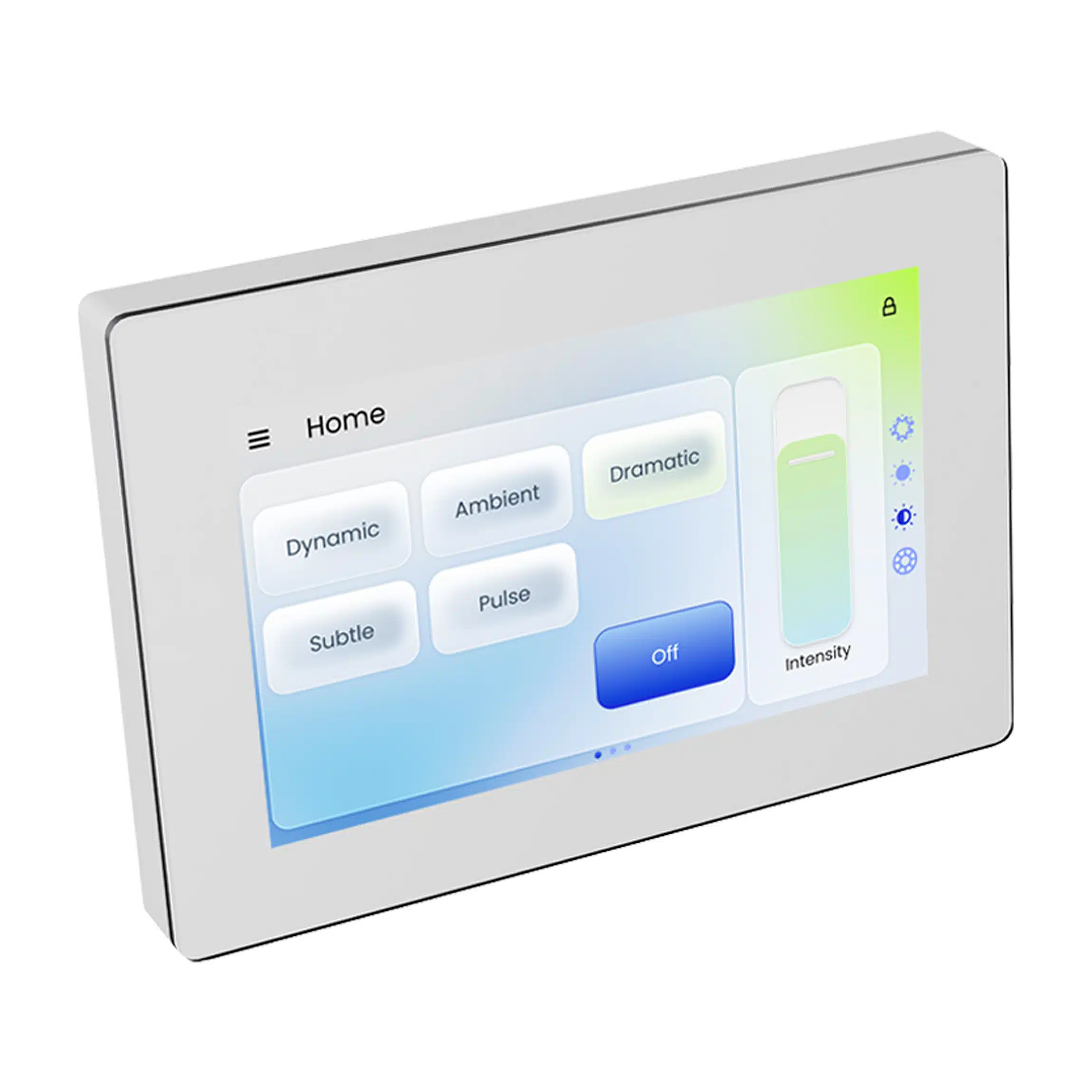

Pharos Express Touch 5

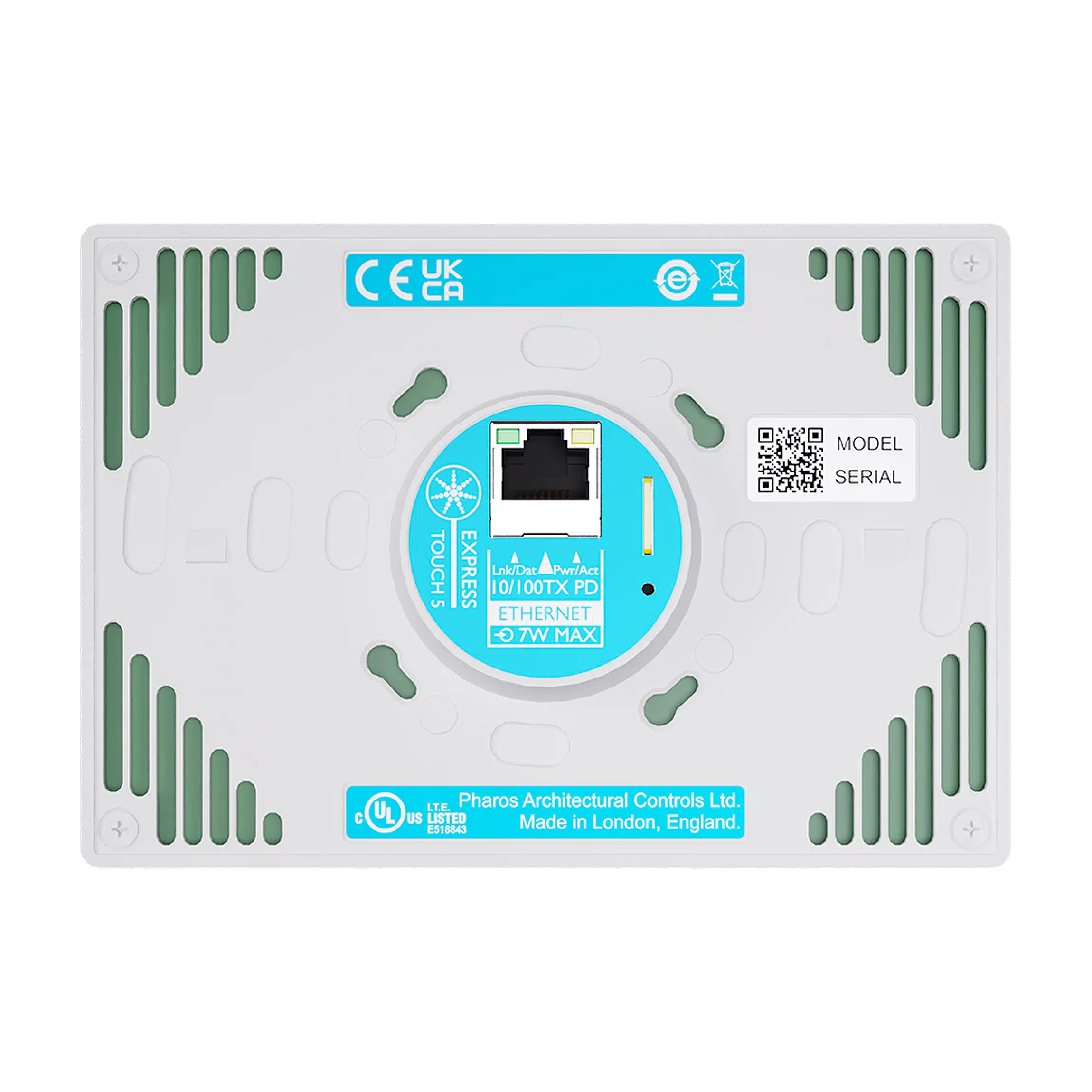

Pharos Express Touch 5 - Back side

XPT-XX

Pharos Express Touch 5

Pharos

Sleek and elegant, Express wall stations boast a smooth, uninterrupted glass front, offering a stunning control interface for permanent wall-mounted setups that demand frequent user interaction.

Easily control your lighting by activating scenes and adjusting intensity for each Space.

  • XPT 5 B: Express Touch 5 Black (5” wall mount touchscreen interface)
  • XPT 5 W: Express Touch 5 White (5” wall mount touchscreen interface)

Downloadable Documentations
Pharos Express Touch 5 Datasheet
Installation Instructions
Universal Mounting Plate Template (A4)
Universal Mounting Plate Template (US Letter)

Categories: Tags: , , , ,


Capabilities
Orientation: Landscape and portrait Layouts: Automatically generated page layouts to suit each project’s settings from specific project Spaces
Themes: Multiple themes to choose from for automatically generated pages, controls, and navigation Skins: Within each theme there are different skins to choose from to fine tune appearance
Secure access: Keypad option for PIN-code entry with automatic lock Commissioning: Interface provided from linked Express Control, commission with Pharos Express 2.0 or later
Project Management: Optionally enable interface elements to manage project tags


Interfaces
Ethernet: Static IP or DHCP Touchscreen: 5” capacitive touch; 800×480 24bpp; 650 cd/m2


Specifications
Power: PoE (IEEE802.3af, Class 0) 7W typical Required: Pharos Express Control
Configuration: Pharos Express 2.0 or later Data Storage: Removable MicroSD card (supplied)
Recovery: Hardware watchdog and recessed reset button Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 10–90% relative, non-condensing Ingress: IP40
Physical: Wall mounted, partly recessed with a custom mounting plate that supports UK 1 and 2-gang 35mm, EU 35mm or US 2.5” backbox (mounting plate included)
14 x 9.7 x 2.8 cm (5.5 x 3.8 x 1.1 in)
0.25 kg (0.6 lbs) (excluding mounting plate)		 Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in), 0.5 kg (1.1 lbs)
Reset: Recessed reset button
Pharos Universal Mounting Plate 5” included
Pharos Express Control required


Warranty and Certifications
Designed and manufactured in the UK, with a 5-year warranty, where quality and reliability are our top priority.
Warranty: 5 year Certifications: CE compliant, UKCA compliant, UL/cUL listed.

Options

XPT 5 B, XPT 5 W
