ProDMX Cables 4 Conductors 22 AWG Shielded DMX Cable

The SIRS-E® ProDMX-CAB is a professional-grade DMX512 cable designed for maximum reliability and high-speed digital data transmission in demanding lighting environments. Built in the USA using 22 AWG stranded bare-copper conductors, this cable provides exceptional signal conductivity and minimal signal loss over long cable runs. Featuring a 120-ohm nominal impedance, low-capacitance data pairs, and an aluminum Mylar foil shield with a 24 AWG drain wire, the ProDMX cable ensures clean, interference-free transmission for stage, architectural, and commercial lighting control.

Key Cable Features & Specifications:

• Conductors: 4 Conductors, 22 AWG 7-strand bare copper for optimal conductivity.
• Shielding: 100% coverage aluminum Mylar foil shield with a 24 AWG 7-strand drain wire for fast, clean grounding and termination.
• Versatile Compatibility: Designed for custom cable assemblies with 3-pin or 5-pin XLR connectors.
• Compact Design: Ultra-thin overall outer diameter for clean routing in tight conduit or stage rigs.

Available Configurations:

To accommodate various project environments, the SIRS-E® ProDMX cable comes in two specialized jackets:

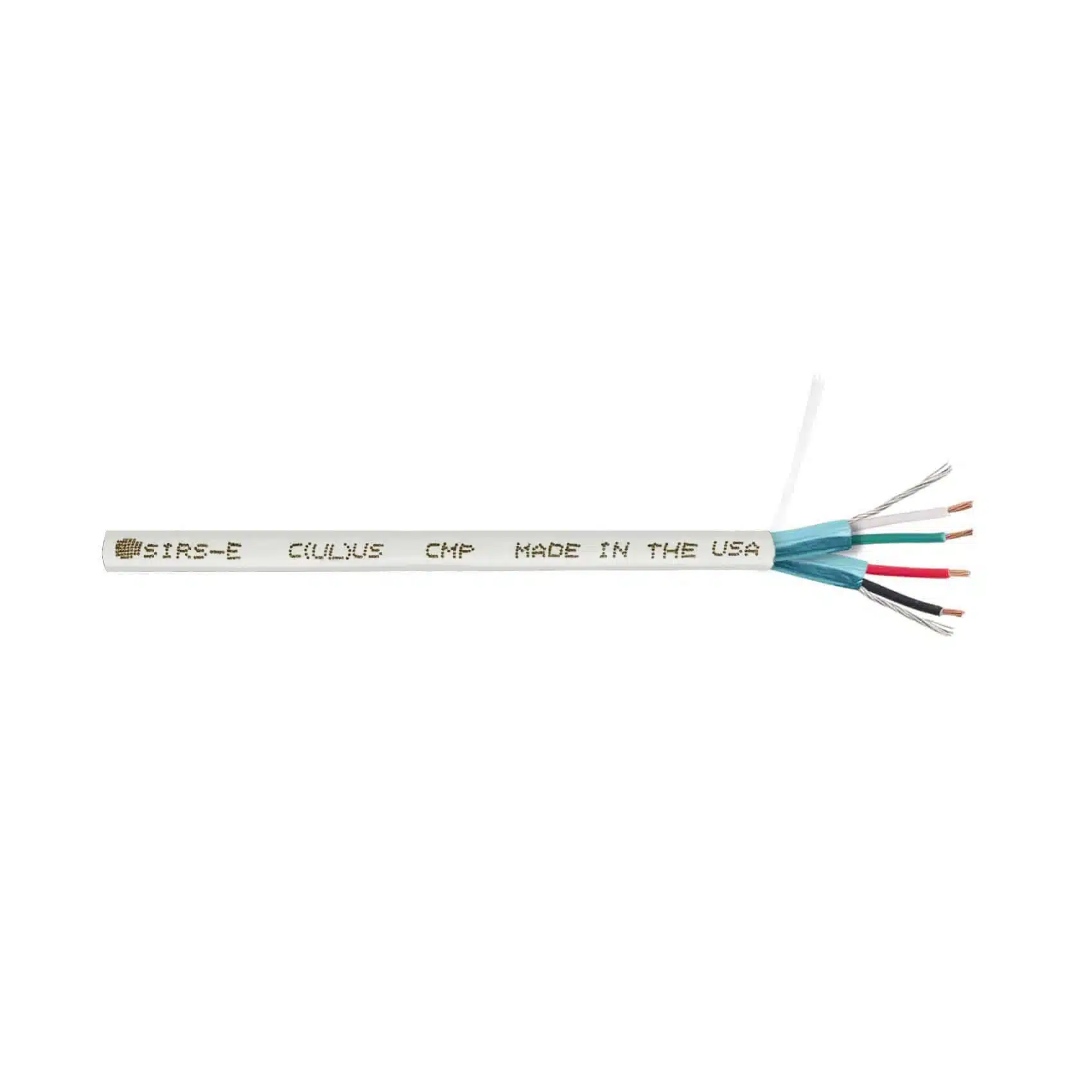

1. Plenum UL Listed (DMX-2PRSP-2260-UL): Meets stringent building codes and fire safety ratings required for drop ceilings, air plenums, and permanent indoor installations.
2. Waterproof IP65 (DMX-4CSNP-2265): Engineered with a durable black or white weather-resistant jacket suited for outdoor architainment, temporary stage setups, and high-humidity environments.

Ideal Applications

Whether you are configuring a venue lighting control system, wiring DMX decoders for LED tape lights, or setting up touring stage rigs, the SIRS-E ProDMX 22 AWG cable delivers consistent, professional photometric and control signals. It is available by the foot or in 500 ft spools to fit both large-scale commercial installations and quick custom patch cable builds.

Technical Specifications

• 120 Ohms Nominal Impedance
• 4 Conductors, 22 AWG 7 Strands
• 1 Drain Wire, 24 AWG 7 Strands
• Bare Copper
• 0.175” (ProDMX-Cab-UL SKU# DMX-2PRSP-2260-UL) and 0.169” (ProDMX-CAB IP65 SKU# DMX-4CSNP-2265) Outside Diameter
• Aluminum Mylar Foil Shielding
• Black PVC Jacket Multi-Conductor
