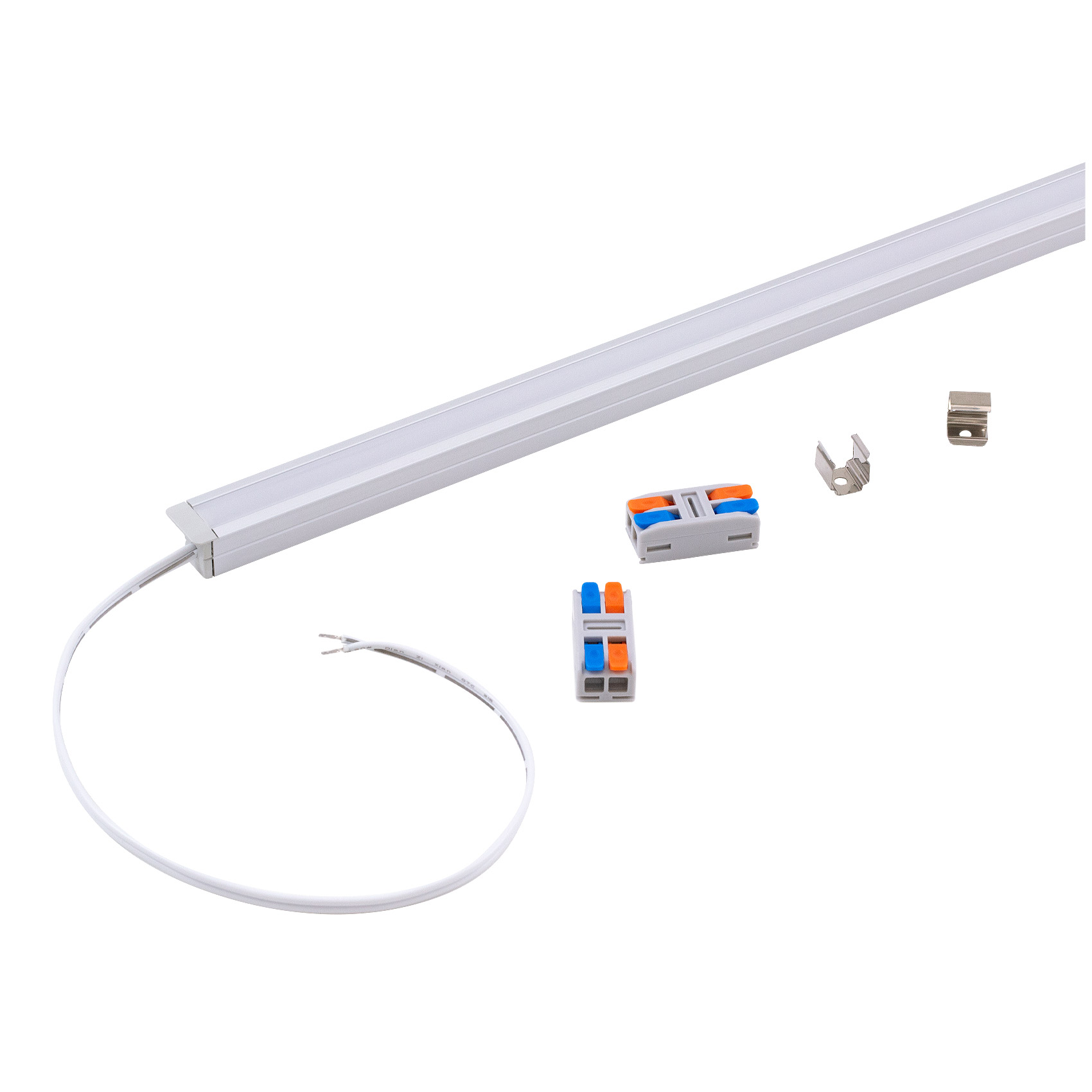

Made in USA AuraCastLED Canyon Vista LED Fixture

SIRS-E

AuraCastLED Canyon Vista

AuraCastLED-CA-24CVXX-40-XX

Made in USA AuraCastLED Canyon Vista LED Fixture

SIRS-E

The AuraCastLED™ Canyon Vista fixture, proudly Assembled in the USA by SIRS-E®, delivers precision-engineered performance in a medium-profile architectural housing. Its balanced 16 mm square form factor and single-side opal diffuser lens provide a clean 44° beam angle—ideal for wall grazing, recessed features, retail displays, and task lighting—while ensuring smooth, shadow-free illumination. Constructed from rugged aluminum for superior heat dissipation and long-term reliability, Canyon Vista includes secure mounting clips and high-amperage connectors that simplify installation and allow continuous runs without visible breaks. Designed for 24 V constant-voltage operation, it integrates seamlessly with most power supplies and dimming controls. Available in 1 m and 2 m lengths (custom sizes available), AuraCastLED™ Canyon Vista offers a durable, versatile lighting solution for residential, retail, and commercial environments requiring refined yet robust illumination.

Documentation
AuraCastLED™ Canyon Vista Datasheet

Categories: , Tags:

Made in USA and UL Listed

*BAA/BABA Compliance: Made in the USA through domestic assembly using globally sourced PCB boards, LED chips, and aluminum channels. Final qualification for BAA/BABA is subject to an approved nonavailability exemption for these imported components (as of March 2025, no domestically produced equivalents are available).

Product Specifications
Input Voltage: 24V DC Length: 3.28 ft or 6.56 ft / 1 or 2 m 2
Limiting Control Method: CV – Constant Voltage Maximum Recommended Length: 16.4 ft / 5 m
Power Consumption: 6 W/ft 19.68 W/m Luminous Flux Maintenance: 75,000 hrs
Beam Angle: 44° Dimming: DMX PWM, RF PWM, 0-10V, Triac, MLV, ELV
Operation Temperature: -20° F to 120° F Environmental: IP 40 (Indoor – Dry)
Mounting Method: Clips Connection Type: Hardwire
Color Rendering Index (CRI): ±95 Pre-Soldered Lead Wire: With Connector 1 ft.
Lumen Output: ~150-230 Lm per ft. (~492-754 per meter) 1  Country of Origin: USA Global Components
Diffuser: Opal lens, other lens would be special order Warranty: 7 Year Limited
Certifications: UL E479339



1 – Varies depending on the Kelvin temperature.
2 – Custom length available.

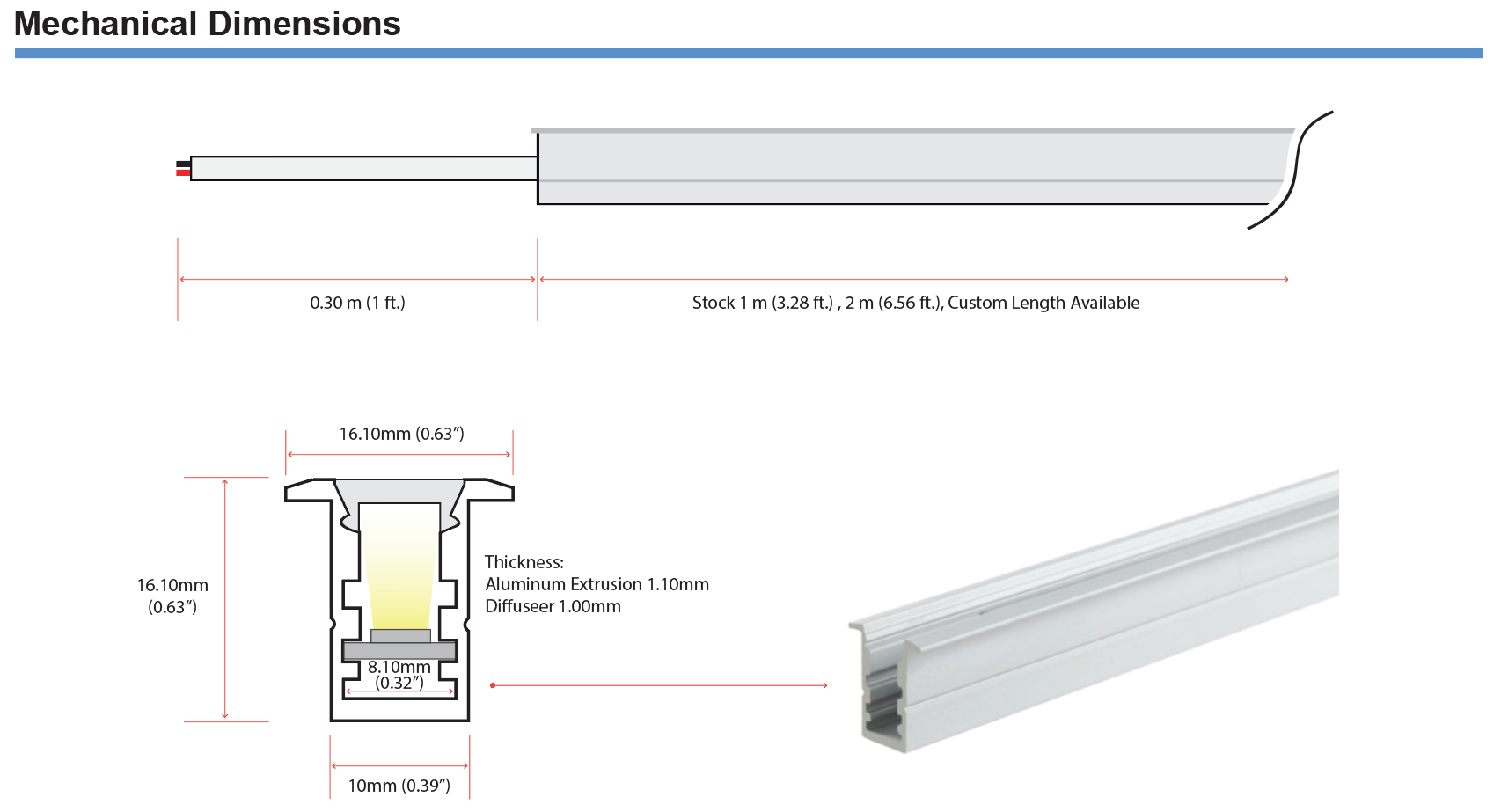

AuraCastLED Canyon Vista Physical Dimension



Made in USA AuraCastLED™ Slim Ray Product Country of Origin
Product Engineering & Design USA
Assembled USA
Quality Control USA
Product Customization USA
Technical Support USA


Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.

Documentation Videos
YouTube Channel


CCT

2700K, 3000K, 4000K, 5000K, 6500K
Length

3.28 ft. (1m), 6.56. ft. (2m), Custom Length
