Designed to control up to 256 DMX channels—upgradeable to 512—it supports a single control zone capable of managing dynamic, precise lighting scenes. The streamlined design allows users to trigger scenes via push buttons or dry contacts, making integration into any system quick and easy.

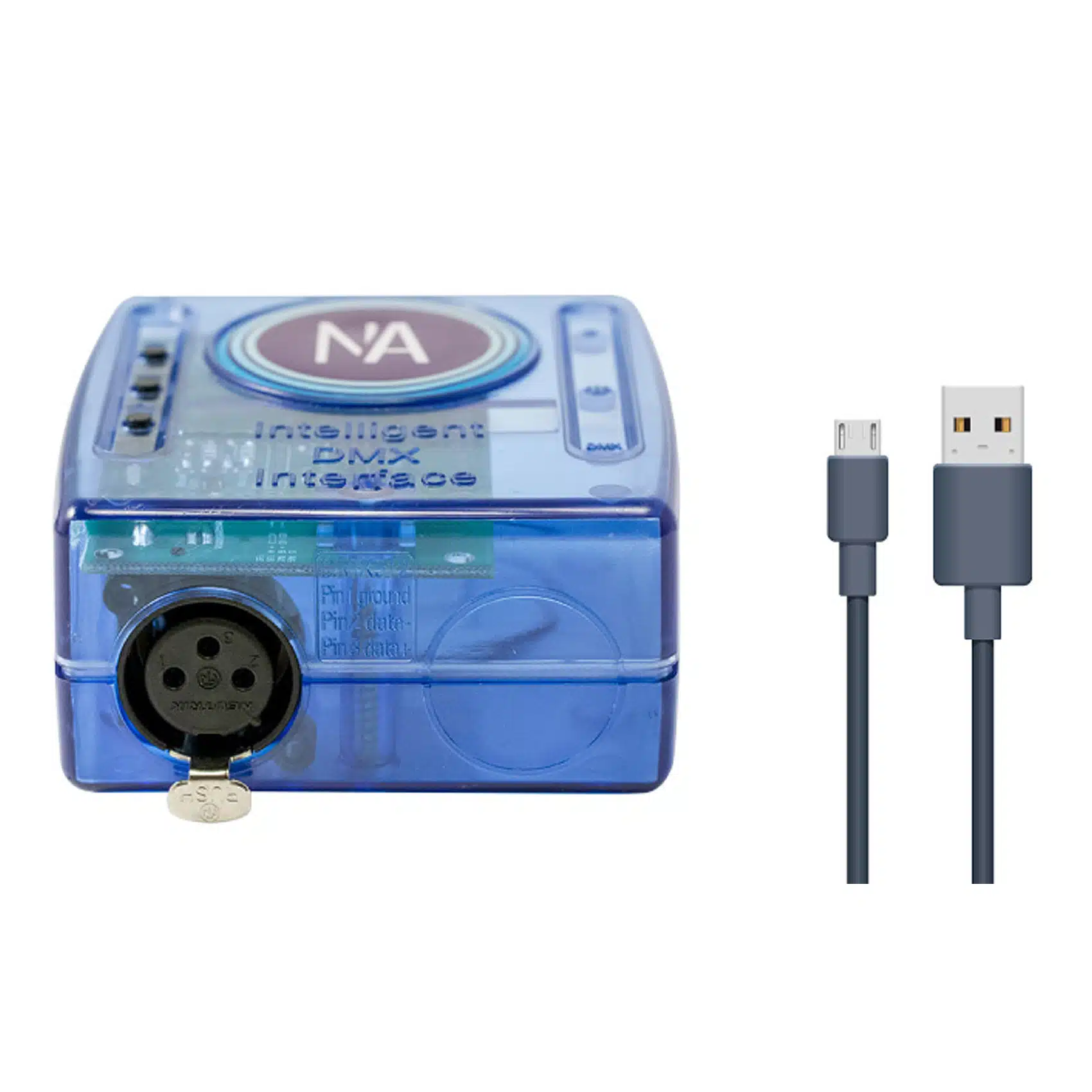

DMX output is provided through a 3-pin XLR socket. For OEMs or integrators seeking flexible hardware configurations, the unit is also available without the XLR connector upon request—an excellent option for custom or embedded lighting control systems.

Compact, rugged, and easy to install, the SLESA-U9 is well-suited for architectural, retail, entertainment, and industrial lighting environments where straightforward DMX control is needed. It offers a dependable and cost-effective solution with a strong balance of performance and value.

Features

• USB connection
• 256 DMX512 channels universe in stand alone *
• 256 DMX512 channels universe in live mode *
• Upgradable to 512 channels online using SUT
• 8 dry contact trigger ports via HE10 connector
• Stand alone mode with 1 area and 20 scenes
• Buttons for changing scenes and dimmer
• OEM customization

Technical Specifications

• Input Power: 5-5.5V DC 0.6A
• Output Protocol: DMX512 256 channels Standalone * 256 channels Live *
• Programmability: PC, Mac

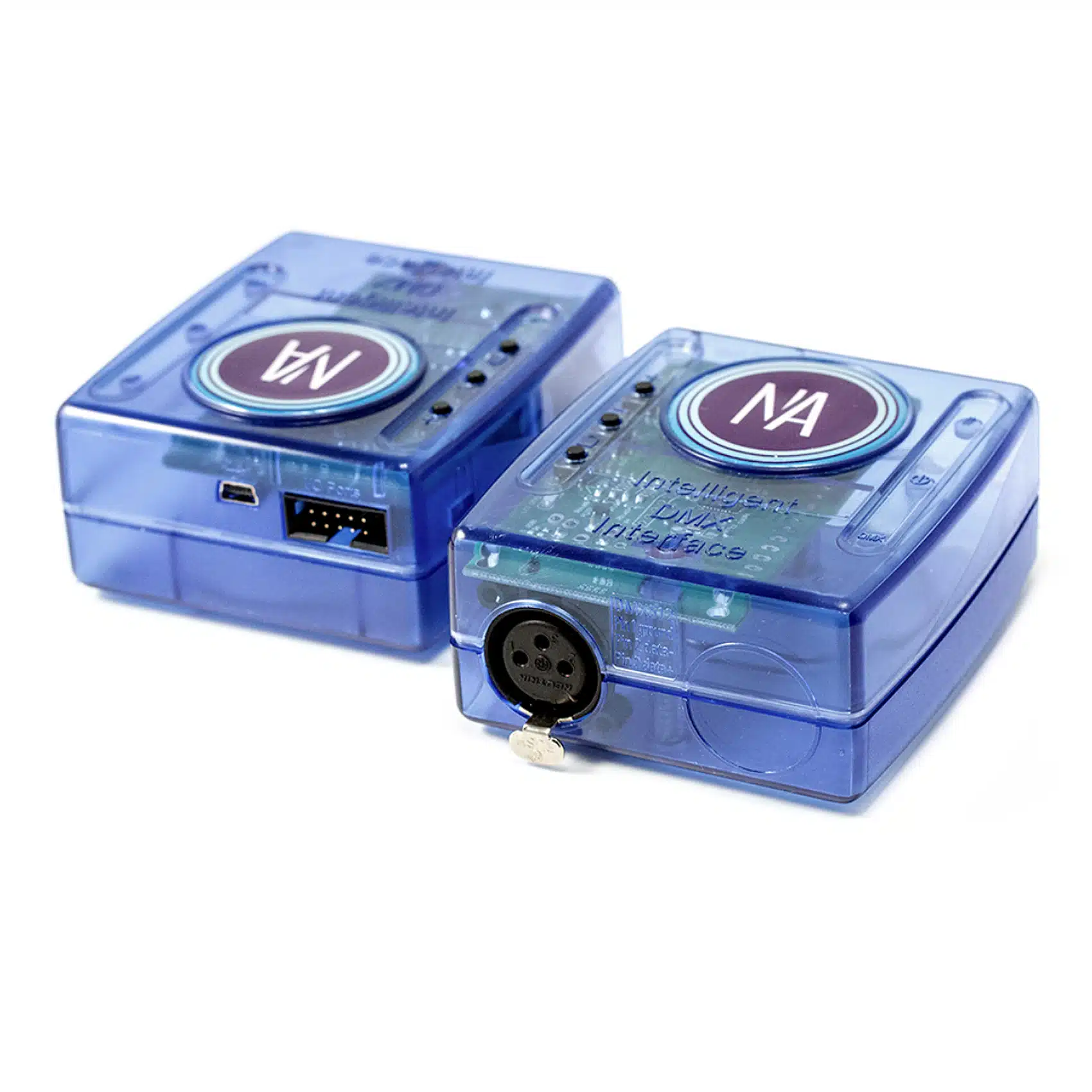

• Connections: Mini USB, XLR3, HE10
• Memory: Internal flash
• Environment: IP20. 0°C – 50°C
• Buttons: 2 buttons to change scene + 1 button to change area
• Dimensions (mm): 79 x 92 x 43
• OS Requirements: Mac OS X 10.13.6+ Windows 10/11
• Standards: EC, EMC, ROHS

Documentation Videos

YouTube Channel

SKU# SLESA-U9
