IA-SW-00500X

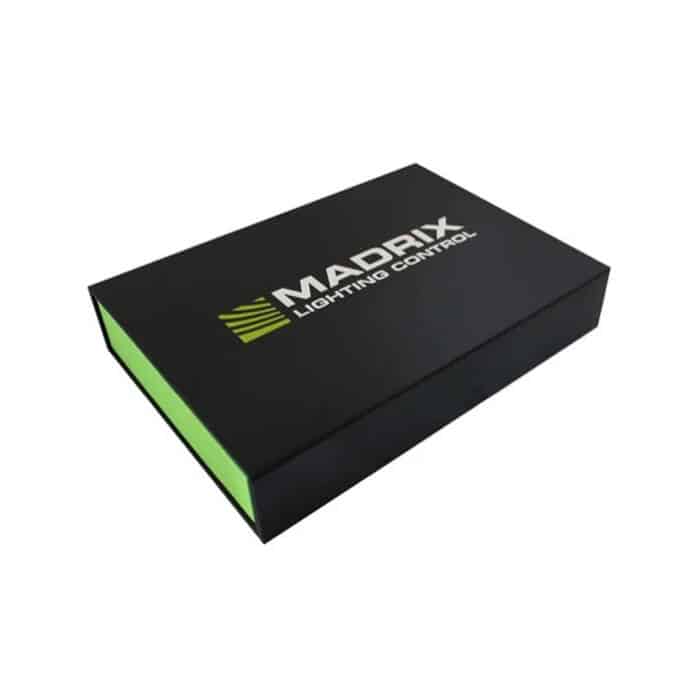

Madrix 5 Software License Key
Madrix Software allows for the most versatile control in LED lighting for use with pixel mapping in both 2D and 3D applications. From a computer or laptop, this software has the ability to create complete LED light shows involving thousands of fixtures to bring your design to life with limitless visual effects and easily adapts to the user’s needs. Applications include LED lighting control, VJ software, 2D pixel mapping, 3D voxel mapping, as a media server, and/or a media creator.
Downloadable Documentation:
| Features | Start | Entry | Basic | Professional | Ultimate | Maximum |
|---|---|---|---|---|---|---|
| Upgradable | ✓ | ✓ | ✓ | ✓ | ✓ | – |
| DMX-Based-Output | ||||||
| DMX Channels | 1,024 | 6,144 | 16,384 | 65,536 | 262,144 | 1,048,576 |
| DMX Universes (Example) | 2 | 12 | 32 | 128 | 512 | 2,048 |
| RGB Voxels (Example) | 341 | 2,048 | 5,641 | 21,845 | 87,381 | 349,525 |
| DVI-Based-Output | ||||||
| DVI Voxels | 16,384 | 16,384 | 1,048,576 | 2,097,152 | 2,097,152 | 2,097,152 |
| Render Resolution (Example) | (128 x 128) | (512 x 512) | (1,024 x 1,024) | (2,048 x 1,024) | (2,048 x 1,024) | (2,048 x 1,024) |
Industry Standards For Output
MADRIX 5 excels in flexibility. You can directly connect to a wide range of LEDs and compatible first-party or third-party LED controllers.
DMX-Based Output
- Art-Net (I, II, 3, 4) (Unicast & Broadcast)
- DMX512
- Color Kinetics
KiNET (V1, V2, V3) - Philips hue
- SPI (via MADRIX NEBULA )
- Streaming ACN (sACN / E1.31) (Unicast & Multicast)
DVI-Based Output
- ColourSmart Link
- Colorlight A8
- Colorlight 5A
- Colorlight T9
- DVI (VGA, HDMI, and more)
- Eurolite T9
Even more options are available via converters or bridging tools. Output is defined through our MADRIX 5 KEY dongle licenses.
Industry Standards For Input, Interoperability, Remote Control, And Audio
MADRIX 5 easily integrates with other lighting desks, consoles, controllers, and many other hardware or software tools.
- Art-Net (I, II, 3, 4)
- ASIO
- Blackmagic Design (DeckLink, Intensity, and more)
- CAST Software BlackTrax (via MADRIX Script)
- CITP
- DMX512
- GamePort
- MA-Net 1 / MA-Net 2
- MADRIX I/O
- MADRIX ORION
- Media (Images, Pictures, Logos, Videos, Text, Live-Signal Capturing, Screen Capturing)
- MIDI
- NewTek NDI (Send & Receive)
- Remote HTTP (Web Server)
- Spout (Send & Receive)
- Streaming ACN (sACN / E1.31)
- Time Code
(Art-Net / MIDI / SMPTE / System Time) - WDM
Even more options are available via converters or bridging tools. Input is not limited by the MADRIX 5 KEY license system.
Supported Operating Systems
MADRIX 5 is Windows-based.
- Microsoft Windows 10
- Microsoft Windows 11
- 64 bit only
Minimum System Requirements
Optimal Specifications Will Often Be Higher:
- 2.0 GHz dual-core CPU
- OpenGL 2.1 graphics card
- 2 GB RAM
- 1 GB free harddisk space
- 1280 x 768 screen resolution
- Network card
- Sound card
- USB 2.0
Additional Minimum Requirements For Windows 11:
- 4 GB RAM
- DirectX12 graphics card with WDDM 2.0 driver (incl. OpenGL 2.1)
- TPM 2.0
- UEFI incl. Secure Boot
- 9″ display
SKU# IA-SW-00500X
| License Type | Start, DVI Start, Entry, DVI Entry, Basic, DVI, Professional, Ultimate, Maximum |
|---|
What is MADRIX 5 software used for?
The Madrix License Key functions as professional software that controls LED lighting through its pixel mapping capabilities and dynamic light show features. The software serves the following purposes:
- 2D and 3D pixel mapping
- LED installations
- Live events and stage lighting
- Media server applications
- Creative visual effects and animations
Can MADRIX 5 control large LED installations?
Yes. The design of MADRIX 5 accommodates both small projects and extensive LED systems that include thousands of lighting fixtures. The licensing system enables you to select the appropriate project size based on your requirements, which includes different channel and universe options.
What lighting protocols does MADRIX 5 support?
MADRIX 5 supports a wide range of industry-standard protocols, including:
- Art-Net
- DMX512
- sACN / E1.31
- KiNET
- Philips Hue
- DVI-based output solutions
This makes it compatible with many popular LED controllers and lighting systems.
Which operating systems work with the Madrix License Key?
MADRIX 5 is designed for Windows systems and supports:
- Windows 10
- Windows 11
- 64-bit systems only
For optimal performance in bigger lighting projects, users should aim for advanced hardware requirements.
Is MADRIX 5 suitable for beginners?
Yes. Madrix License Key provides beginners with basic functionalities while delivering advanced professional tools. The software user base can operate it for basic LED control systems or advanced synchronized light displays based on their level of expertise and required project functionality.
