Features
- SPI Converter & Direct Connection – Directly connect to a wide range of supported LEDs via two 4-pin screw terminals. A signal frequency of up to 24 MHz is available. Supply power over USB or 5 V to 24 V over a 2-pin screw terminal.
- Quality Output Of 12 Universes – Each device drives up to 2,040 RGB pixels while ensuring responsive delivery of high-quality signals to each individual LED. You can choose the output protocol separately for each of the two ports.
- Art-Net / Streaming ACN / USB – Network data is directly converted to SPI without the need for an additional interface. Reliably distribute data from any compatible software or hardware controller. In addition, simply connect to MADRIX 5 over USB.
- Sync Mode & Daisy-Chain Support – MADRIX 5 and MADRIX hardware allow you to fully synchronize Art-Net data for all ports and across devices to get an optimal image on the LEDs without visual interruptions. 2 Ethernet ports allow linearly daisy-chaining several devices together.
- Designed For DIN Rails Or Walls – Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting. 9 indicators quickly show the device status with the option to turn them off.
- Invaluable Features – The device is ready within seconds after startup. HTP merging is automatically available for two Ethernet sources. Its firmware can be updated for future enhancements. Access and change specific device settings using the built-in web configuration page.
Connectivity:
- 2x OUT (via pluggable screw terminals)
- 2x RJ45 Ethernet ports
- 1x USB port
- 1x Power (via pluggable screw terminal)
Supported LEDs:
APA101, APA102, APA104, APA106, FW1935, GS8206, GS8207, GS8208, GW6201, GW6205, LB1908, LPD1882S, LPD6803, LPD8806, MBI6024, MBI6120, MY9291, P9883, SJ1221, SK6112, SK6805, SK6812, SK6813, SK6822, SK9816, SK9822, SK9826, SM16703, SM16704, SM16716, TLC5973, TLS3001, TLS3008, TM1803, TM1804, TM1809, TM1812, TM1814, TM1829, TM1934, UCS512B3, UCS1903, UCS2603, UCS2903, UCS2904, UCS2904B, UCS5603, UCS5603A, UCS7604, UCS8903, UCS8904, UCS9812S, VS17822, WS2801, WS2803, WS2811, WS2811F, WS2811M, WS2811S, WS2812, WS2812B, WS2812C, WS2813, WS2814, WS2814F, WS2815, WS2818, WS2818M, WS2821, WS2821 Addressing, WS2822S, WS2822S Addressing.
*As of May 2024. Additional LED types will be supported with future firmware updates. Multiple frequencies are often available per type.
| Technical Specifications |
| Supply Of Power |
DC 5 V – 24 V; over A) 2-pin, pluggable screw terminal (12 A max.), B) 5 V USB, C) Port 1 or 2 sourced from LEDs; 6 A max. load per port when supplying through to LEDs |
| Power Consumption |
< 1.5 W (300 mA) during normal operation (500 mA max. fused) |
| Network Protocols |
Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31) |
| Data Output |
Firmware ≤ 5.XX: 8x 512 channels SPI TTL (Max. output per port: 680 RGB LEDs / 512 RGBW LEDs / 2,048 1-channel LEDs) Firmware ≥ 6.00: 12x 512 channels SPI TTL (Max. output per port: 1,020 RGB LEDs / 768 RGBW LEDs / 3,072 1-channel LEDs) |
| Ports |
2x ports (Via 2x 4-pin, pluggable screw terminals) |
| Ethernet |
2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s) |
| Ethernet Switch |
Lookup Table (ALU) for 1,024 unicast MAC addresses |
| USB |
1x port, USB 2.0, type-B female socket |
| Handling |
5 status LEDs (+ 4 network status LEDs) |
| Case |
Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting |

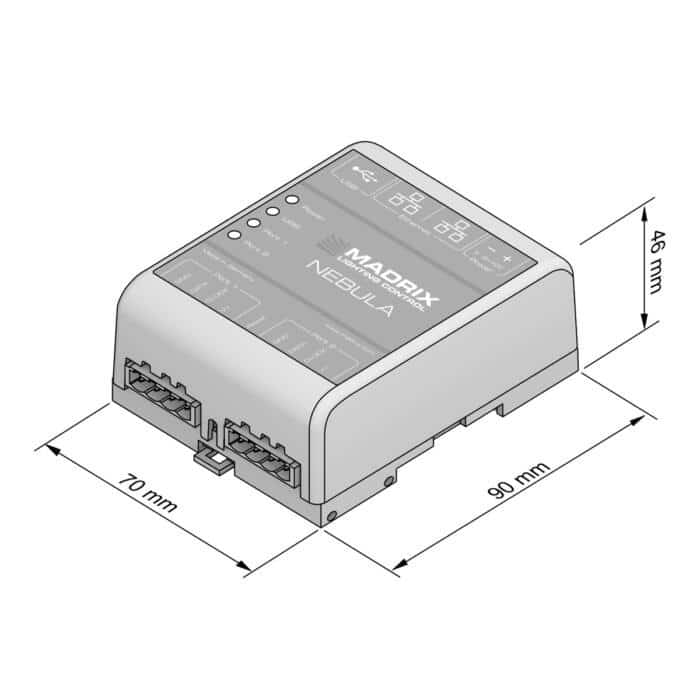

| Dimensions |
90 mm × 70 mm × 46 mm (3.54˝ × 2.76˝ × 1.81˝) (Length × Width × Height) |
| Weight |
110 g (0.24 lb) | 132 g (0.29 lb) incl. screw terminals and wall mounts |
| Temperature Range |
-10 °C to 70 °C (14 °F to 158 °F) (Operating) | -20 °C to 85 °C (-4 °F to 185 °F) (Storage) |
| Relative Humidity |
5 % to 80 %, non-condensing (Operating / Storage) |
| IP Rating |
IP20 |
| Certificates |
CE, EAC, FCC, RoHS |
Package Contents:
1x MADRIX NEBULA
1x Set of pluggable screw terminals (2x 4-pin and 1x 2-pin)
1x USB 2.0 cable (certified)
2x Wall-mount brackets
1x Technical manual / quick start guide
SKU# IA-HW-001018
