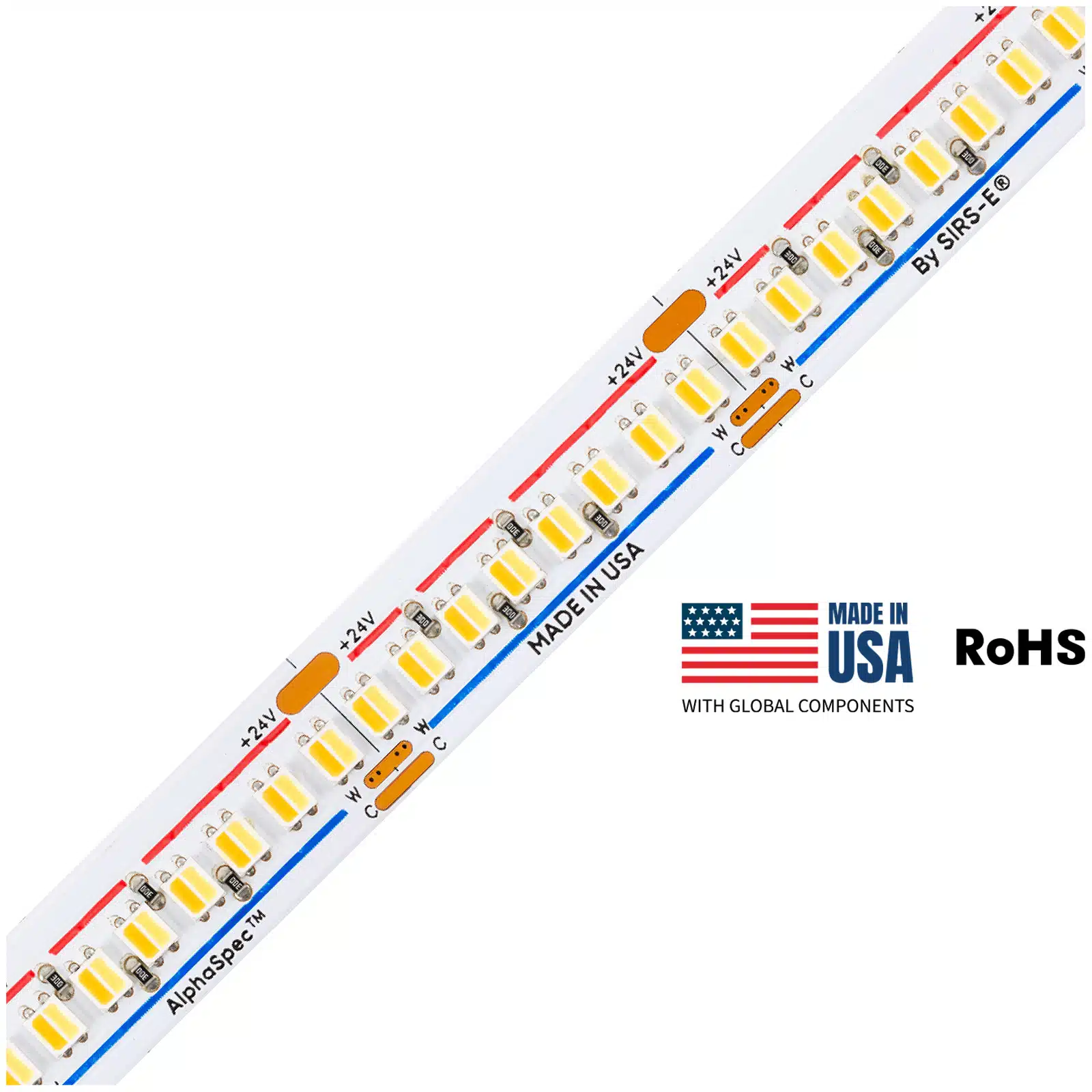

AlphaSpec™ Tunable White 240 Made in USA

AlphaSpec-TW-24-CV-2265-XXXX-240

AlphaSpec™ Tunable White 240 Made in USA

The AlphaSpec™ Tunable White LED Strip is a professional-grade lighting solution designed for precise color tuning and exceptional light quality. Made in the USA, it offers seamless, flicker-free adjustment of color temperature from 2200 K to 6500 K, providing full control of ambience and functionality for architectural, commercial, and residential spaces. With 240 LEDs per meter, AlphaSpec™ Tunable White delivers smooth, uniform illumination without hotspots. Its 12 mm PCB ensures excellent thermal stability and consistent performance under demanding conditions. A high CRI of 95+ guarantees accurate color rendering, making it ideal for environments where visual fidelity matters. Operating on 24 V DC constant voltage and available in IP40 or IP67 versions, AlphaSpec™ Tunable White adapts easily to a wide range of applications. RoHS certified and assembled in Texas, it reflects dependable American craftsmanship and engineering, offering a perfect balance of performance, tunability, and reliability.

Documentation
AlphaSpec™ Tunable White – Datasheet

All photometric and electrical data for SIRS-E® and our ODM LED Tape are measured in compliance with IES LM–79–24 and ANSI C82.77:2002. Our colorimetric data follow IES TM–30–24, CIE 013.3–1995, CIE 15:2018, and the chromaticity specifications of ANSI C78.377–2024. Lifetime and lumen maintenance data are tested in accordance with ANSI/IES LM–80–21. Where applicable, SDCM (Small Deviation of Color Matching), also referred to as the MacAdam ellipse, is used to define color consistency, referencing Specification of Small Chromaticity Differences by David L. MacAdam.

RoHS and USA Global Components

*BAA/BABA Compliance: Made in the USA through domestic assembly using globally sourced PCB boards and LED chips. Final qualification for BAA/BABA is subject to an approved nonavailability exemption for these imported components (as of March 2025, no domestically produced equivalents are available).

Product Specifications
Input Voltage: 24V DC Cuttable Segments: 33 mm (1.32″)
Limiting Control Method: CV – Constant Voltage LED Strip Length: 16.4 – 100 ft Spool
Power Consumption: 11.8 W/ft. Tape Width: 12mm (0.50″)
LED Type: 2835 ChromaSure™  TM21 (LM80): 50,000 hrs1
LED Density: 240 LEDs/m Environmental: IP 40 (Indoor – Dry) / IP 67 (Water Resistant)
Board Type / Color: 4 oz Copper, White PCB Connection Type: Hardwire
Beam Angle (Degree): 120° Pre-Soldered Lead Wire: 12″ White Cable
Operation Temperature: -20° F to 120° F Country of Origin: USA Global Components
Mounting Method: Non-Phorous 3M 5952 VHM Warranty: 3 year
Color Rendering Index (CRI): 95+ Certifications: RoHS

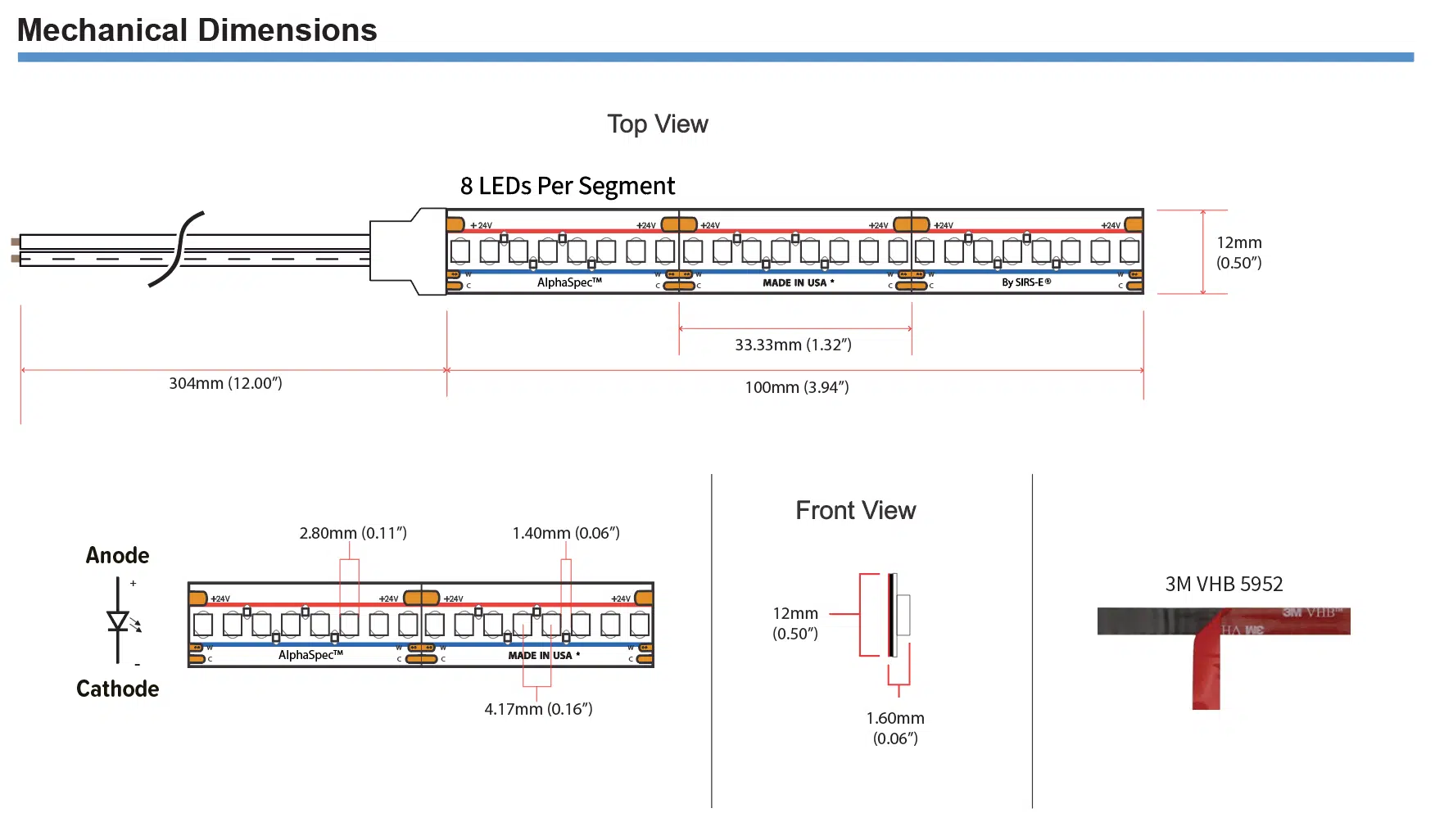

  AlphaSpec Tunable White Dimensions

Electrical Photometrics
Nominal CCT (K) Luminous Flux (lm/ft) Luminous Efficacy (lm/W) CRI Max Run Power Consumption (W/ft)
2200 K 373 68 95+ 32′ (10m) 5.5
4000 K2 750 64 95+ 32′ (10m) 11.8
6500 K 436 81 95+ 32′ (10m) 5.35


1 – After 50,000 hrs: 20% Luminous Flux loss, 10% Chromaticity change, as per LM80-15.
2 – Both channels on at full intensity.

Made in USA AlphaSpec™ Tunable White Product Country of Origin
Product Engineering & Design USA
Assembled USA
Quality Control USA
Product Customization USA
Technical Support USA



Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.

Documentation Videos
YouTube Channel


Length

16.4 ft / 5m, 100 ft / 30m

IP Rating

IP 40 – Dry / Indoor, IP67 Water Resistant
