Made in USA AuraCastLED™ Slim Ray LED Fixture

SIRS-E

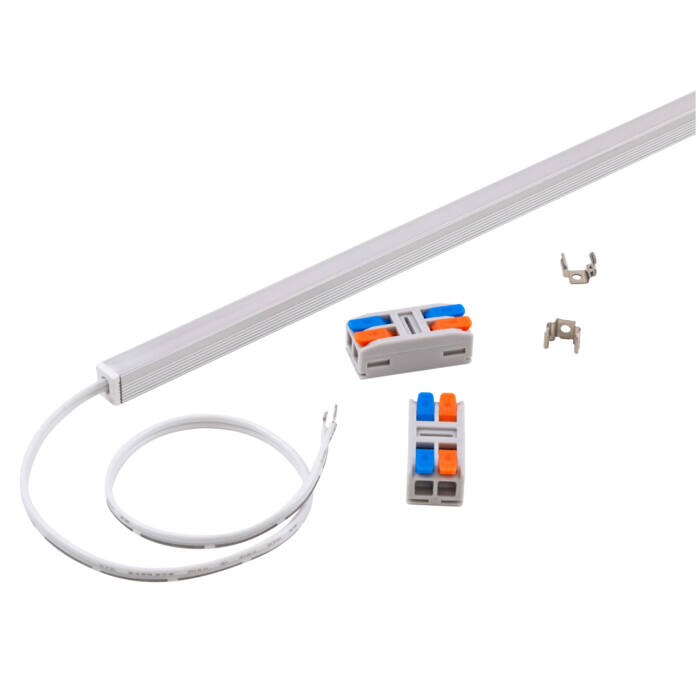

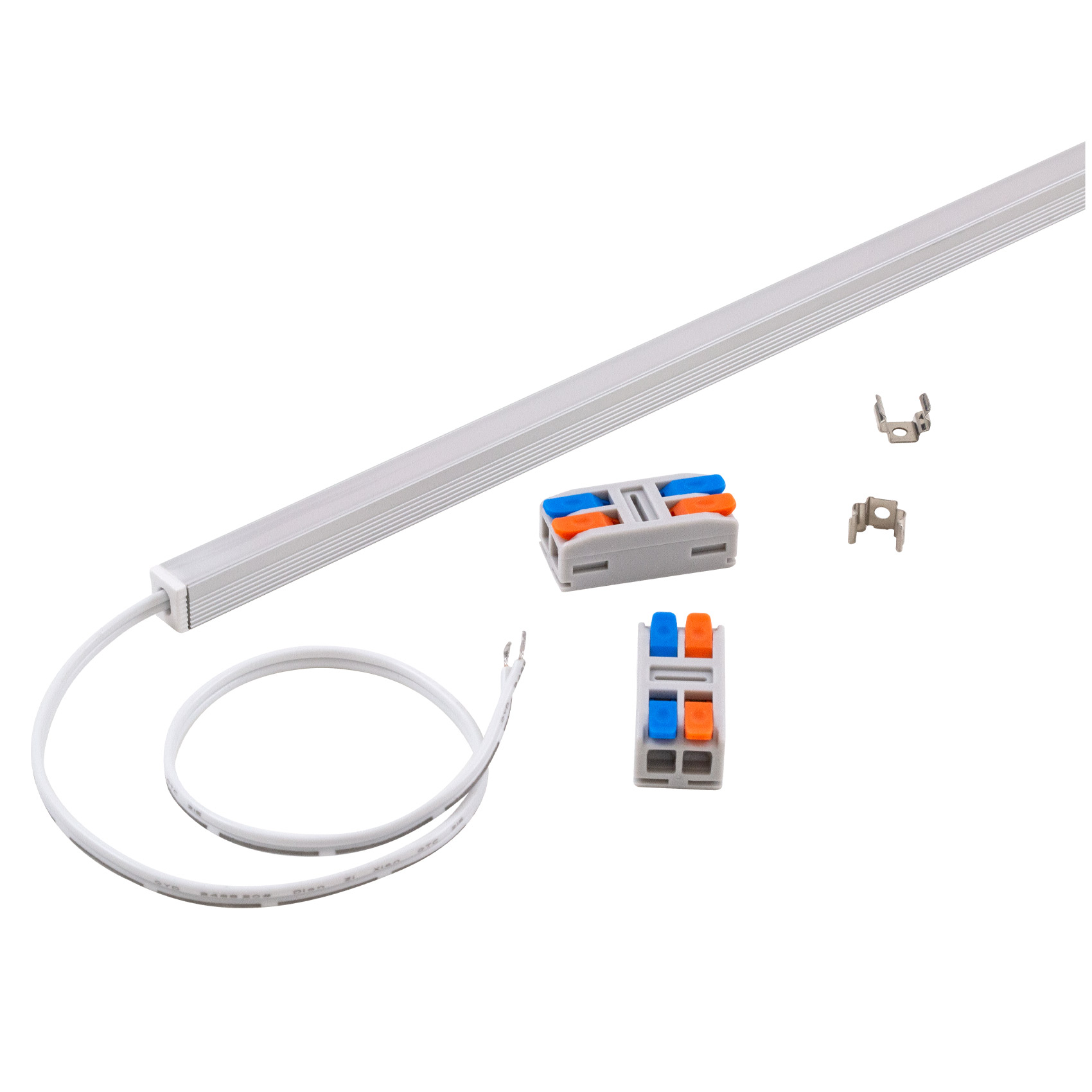

AuraCastLED™ Slim Ray Product Image

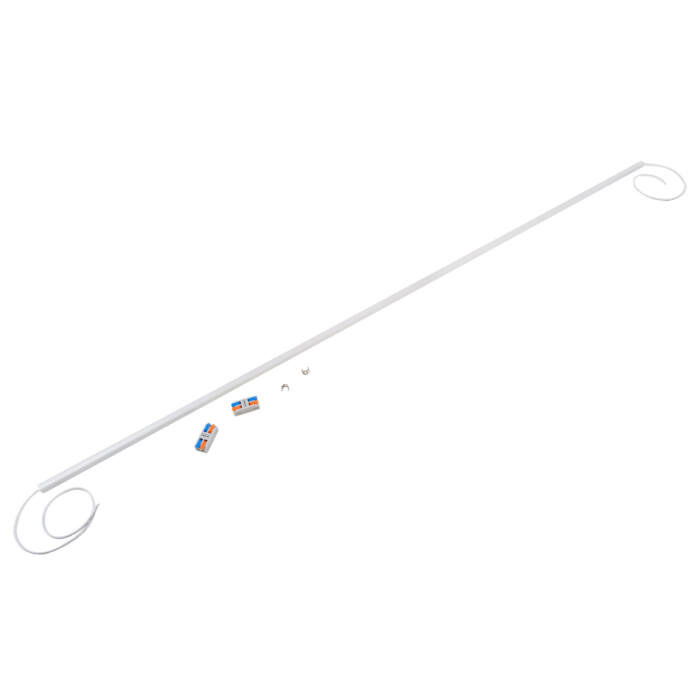

AuraCastLED™ Slim full image

AuraCastLED-SL-24CVXX-40XX

Made in USA AuraCastLED™ Slim Ray LED Fixture

SIRS-E

The AuraCastLED™ Slim Ray fixture, proudly Assembled in the USA by SIRS‑E®, brings precision‑engineered performance to tight‑profile architectural lighting. Its ultra‑slim rectangular housing and single‑side opal diffuser lens deliver a precise 57° beam angle—ideal for accenting walls, display cases, and task areas—while maintaining clean, shadow‑free light.

Constructed from rugged aluminum for optimal heat dissipation and longevity, Slim Ray includes low‑profile mounting clips and high‑amperage connectors that streamline installation and support continuous runs with no visible gaps. Operating on a 24 V constant‑voltage system, it integrates seamlessly with most power supplies and dimming controls. Available in 1 m and 2 m lengths (custom sizes available), AuraCastLED™ Slim Ray provides a discreet, high‑precision lighting solution for residential, retail, and commercial environments where space is at a premium.

Documentation
AuraCastLED™ Slim Ray Datasheet

Categories: , Tags:

Made in USA and UL Listed

*BAA/BABA Compliance: Made in the USA through domestic assembly using globally sourced PCB boards, LED chips, and aluminum channels. Final qualification for BAA/BABA is subject to an approved nonavailability exemption for these imported components (as of March 2025, no domestically produced equivalents are available).

Product Specifications
Input Voltage: 24V DC Length: 3.28 ft or 6.56 ft / 1 or 2 m 2
Limiting Control Method: CV – Constant Voltage Maximum Recommended Length: 32.8 ft / 10 m
Power Consumption: 6 W/ft 19.68 W/m Luminous Flux Maintenance: 75,000 hrs
Beam Angle: 57.5° Dimming: DMX PWM, RF PWM, 0-10V, Triac, MLV, ELV
Operation Temperature: -20° F to 120° F Environmental: IP 40 (Indoor – Dry) / IP 67 (Dust – Water Resistant)
Mounting Method: Clips Connection Type: Hardwire
Color Rendering Index (CRI): ±95 Pre-Soldered Lead Wire: With Connector 1 ft.
Lumen Output: ~251-335 Lm per ft. (~825-1101 per meter) 1  Country of Origin: USA Global Components
Diffuser: Opal lens, other lens would be special order Warranty: 3 Year Limited, 1 Year Outdoor
Certifications: UL E479339



1 – Varies depending on the Kelvin temperature.
2 – Custom length available.

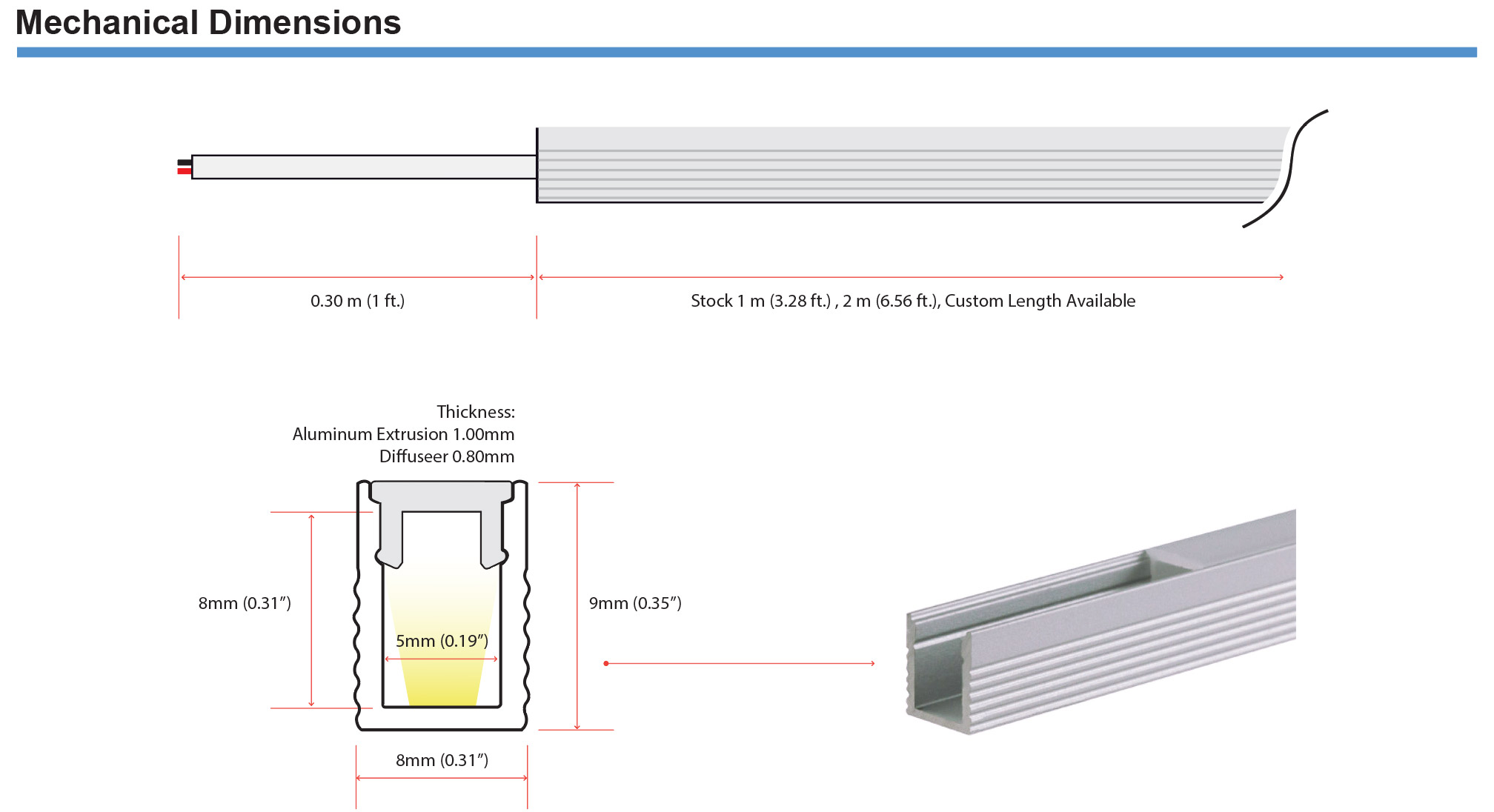

AuraCastLED Slim Ray Mechanical Dimensions



Made in USA AuraCastLED™ Slim Ray Product Country of Origin
Product Engineering & Design USA
Assembled USA
Quality Control USA
Product Customization USA
Technical Support USA


Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.

Documentation Videos
YouTube Channel


CCT

2700K, 3000K, 4000K, 5000K, 6500K
Length

3.28 ft. (1m), 6.56. ft. (2m), Custom Length
