Made in USA AuraCastLED™ Dual Edge LED Fixture

AuraCastLED-DE-24CVXX-40XX

Made in USA AuraCastLED™ Dual Edge LED Fixture

The AuraCastLED™ Dual Edge fixture, proudly Assembled in the USA by SIRS‑E®, is part of our precision‑engineered architectural lighting series designed for clean, professional-grade installations. Its long, slim rectangular profile features opal diffuser lenses on both sides, delivering a 160° beam angle—wider than the 120° of typical LED strips—for balanced illumination in cove, valance, shelf, and accent lighting applications. The rugged aluminum housing ensures thermal stability and long‑term performance, while included spring‑steel mounting clips and high‑amperage connectors simplify installation and allow seamless end‑to‑end runs with no visible breaks. Dual Edge operates on a 24 V constant‑voltage system and integrates with a broad range of power supplies, dimming controls, and power architectures. Available in standard 1 m and 2 m lengths (custom sizes available), AuraCastLED™ Dual Edge offers versatile, modern lighting solutions for residential, retail, and commercial spaces seeking uniform coverage.

Documentation
AuraCastLED™ Dual Edge Datasheet

Made in USA and UL Listed

*BAA/BABA Compliance: Made in the USA through domestic assembly using globally sourced PCB boards, LED chips, and aluminum channels. Final qualification for BAA/BABA is subject to an approved nonavailability exemption for these imported components (as of March 2025, no domestically produced equivalents are available).

Product Specifications

Input Voltage: 24V DC Length: 3.28 ft or 6.56 ft / 1 or 2 m 2
Limiting Control Method: CV – Constant Voltage Maximum Recommended Length: 32.8 ft / 10 m
Power Consumption: 5.9 W/ft 19.3 W/m Luminous Flux Maintenance: 75,000 hrs
Beam Angle: 160° Dimming: DMX PWM, RF PWM, 0-10V, Triac, MLV, ELV
Operation Temperature: -20° F to 120° F Environmental: IP 40 (Indoor – Dry) / IP 67 (Dust – Water Resistant)
Mounting Method: Clips Connection Type: Hardwire
Color Rendering Index (CRI): ±95 Pre-Soldered Lead Wire: With Connector 1 ft.
Lumen Output: ~462 Lm per ft. (~1516+ per meter) 1  Country of Origin: USA Global Components
Diffuser: Opal lens, other options available Warranty: 3 Year Limited, 1 Year Outdoor
Certifications: UL E479339



1 – Varies depending on the Kelvin temperature.
2 – Custom length available.

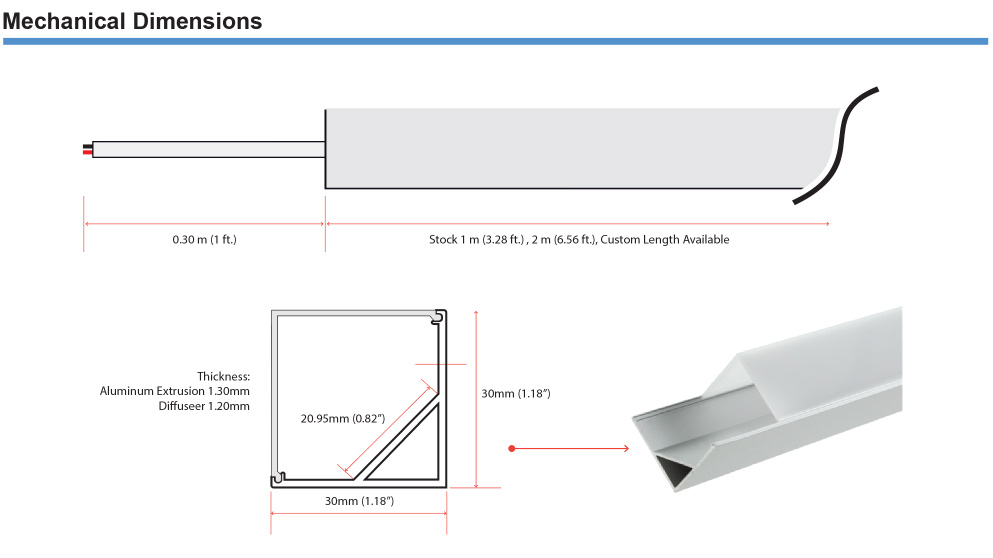

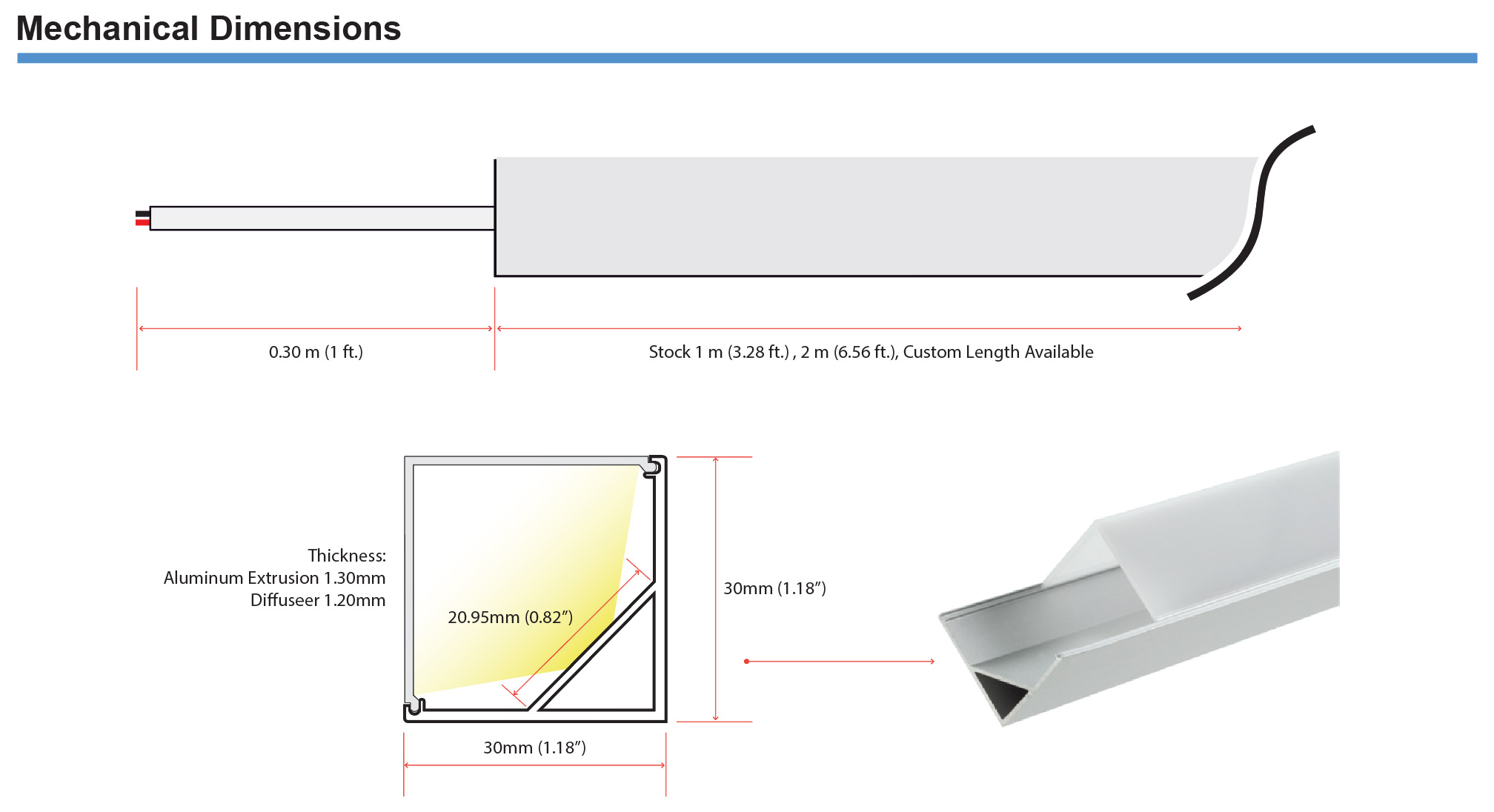

AuraCastLED Dual Edge Mechanical Dimensions



Made in USA AuraCastLED™ Dual Edge Product Country of Origin

Product Engineering & Design USA
Assembled USA
Quality Control USA
Product Customization USA
Technical Support USA


Delivering proven LED strip lighting with no electrical, chromatic, or color rendering issues. Our unwavering focus on stability, efficiency, and performance sets the benchmark in linear LED and lighting control solutions.

Documentation Videos
YouTube Channel


CCT

2700K, 3000K, 4000K, 5000K, 6500K

Length

3.28 ft. (1m), 6.56. ft. (2m), Custom Length
