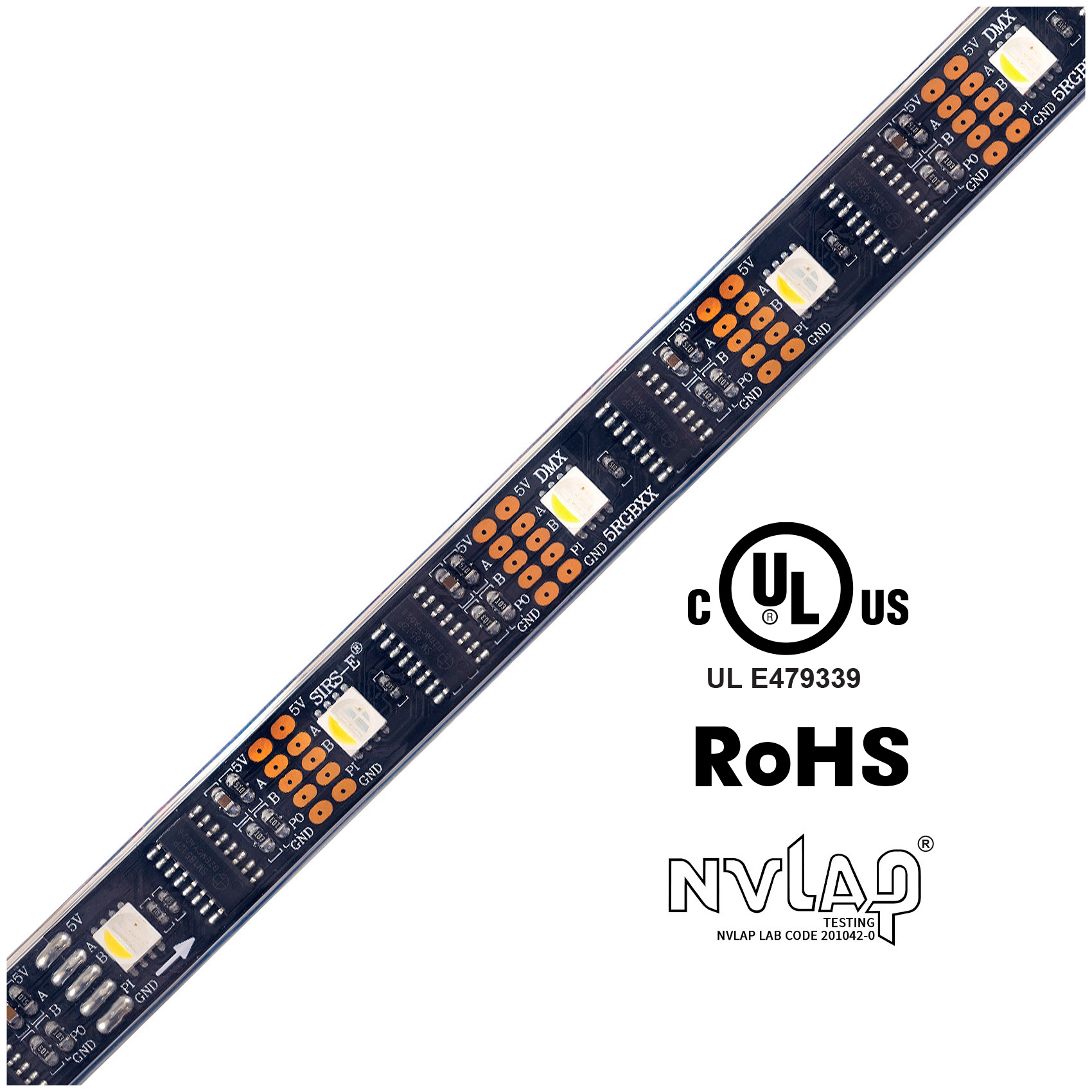

Direct DMX RGBW UL LED Strip Pixel by Pixel Control 2.0

SIRS-E® Direct DMX RGBW LED strip utilizes direct DMX512A signal to control a pixel by pixel programmable flexible tape light via the software of your choosing. The red, green, blue and white (5500K) diodes can be mixed to potentially produce over a billion color rendering options. This model requires 5V power from both ends, is cuttable every LED, and mountable using 3M adhesive tape. 5-pin XLR connector included with every reel.

NVLAP: National Voluntary Laboratory Accreditation Program is a National Institute of Standards and Technology program in the USA which provides an unbiased third-party test and evaluation program to accredit laboratories in their respective fields to the ISO 17025 standard. NVLAP is in compliance with ISO 17011. Wikipedia


Quick Links:

This information complies with the following standards and reports: IES LM-79-2008, ANSI C82.77-10-2014, CIE 13.3-1995, CIE 15-2004, ANSI C78.377-2017, IES TM-30-2018, ANSI/IES LM-80-2021, Specification of Small Chromaticity Differences by David L. MacAdam.
Accessories: DMX Address Writer – DMX-STRIP-PROG2 Quick Guide

Add to Quote List


Input Voltage: 5V DC Cut / Readdress: Cuttable every pixel
Control Method: DMX512 Control – Pixel by Pixel, Auto-addressable Reel Length: 13.1 ft | 4 m
Power Consumption: 3.50 W/ft Max Run Length: 13.1 ft | 4 m, powered from both sides
LED Chip Type: High Quality SMD 4-Diode RGBW Segment Width: IP67/IP68 – 0.56 in | 14 mm
LED Density: 9 LEDs/ft | 32 LEDs/m Luminous Flux Maintenance: 75,000 hrs
Channels / Pixels: 4 Channels per Pixel (512 Channels Total) Dimming: DMX512 Control – Pixel by Pixel
Board Type / Color: 3 oz Density Copper, Black PCB Environmental: IP 67 – Dry, Damp | IP 68 – Damp, Wet
Operating Temperature: -20°F to 120°F Warranty: 5 Year Limited
Mounting: Non-porous; 3M Adhesive Mounting Tape


Product Photometrics – Red, Green, and Blue Diodes

Color Diode Peak Wavelenght (nm) Dominant Wavelenght (nm) CIE (x, y) Luminous Flux (lm/ft) Luminous Efficacy (lm/W)
RED 632.0 nm -493 nm (0.6938, 0.3050) 34 lm/ft 17 lm/W
Green 515 nm 520 nm (0.1351, 0.7104) 91 lm/ft 35.8 lm/W
BLUE 463 nm 468 nm (0.1368, 0.0567) 20 lm/ft 8.2 lm/W


Product Photometrics – White Diodes Only

Nominal CCT (K) Luminous Flux (lm/ft) Luminous Efficacy (lm/W) CIE (x, y) Duv CRI Fidelity (Rf) Gamut (Rg)
5500 K 111 lm/ft 43.6 lm/W (0.3306, 0.3475) +0.0041 82.6 84 95


Product Photometrics – All Four Colors at Full Intensity

Nominal CCT (K) Luminous Flux (lm/ft) Luminous Efficacy (lm/W) CIE (x, y) Duv CRI Fidelity (Rf) Gamut (Rg)
11316 K 240 lm/ft 28.8 lm/W (0.2766, 0.2771) +0.0034 60.5 69 105

Legacy Product

DMX RGBW LED Strip 4 in 1 Direct DMX512A Pixel-by-Pixel Control
5050-5RGBWN-32XX Datasheet
DMX Cable RGBW Color Code
DMX Filter
Legacy SKU# 5050-5RGBWN-32XX


IP67 – Water Resistant, IP68 – Waterproof
