DMX Tester & Terminator 5 Pin XLR

SKU: DMX-TEST-02 Category: Brands: .
Product Inquiry

Free Ground Shipping.

Description

The simple un-expensive DMX Tester and Terminator will allow users to see if a device is properly sending or receiving a DMX Signal.   Also will work as a Terminator and prevents the fast DMX signal from bouncing back down the line and causing flicker and other problems.  It is safe to leave this product connected all the time.

How it Works:

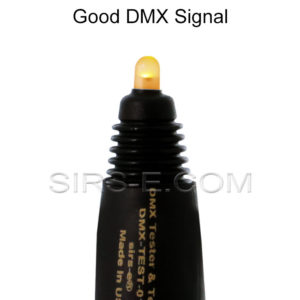

  • Orange/Yellow LED: A orange/yellow LED indicates a good DMX signal.
  • Red LED:  if you see red only then you have DMX signal problem such as inverse polarity.
  • No LED:  If the LED is off then you have pin 2 or 3 cut off.

High Quality Material

  • Bicolor LED Diode
  • Genuine Neutrik XLR Male 3 Pin
  • DMX Adapter 3 Pole Female to 5 Pole Male 70029
  • 120 ohms, 2 W Resistor Non-Flammable

Warranty:  1 Year

Good-DMX-signal-for-web
Bad-DMX-signal-for-web
